Unleash desktop‑class power in a pocket‑size chassis with the ASUS NUC 14 Pro. This ultra‑compact mini PC delivers the speed and responsiveness you expect from a full‑size workstation, while fitting on any desk or behind a monitor. Its AI‑ready architecture means you can run modern workloads without compromise. Experience the next level of performance without sacrificing space.

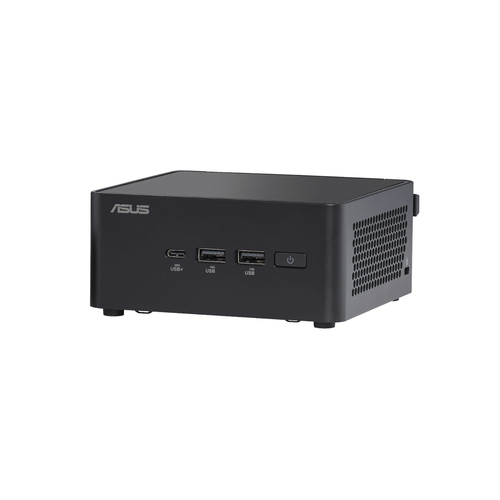

ASUS NUC 14 Pro RNUC14RVHU700002I UCFF Mini PC barebone DDR5 PCI Express
The NUC 14 Pro packs a 16‑core Intel Core Ultra 7 155H processor, combining six performance cores and eight efficient cores for up to 4.8 GHz boost. Paired with dual‑channel DDR5‑5600 MHz memory support (up to 96 GB), it handles multitasking, content creation, and AI inference with ease. Its PCIe 4.0 M.2 slot provides lightning‑fast NVMe storage, while the integrated Intel graphics ensure smooth visual output.
Connectivity is future‑proof: Wi‑Fi 6E (AX211) and Bluetooth 5.3 keep you online and paired without dongles. Two Thunderbolt 4 ports, HDMI 2.1, USB4 Gen 2x2, and multiple USB‑A ports give you the flexibility to attach monitors, external GPUs, and high‑speed peripherals.
The toolless design lets you open the chassis in seconds to upgrade the M.2 SSD or add memory, and the active cooling system maintains quiet operation. With a VESA‑mountable UCFF chassis, Kensington lock slot, and a lightweight 570 g build, the NUC 14 Pro is ready for both office desks and secure installations.
Benefits
- Desktop‑level performance in a 41 mm tall, 570 g mini PC.
- Future‑proof DDR5 memory up to 96 GB for demanding multitasking.
- Integrated Wi‑Fi 6E and Bluetooth 5.3 eliminate the need for external dongles.
- Tool‑less chassis design enables quick upgrades and easy maintenance.
Uses of the product
- Compact office workstations that save desk space.
- Edge AI or inference nodes for real‑time data processing.
- Digital signage, kiosks, and thin‑client deployments.
- Development and testing environments for software engineers.
Features
- Intel Core Ultra 7 155H processor with 16 cores (6P+8E) and 22 threads, up to 4.8 GHz boost.
- Dual‑channel DDR5‑5600 MHz memory support, expandable to 96 GB via two SO‑DIMM slots.
- PCIe 4.0 M.2 NVMe SSD slot, USB4/Thunderbolt 4, HDMI 2.1, and multiple USB‑A ports for high‑speed connectivity.
- Active cooling system, VESA mounting, and Kensington lock slot for secure, quiet operation.
Specifications
| Processor |
| Thermal Design Power (TDP) |
28 W |
| Processor cache |
24 MB |
| Efficient-core boost frequency |
3.8 GHz |
| Performance-core boost frequency |
4.8 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
155H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
| Maximum internal memory |
96 GB |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
5600 MHz |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
SO-DIMM |
| Internal memory installed |
No |
| Storage |
| NVMe |
Yes |
| Storage drive interface |
PCI Express, Serial ATA III |
| Storage drive sizes supported |
2.5,M.2 |
| Supported storage drive types |
SSD |
| Storage drives installed |
No |
| Graphics |
| On-board graphics card model |
Intel Graphics |
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Audio |
| Built-in speaker(s) |
No |
| Network |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Thunderbolt 4 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| USB4 Gen 2x2 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| Design |
| Product type |
Mini PC barebone |
| VESA mounting |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
UCFF |
| Performance |
| Number of processors supported |
1 |
| Software |
| Windows operating systems supported |
Windows 11 |
| Power |
| Power supply |
120 W |
| Power supply type |
External AC adapter |
| Weight & dimensions |
| Weight |
570 g |
| Height |
41 mm |
| Depth |
112 mm |
| Width |
144 mm |
| Packaging content |
| Quick start guide |
Yes |
| Power cord included |
Yes |
