Unleash desktop‑class performance in a pocket‑size chassis with the ASUS NUC 14 Pro Tall Mini PC – the perfect blend of speed, flexibility, and AI‑ready power that lets you work, create, and play without compromise.
ASUS NUC 14 Pro Tall Mini PC, RNUC14RVHU5068C2I, 16 GB 512 GB u5-125H W11Pro
This compact powerhouse packs an Intel Core Ultra 5 125H processor with 14 cores, 16 GB DDR5‑5600 memory, and a fast 512 GB PCIe 4.0 NVMe SSD. Intel Arc graphics deliver crisp visuals, while Wi‑Fi 6E and Bluetooth 5.3 keep you connected. Pre‑installed Windows 11 Pro means you’re ready to go out of the box.

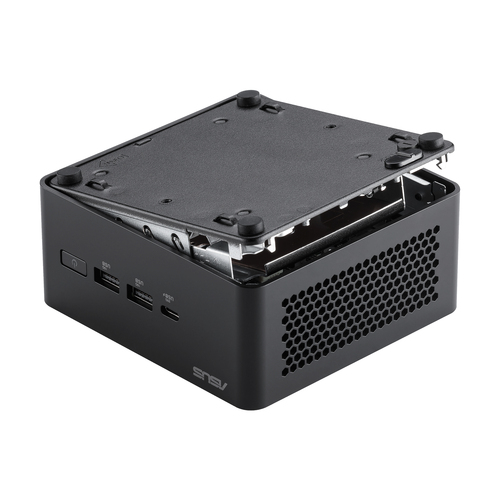

The toolless chassis lets you open the unit in seconds to upgrade the M.2 SSD or add more RAM, and the VESA‑mountable design fits neatly on a monitor arm or behind a TV. Weighing only 600 g, it stays cool with smart cooling and runs on a 120 W power supply.
Whether you’re a developer, a remote worker, or a home entertainment enthusiast, the NUC’s dual HDMI 2.1, two Thunderbolt 4 ports, and multiple USB‑C/‑A connections give you the flexibility to drive multiple displays, fast external storage, and dock your peripherals with ease.
Benefits
- Desktop‑level performance in a space‑saving form factor.
- Future‑proof upgrade path with toolless access to SSD and RAM slots.
- Seamless connectivity via Wi‑Fi 6E, Bluetooth 5.3, and Thunderbolt 4.
- Energy‑efficient operation with a 120 W power supply and low‑power cores.
Uses of the product
- Powerful workstation for software development and data analysis.
- Compact media center for 4K streaming and gaming.
- Secure office PC for remote work and video collaboration.
- Edge computing node for AI‑ready applications and IoT projects.
Features
- Intel Core Ultra 5 125H processor with 14 cores (4 performance, 8 efficient, 2 low‑power) and up to 4.5 GHz turbo speed.
- 16 GB DDR5‑5600 dual‑channel memory, expandable to 96 GB for demanding workloads.
- Integrated Intel Arc graphics and dual HDMI 2.1 ports for high‑resolution multi‑display setups.
- Two Thunderbolt 4 ports, three USB 3.2 Gen 2 Type‑A ports, and a certified Bluetooth dongle‑free experience.
Specifications
| Processor |
| Maximum turbo power |
115 W |
| Processor base power |
28 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
18 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
0.7 GHz |
| Performance-core base frequency |
1.2 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.6 GHz |
| Performance-core Max Turbo Frequency |
4.5 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
4 |
| Processor cores |
14 |
| Processor model |
125H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
96 GB |
| Internal memory |
16 GB |
| Storage |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,1000,2500,100 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 3 ports quantity |
0 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
1 |
| Design |
| Product colour |
Black |
| Number of 2.5" bays |
1 |
| VESA mounting |
Yes |
| Chassis type |
UCFF |
| Performance |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply |
120 W |
| Weight & dimensions |
| Weight |
600 g |
| Height |
54 mm |
| Depth |
112 mm |
| Width |
117 mm |
| Display |
| Display included |
No |
| Other features |
| Maximum internal memory |
96 GB |
