If you are looking for a powerful and reliable industrial PC, you have come to the right place. The Asus PE2000S-N97-WUS, Intel Processor N97, Industrial PC is a top-notch device designed to meet the demands of industrial applications. With its robust design and advanced features, this PC is perfect for use in harsh environments where other devices may fail. Many buyers face the problem of finding a device that can withstand the rigors of industrial use, but with the Asus PE2000S-N97-WUS, you can have peace of mind knowing that your device can handle anything you throw at it. The Asus brand is known for its high-quality products, and this industrial PC is no exception.

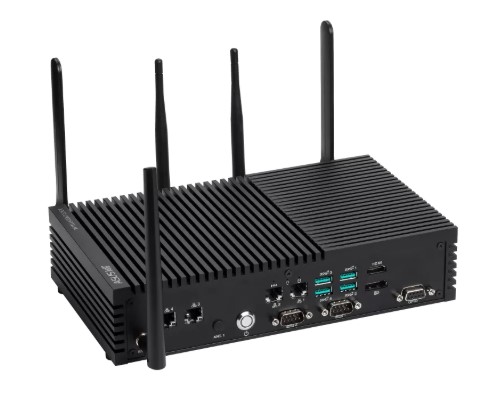

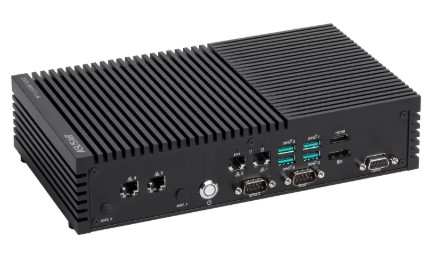

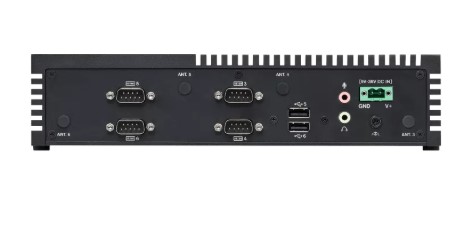

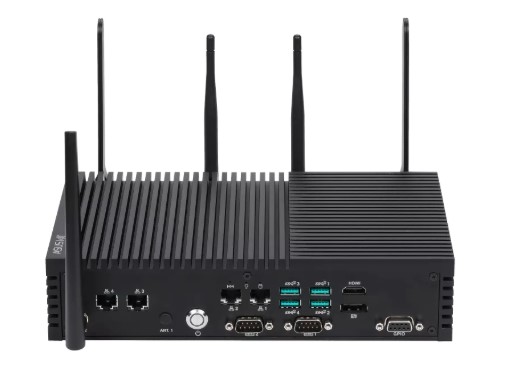

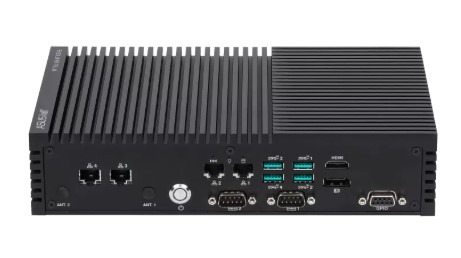

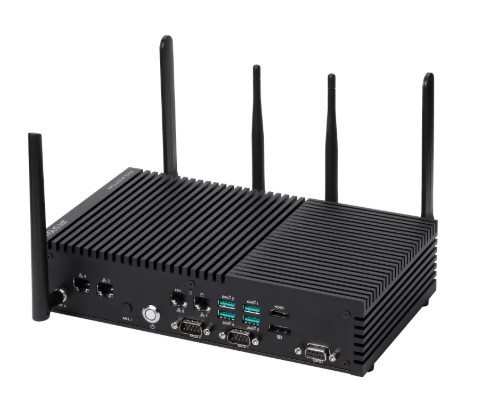

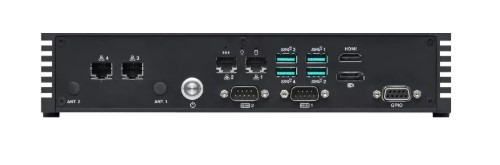

Asus PE2000S-N97-WUS, Intel Processor N97, Industrial PC
This product solves the problem of finding a reliable and powerful industrial PC that can meet the demands of industrial applications. The problem of device failure in harsh environments is a major concern for many buyers, and this device provides a clear solution. With its advanced features and robust design, the Asus PE2000S-N97-WUS is the perfect choice for anyone looking for a high-quality industrial PC. The Intel Processor N97 provides fast and efficient processing, making it ideal for applications that require high performance.
Key Features
- Intel Processor N97 for fast and efficient processing
- 1 x SO DIMM, DDR5 4800 MHz, supports up to 16GB of memory
- 1 x HDMI 2.0, supports up to 4K x 2K @ 60 Hz
- 1 x DP1.2, supports up to 4096 x 2304 @ 60 Hz
- 2 x 10/100/1000 Mbps, RJ45 (2 x Intel i210AT (1Gb)) for reliable networking
- 4 x USB 3.2 Gen 2, type A, 2 x USB 2.0, type A for flexible connectivity
- 1 x Mic-in, phone jack, 1 x Line-out, phone jack for high-quality audio
- 1 x 8bit GPIO, DB9 for customizable control
- 1 x Full-Length Mini PCIe slot with on-board Nano-SIM socket for expanded functionality
- 1 x M.2 2242/2280 M key socket (SATA) for secure storage
- 1 x M.2 2230 E key socket (USB2.0/CNVi mode/PCIe) supports TPU/ WiFi /BT module
Specifications
| General |
|
| Model |
PE2000S-N97-WUS |
| System |
|
| CPU |
Intel® Processor N97 |
| TDP |
12W |
| # of Cores |
4 |
| Core Base Freq. |
2.0 GHz |
| Max Turbo Freq. |
3.6 GHz |
| Memory |
1 x SO DIMM, DDR5 4800 MHz, supports up to 16GB |
| External Interfaces |
|
| Display |
1 x HDMI 2.0, supports up to 4K x 2K @ 60 Hz1 x DP1.2, supports up to 4096 x 2304 @ 60 Hz |
| Ethernet |
2 x 10/100/1000 Mbps, RJ45 (2 x Intel i210AT (1Gb)) |
| USB |
4 x USB 3.2 Gen 2, type A, 2 x USB 2.0, type A |
| Audio |
1 x Mic-in, phone jack, 1 x Line-out, phone jack |
| COM |
2 x COM: RS-232/422/485, DB9 (COM1/COM2)
4 x COM: RS232, DB9 (COM3/COM4/COM5/COM6) |
| GPIO |
1 x 8bit GPIO, DB9 |
| Expansion |
|
| Mini PCIe |
1 x Full-Length Mini PCIe slot with on-board Nano-SIM socket
(support CANbus module, PoE/LAN board, LTE)
|
| M.2 M Key |
1 x M.2 2242/2280 M key socket (SATA) |
| M.2 E Key |
1 x M.2 2230 E key socket (USB2.0/CNVi mode/PCIe) supports TPU/ WiFi /BT module |
| 2.5” SATA |
1 x SATA 6Gb/s connector supports 2.5'' SSD |
| SIM |
1 x nano-SIM slot (on-board) |
| Power |
|
| System Power |
9 to 36 V DC, 2-pin terminal block |
| Mechanical |
|
| Mounting |
Wall mount |
| Dimension |
254 x 147 x 57 mm |
| Weight |
2.45 kg |
| Environment |
|
| Operating Temp. |
0~60℃ with wide temperature parts0~50℃ with commercial temperature parts |
| Storage Temp. |
-40~85°C |
| Relative Humidity |
10 to 95% (non-condensing) |
| EMC |
CE, FCC, BSMI |
| Safety |
CB, CE-LVD, BSMI |
| Vibration |
Operating, MIL-STD-810H, Method 514.8, Category 4
(Truck transportation over US highways);5-500 Hz (Max. 5Grms), 3 Axes
|
| Shock |
Operating, MIL-STD-810H, Method 516.8, Procedure I (40G/11ms) |
| Green |
GA (RoHS) |
| Security |
|
| TPM |
TPM V2.0 powered by Nuvoton NCPT 750 (Optional) |
| Others |
|
| Watch dog timer |
HW WDT Enable (WDT_EN) |
| OS |
Windows® 11 IoT Enterprise / Windows® 10 IoT Enterprise |
