If you are looking to build a powerful computer, you may be struggling to find the right motherboard. A good motherboard is the foundation of any computer, and it can be hard to find one that meets all your needs. The problem is that many motherboards on the market are either too expensive or too basic, and they often lack the features that you need to get the most out of your computer. This is where the ASUS PRIME A620AM-K comes in, a high-quality motherboard that is designed to provide a clear solution to this problem. With its advanced features and powerful performance, this motherboard is the perfect choice for anyone who wants to build a fast and reliable computer.

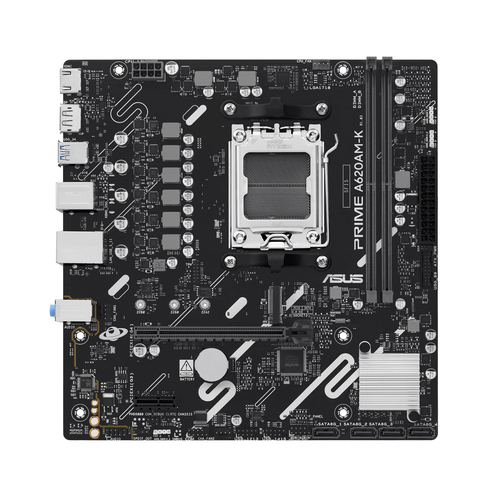

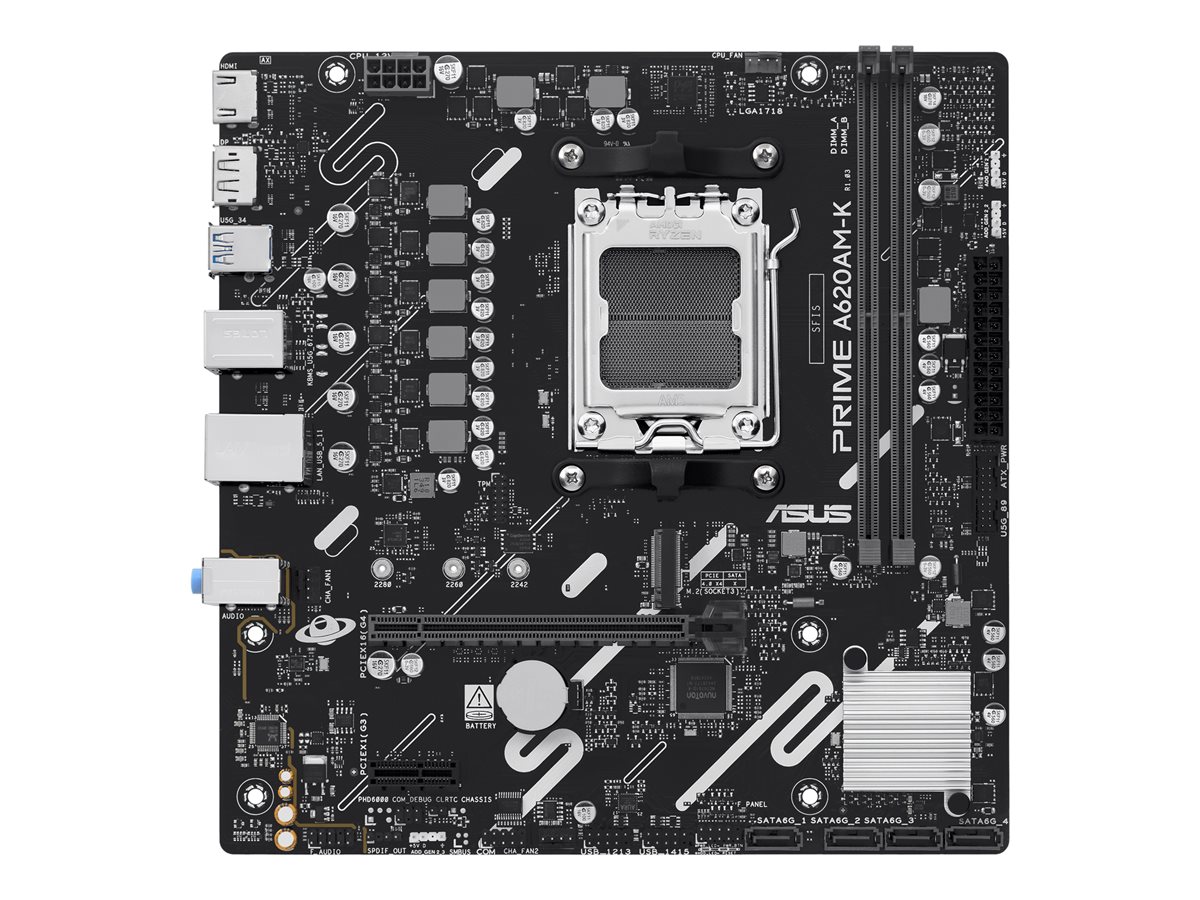

ASUS PRIME A620AM-K, AMD, Socket AM5 DDR5-SDRAM, 128GB Micro-ATX Motherboard with ASUS
Imagine being able to build a computer that can handle anything you throw at it, from gaming and video editing to streaming and more. The ASUS PRIME A620AM-K is a powerful motherboard that is designed to provide the performance and features you need to get the most out of your computer. With its advanced AMD chipset and support for up to 128GB of DDR5 memory, this motherboard is the perfect choice for anyone who wants to build a fast and reliable computer. As an ASUS product, you can trust that it is built to last and will provide you with years of trouble-free service.
Key Features
- Socket AM5 chipset, with support for AMD Ryzen 7000/8000/9000 Series processors
- Up to 128GB of DDR5 memory, with dual-channel memory architecture
- High-performance graphics support, with PCIe 4.0 x16 and PCIe 3.0 x1 slots
- Fast storage devices, including SATA-600 and PCIe 4.0 connectors
- Advanced features, including RAID support and high-definition audio
- Easy to install and set up, with a simple and intuitive design
- Reliable and durable, with a high-quality construction that is built to last
- Gigabit Ethernet and high-definition audio, for fast and reliable networking and sound
- USB 3.2 Gen 1 and USB 2.0 ports, for fast and reliable data transfer
- PS/2 keyboard and mouse ports, for easy connectivity
- Audio line-out, headphones, and microphone ports, for high-quality sound
Specifications
| Miscellaneous |
|
| Product Type |
Motherboard |
| Width |
8.9 in |
| Software Included |
Armoury Crate, WinRAR, Norton 360 Deluxe (60 days trial), ASUS CPU-Z, PC Cleaner,
ASUS TurboV EVO Utility, ASUS AURA Creator, ASUS Fan Xpert
|
| Depth |
8.7 in |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
Gigabit Ethernet |
| Dimensions & Weight |
|
| Width |
8.9in |
| Depth |
8.7in |
| Supported RAM |
|
| Supported RAM Integrity Check |
Non-ECC, on-die ECC |
| Max Size |
128 GB |
| Bus Clock |
7200 MT/s (O.C.), 7600 MT/s (O.C.) |
| Features |
Dual channel memory architecture, AMD EXPO technology |
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter (CPU required) |
| Mainboard |
|
| Form Factor |
Micro ATX |
| Supported RAM (Registered or Buffered) |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Supported RAM Speed |
7600 MT/s (O.C.) |
| Supported RAM Integrity Check |
On-die ECC |
| Supported RAM Technology |
DDR5 SDRAM |
| Chipset Type |
AMD A620A |
| Interfaces |
|
| Storage |
M.2 socket |
| USB |
USB 3.2 Gen 1 |
| Header |
|
| Model |
PRIME A620AM-K |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| LAN |
|
| Network Interfaces |
Gigabit Ethernet |
| General |
|
| Product Type |
Motherboard - micro ATX |
| Chipset Type |
AMD A620A |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Features |
|
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3 |
| Audio |
|
| Compliant Standards |
High Definition Audio |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| RAID Features |
AMD RAID Xpert2 Technology |
| Interfaces |
1 x HDMI, 1 x DisplayPort, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x LAN (Gigabit Ethernet),
1 x audio line-out/headphones - mini-jack, 1 x microphone - mini-jack, 1 x audio line-in - mini-jack,
1 x PS/2 keyboard / mouse
|
| Internal Interfaces |
1 x USB 3.2 Gen 1 - header, 1 x USB 2.0 - header, 1 x SPDIF out - header, 1 x SPI - header,
1 x audio - header, 1 x serial - header
|
| Power Connectors |
24-pin main power connector, 8-pin ATX12V connector |
| Expansion Slots |
1 x CPU, 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 socket
(2242/2260/2280 M.2 Key M slot)
|
| Storage Interfaces |
PCIe 4.0-connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5,
SATA-600-connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
|
| RAM |
|
| Max Supported Size |
128GB |
