When you try to build a small desktop or a business workstation, space and reliability are often at odds. A cramped case can overheat, and a cheap board may fail after a few months. This creates downtime, extra cost, and frustration for anyone who needs a computer that works every day. The Asus PRIME H610I-PLUS D4-CSM Mini ITX LGA1700 Motherboard solves those issues with a compact design, strong power delivery, and tools that keep the system stable and easy to manage.

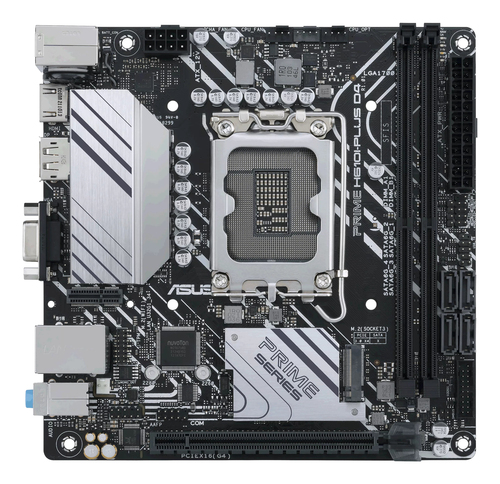

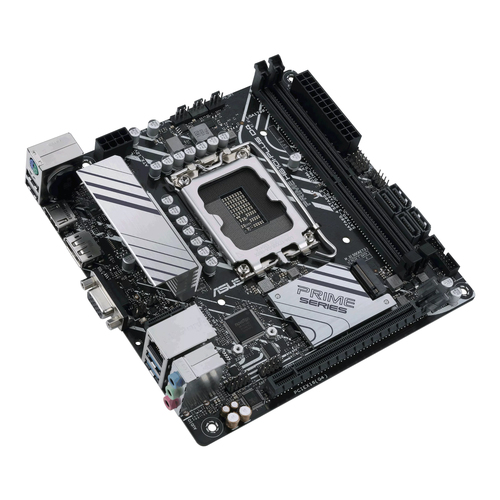

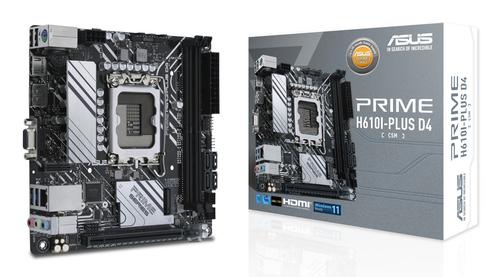

Asus PRIME H610I-PLUS D4-CSM Mini ITX LGA1700 Motherboard with Asus
Build a powerful yet tiny PC that never quits. This board fits the smallest cases but still supports the latest 12th-Gen Intel processors. It is perfect for small offices, home labs, or gamers who want a clean desk. Without a reliable motherboard, even the best CPU and GPU cannot perform well. Asus gives you a stable platform, built-in management software, and long-term support so you can focus on work or play.
Usages
The board works well in compact office PCs that need quiet operation and easy remote updates. It is also great for small-form-factor gaming rigs where every millimeter counts. Tech enthusiasts can use it for home servers that run 24/7, thanks to the Corporate Stable Model support. Finally, students building a budget desktop will appreciate the simple BIOS and one-click memory tuning.
Benefits
- Compact size saves desk space and fits tiny cases.
- Stable power and cooling keep the system running without crashes.
- Remote management tools let IT staff update BIOS and drivers without opening the case.
- One-click memory boost gives better performance for games and apps.
- Long product lifecycle means you can plan upgrades years ahead.
Key Features
- LGA1700 socket supports 12th-Gen Intel Core, i3-i9 and Celeron CPUs.
- Two DDR4 DIMM slots, up to 64 GB memory, dual-channel.
- One PCIe 4.0 x16 slot for the latest graphics cards.
- Single M.2 slot with PCIe 3.0 x4, up to 32 Gbps transfer speed.
- Four SATA III ports for additional hard drives or SSDs.
- Gigabit Ethernet for fast wired networking.
- USB 3.2 Gen 1 Type-A (2 ports) and USB 2.0 (2 ports) on the rear panel.
- HDMI 2.1 and DisplayPort 1.4 for high-resolution monitors.
- Integrated fan control with Fan Xpert and automatic tuning.
- ASUS Control Center Express for remote monitoring and scheduled updates.
Specifications
| Processor |
| Maximum internal memory supported by processor |
64 GB |
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Internal I/O |
| Number of COM connectors |
1 |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| Power fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
| Microphone in |
Yes |
| Headphone outputs |
2 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Compatible operating systems |
Windows® 11 64-bit, Windows® 10 64-bit |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Power source type |
ATX |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel H610 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| BIOS |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Packaging data |
| Package height |
60 mm |
| Package depth |
182 mm |
| Package width |
226 mm |
| Weight & dimensions |
| Height |
71 mm |
| Depth |
170.2 mm |
| Width |
170.2 mm |
| Packaging content |
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
| Maximum internal memory |
64 GB |
| Weight |
382 g |
