Are you tired of using a slow computer that can't keep up with your work or gaming needs? Look no further than the ASUS PRO WS B850M-ACE SE, AMD Socket AM5 DDR5-SDRAM 256GB Micro-ATX Motherboard. This powerful motherboard is designed to give you the speed and performance you need to take your computing to the next level. With its advanced features and capabilities, it's the perfect solution for anyone looking to upgrade their computer. Many people struggle with slow computers that can't handle demanding tasks, but with the ASUS PRO WS B850M-ACE SE, you can say goodbye to those frustrating moments and hello to a faster and more efficient computing experience.

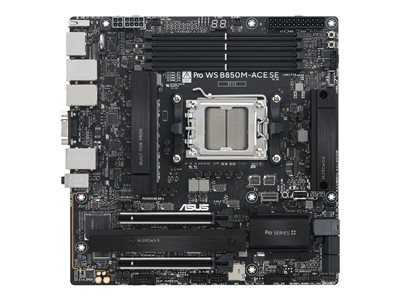

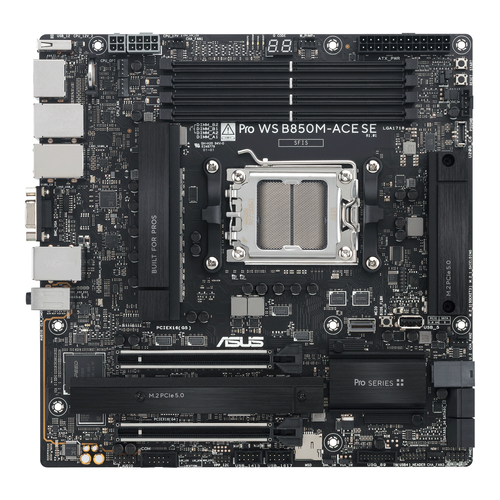

ASUS PRO WS B850M-ACE SE, AMD Socket AM5 DDR5-SDRAM 256GB Micro-ATX Motherboard
This product solves the problem of slow computing by providing a fast and efficient motherboard that can handle demanding tasks with ease. The problem of slow computing matters to users because it can cause frustration and decrease productivity. The ASUS PRO WS B850M-ACE SE gives a clear solution by providing a powerful and feature-rich motherboard that can handle any task you throw at it. With its advanced features and capabilities, it's the perfect solution for anyone looking to upgrade their computer.
Key Features
- AMD Socket AM5 processor support
- DDR5-SDRAM support up to 256GB
- SATA-600 and PCIe 5.0 support
- HD Audio and Graphics adapter support
- Micro-ATX form factor
- USB 3.2 Gen 2 and USB-C support
- DisplayPort, VGA, and HDMI support
- 10Gigabit Ethernet and 2.5Gigabit Ethernet support
- Easy to use and install with a user-friendly design
- Comprehensive documentation and support resources
- Compatible with a wide range of operating systems, including Windows and Linux
Specifications
| Miscellaneous |
|
| Cables Included |
2 x Serial ATA cable |
| Included Accessories |
IO shield, Q-Connector, 1 x M.2 rubber package, ACC Express Activation Key Card |
| Product Type |
Motherboard |
| Width |
9.6 in |
| Software Included |
Adobe Creative Cloud (free trial), Armoury Crate, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4,
Norton 360 Deluxe (60 days trial), TurboV Core, WinRAR (40 days trial), ASUS Control Center Express
|
| Depth |
9.6 in |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
2.5 Gigabit Ethernet |
| Dimensions & Weight |
|
| Width |
9.6in |
| Depth |
9.6in |
| Supported RAM |
|
| Supported RAM Integrity Check |
ECC, on-die ECC, non-ECC |
| Max Size |
256 GB |
| Bus Clock |
5600 MT/s |
| Features |
Dual channel memory architecture, AMD EXPO technology |
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter |
| Mainboard |
|
| Form Factor |
Micro ATX |
| Supported RAM (Registered or Buffered) |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Supported RAM Speed |
5600 MT/s |
| Supported RAM Integrity Check |
On-die ECC |
| Supported RAM Technology |
DDR5 SDRAM |
| Chipset Type |
AMD B850 |
| Interfaces |
|
| Storage |
Mini Cool Edge IO (MCIO) |
| USB |
USB-C 3.2 Gen 2x2 |
| Header |
|
| Model |
Pro WS B850M-ACE SE |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| LAN |
|
| Network Interfaces |
10 Gigabit Ethernet |
| General |
|
| Product Type |
Motherboard - micro ATX |
| Chipset Type |
AMD B850 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series/AMD EPYC 4005 Series) |
| Features |
|
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Audio |
|
| Compliant Standards |
High Definition Audio |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| Interfaces |
3 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, 1 x USB-C 3.2 Gen 2/DisplayPort, 2 x USB 2.0,
1 x DisplayPort, 1 x VGA, 1 x HDMI, 1 x LAN (10Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet),
1 x LAN (Gigabit Ethernet)/management, 1 x microphone - mini-jack, 1 x audio line-out - mini-jack
|
| Internal Interfaces |
1 x USB 2.0 - Type A, 2 x USB 3.2 Gen 1 - header, 4 x USB 2.0 - header,
1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 1 x serial - header,
1 x SPI - header, 1 x Thunderbolt 4 - header
|
| Power Connectors |
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Expansion Slots |
1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode),
2 x M.2 socket (2280 M.2 Key M slot), 1 x microSD
|
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5,
PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5,
PCIe 3.0 -connectors: 1 x U.2, PCIe 5.0 -connectors: 1 x MCIO
|
| RAM |
|
| Max Supported Size |
256GB |
