Name: ASUS PRO WS W790-ACE Intel LGA 4677 DDR5-SDRAM 2.05 TB
Brand: ASUSTeK COMPUTER
SKU: MTHO-123
Price: 1136.99 USD
Availability: InStock

ASUS PRO WS W790-ACE Intel LGA 4677 DDR5-SDRAM 2.05 TB

In Stock

UK Free Shipping

$1,136.99 exc. VAT

Description
Documents
Reviews

Specifications

Processor
Intel Xeon series	W-3400, W-2400
Compatible processor series	Intel Xeon W
Processor socket	LGA 4677 (Socket E)
Processor manufacturer	Intel
Memory
Maximum internal memory	2.05 TB
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
ECC сompatibility	ECC
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR5-SDRAM
Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Graphics
On-board graphics card	No
Internal I/O
12V power connector	Yes
Number of COM connectors	1
TPM connector	Yes
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	5
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel audio connector	Yes
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2

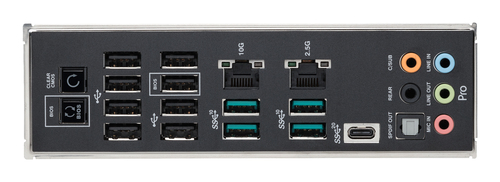

Rear panel I/O ports
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	1
DVI-D ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	8
Network
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes
Features
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Black
Audio output channels	7.1 channels
Audio chip	Realtek S1220A
Motherboard chipset	Intel W790
Motherboard chipset family	Intel
Motherboard form factor	SSI CEB
Component for	Workstation
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	5
BIOS
Clear CMOS button	Yes
BIOS memory size	512 Mbit
BIOS type	UEFI AMI
Packaging data
Package weight	3.52 kg
Package height	108 mm
Package depth	312 mm
Package width	370 mm
Weight & dimensions
Height	50 mm
Depth	277 mm
Width	305 mm
Other features
Maximum internal memory	2.05 TB
Weight	1.81 kg
mSATA ports quantity	0
