Imagine a workstation that never slows down, even when you edit 8K video or run complex 3D simulations. The ASUS PROART B850-CREATOR WIFI NEO is a high-performance ATX motherboard built for creators who need speed, stability, and future-proof connectivity. It solves the frustration of laggy builds and limited upgrade paths, giving you a solid foundation for the latest AMD Ryzen processors and massive DDR5 memory.

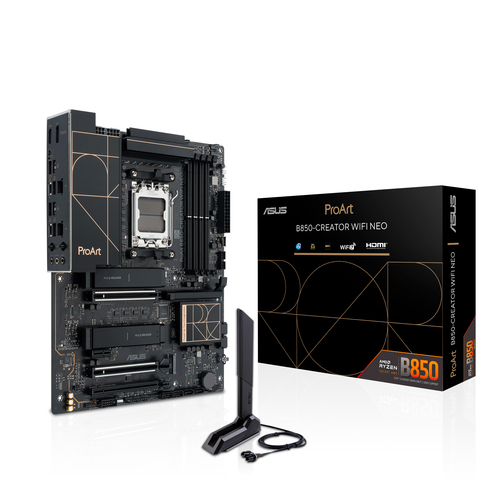

ASUS PROART B850-CREATOR WIFI NEO DDR5-SDRAM, 256 GB ATX Motherboard
Creative professionals often hit a wall when their motherboard cannot keep up with fast CPUs, large memory pools, or fast storage. This limits rendering speed, multitasking, and the ability to add new devices. The PROART B850-CREATOR addresses those limits with a robust AM5 socket, support for up to 256 GB DDR5 at 9000 MHz, and three M.2 slots that use PCIe 5.0 and 4.0 for blazing-fast SSDs. The result is a system that stays responsive, even under heavy workloads.
Key Features
- Socket AM5 for AMD Ryzen 7000, 8000, and 9000 series CPUs.
- Supports up to 256 GB DDR5-SDRAM across four DIMM slots.
- Memory speed up to 9000 MHz for ultra-fast data access.
- Three M.2 slots: 1PCIe 5.0 x4, 2PCIe 4.0 x4, all 2280 size.
- Dual 5 Gb Ethernet and Wi-Fi 7 (Realtek RTL8922AE) for high-speed networking.
- Four SATA III ports for additional HDD or SSD storage.
- Two PCIe 5.0 x16 slots and two PCIe 4.0 x16 slots for graphics cards.
- USB 3.2 Gen 2 Type-C (2 ports) and Type-A (2 ports) plus USB 2.0 (4 ports).
- Realtek ALC1220P audio chip with 7.1-channel sound.
- BIOS flashback button and 512 Mbit UEFI BIOS for easy updates.
- Integrated RGB header (3 pins) for custom lighting.
Specifications
| Processor |
|
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
|
| Maximum internal memory per slot |
64 GB |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
9000 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|
| Maximum resolution |
7680 x 4320 pixels |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
|
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| Number of COM connectors |
1 |
| Number of temperature sensor headers |
1 |
| Number of water pump connectors |
1 |
| TPM connector |
Yes |
| Thunderbolt headers |
1 |
| Number of EPS power connectors (8-pin) |
2 |
| EPS power connector (8-pin) |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
4 |
| Number of CPU fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
|
| WiFi-AP antenna jack |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Network |
|
| Bluetooth |
Yes |
| WLAN controller model |
Realtek RTL8922AE |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|
| Windows operating systems supported |
Windows 11 |
| Cooling type |
Passive |
| Power source type |
ATX |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1220P |
| Motherboard chipset |
AMD B850 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| PCI Express x4 (Gen 1.x) slots |
1 |
| BIOS |
|
| BIOS flashback button |
Yes |
| BIOS memory size |
512 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
|
| Package weight |
2.14 kg |
| Package height |
68 mm |
| Package depth |
273 mm |
| Package width |
353 mm |
| Weight & dimensions |
|
| Height |
48 mm |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
|
| Antenna included |
Yes |
| Cables included |
SATA |
| Screws included |
Yes |
| Other features |
|
| Maximum internal memory |
256 GB |
| Quick installation guide |
Yes |
| Weight |
1.33 kg |
| mSATA ports quantity |
0 |
