Are you tired of using a slow computer that can't keep up with your gaming needs? Do you want to take your gaming experience to the next level? Look no further than the ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD Socket AM5 256GB DDR5 ATX Motherboard. This powerful motherboard is designed to provide you with the speed and performance you need to play the latest games without any lag or interruptions. With its advanced features and cutting-edge technology, this motherboard is the perfect solution for any serious gamer. Many gamers face the problem of slow performance and lagging, which can be frustrating and ruin the gaming experience. The ASUS motherboard solves this problem by providing a fast and reliable performance that can handle even the most demanding games.

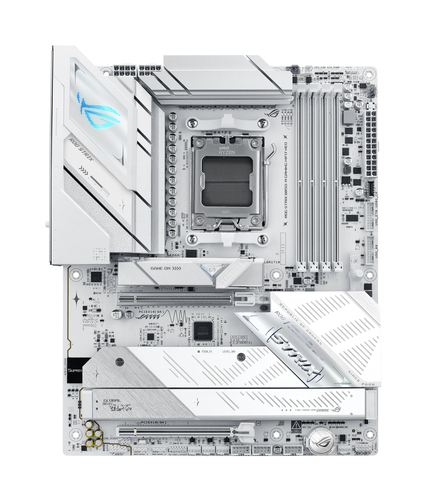

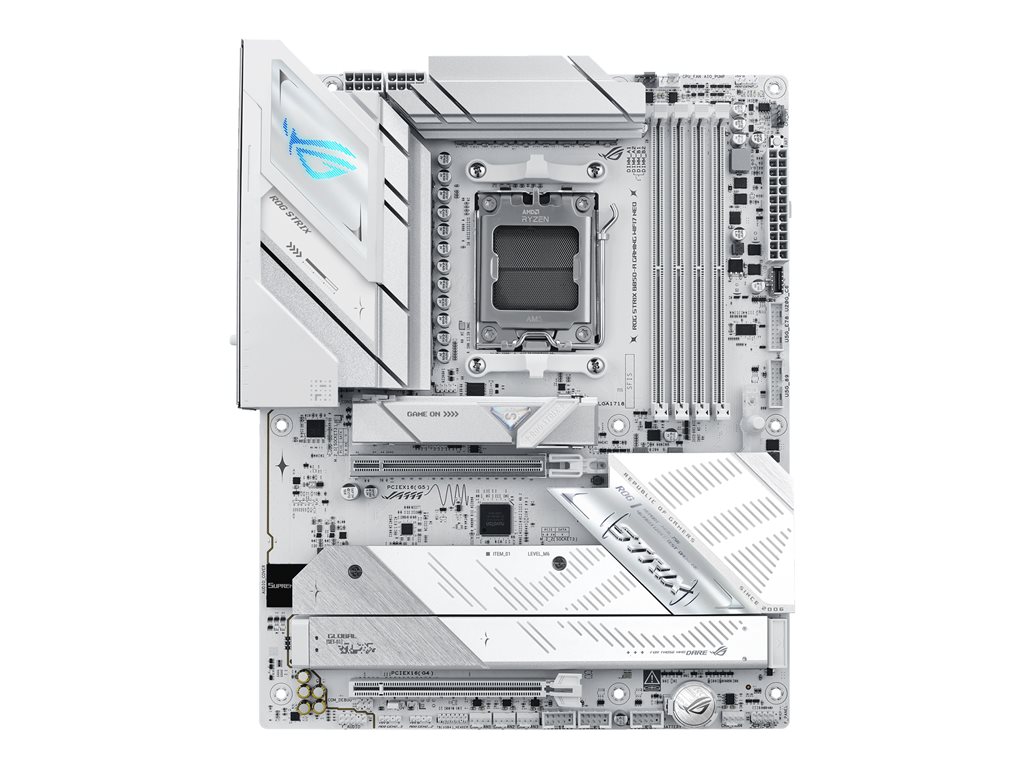

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD Socket AM5 256GB DDR5 ATX Motherboard
The ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD Socket AM5 256GB DDR5 ATX Motherboard solves the problem of slow performance and lagging by providing a fast and reliable performance that can handle even the most demanding games. This problem matters to users because it can ruin the gaming experience and make it frustrating. The motherboard gives a clear solution by providing advanced features such as Wi-Fi 7, DDR5 memory, and a powerful AMD processor. With these features, users can enjoy a seamless gaming experience without any interruptions. The ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD Socket AM5 256GB DDR5 ATX Motherboard is designed to provide users with the speed and performance they need to play the latest games without any lag or interruptions.
Key Features
- AMD B850 chipset
- Socket AM5 processor socket
- Support for up to 256GB of DDR5 memory
- Wi-Fi 7 connectivity for fast and reliable wireless connectivity
- USB-C 3.2 Gen 2x2 for fast data transfer
- 5 Gigabit Ethernet for fast and reliable wired connectivity
- HD Audio (8-channel) for high-quality audio
- Support for PCIe 5.0 and PCIe 4.0 expansion cards
- Support for M.2 storage devices
- Easy to install and use, with a user-friendly interface and comprehensive documentation
- Comprehensive warranty and support options for peace of mind
Specifications
| Miscellaneous |
|
| Cables Included |
2 x Serial ATA cable |
| Included Accessories |
ASUS Wi-Fi Q-antenna, M.2 Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker, 4 x M.2 rubbers |
| Product Type |
Motherboard |
| Width |
12 in |
| Depth |
9.6 in |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
IEEE 802.11be (Wi-Fi 7) |
| Supported RAM |
|
| Supported RAM Integrity Check |
Non-ECC, ECC, on-die ECC |
| Max Size |
256 GB |
| Bus Clock |
8400 MT/s (O.C.), 8200 MT/s (O.C.), 9000 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.) |
| Features |
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter (CPU required) |
| Mainboard |
|
| Form Factor |
ATX |
| Supported RAM (Registered or Buffered) |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Supported RAM Speed |
9000 MT/s (O.C.) |
| Supported RAM Integrity Check |
On-die ECC |
| Supported RAM Technology |
DDR5 SDRAM |
| Chipset Type |
AMD B850 |
| Interfaces |
|
| Storage |
M.2 socket |
| USB |
USB-C 3.2 Gen 2x2 |
| Header |
|
| Model |
ROG STRIX B850-A GAMING WIFI7 NEO |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| LAN |
|
| Network Controller |
Mediatek MT7925 |
| Network Interfaces |
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
| General |
|
| Product Type |
Motherboard - ATX |
| Chipset Type |
AMD B850 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series) |
| Features |
|
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Audio |
|
| Compliant Standards |
High Definition Audio, Dolby Atmos |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| Interfaces |
1 x LAN (5Gigabit Ethernet), 2 x USB-C 3.2 Gen 2, 2 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1,
2 x USB 2.0, 1 x HDMI, 2 x antenna, 1 x audio line-out - mini-jack, 1 x microphone - mini-jack,
1 x SPDIF out
|
| Internal Interfaces |
1 x Thunderbolt 4 - header, 1 x USB-C 3.2 Gen 2x2 - header, 6 x USB 2.0 - header,
4 x USB 3.2 Gen 1 - header, 1 x audio - header
|
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Expansion Slots |
1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4/x2 modes),
1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2280 M.2 Key M slot)
|
| Storage Interfaces |
SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
|
| RAM |
|
| Max Supported Size |
256GB |
