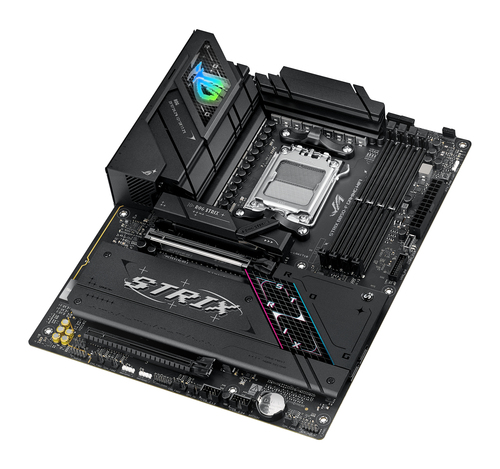

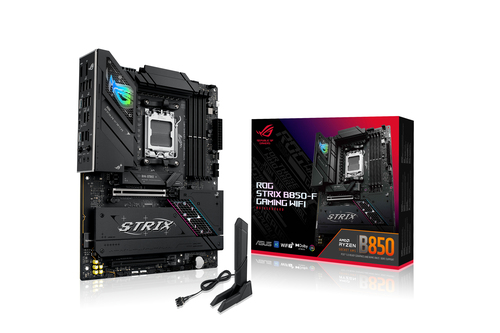

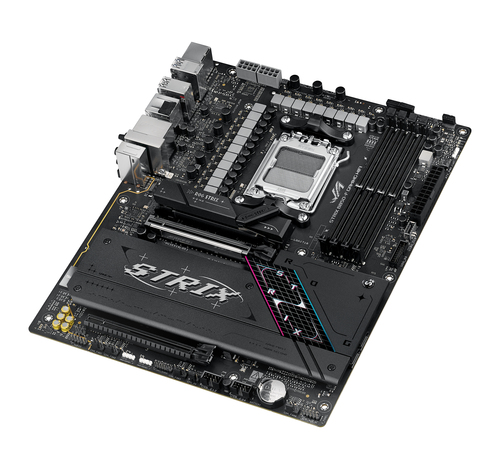

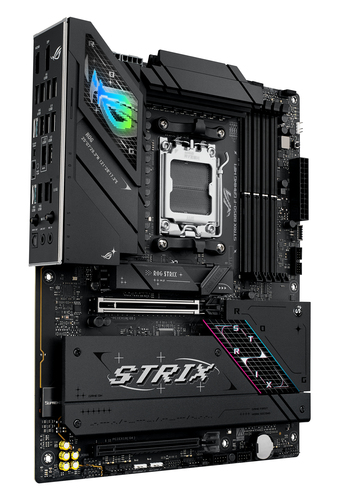

The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ASUS AI INTELLIGENCE
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
*Availability of ASUS AI Advisor may vary by region.
**AI Advisor functions may vary by platform.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.
OVERCLOCKING
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
MEMORY
DDR5 DOMINATION
The Strix B850-F is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
ROG STRIX ULTIMATE POWER DESIGN
16(80A)+2(80A)+2(80A) Power Stages
PLAY IN STYLE
UNDENIABLY ROG STRIX
The ROG Strix B850-F is sleek and understated, empowering you to seamlessly combine it with a wide range of system components. Its deep black PCB and matching metallic heatsinks create a dark and intense look, while a touch of RGB lighting on the I/O shroud lets you either stay under the radar or make a bold statement.
OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, a Strix B850 motherboard delivers. With USB 20Gbps onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD 800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Dare to Be Green
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Specifications
| Processor |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
8000 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
2 |
| Number of storage drives supported |
6 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Maximum resolution |
7680 x 4320 pixels |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| Number of RGB LED pin headers |
3 |
| RGB LED pin header |
Yes |
| Number of temperature sensor headers |
1 |
| Number of water pump connectors |
1 |
| Thunderbolt headers |
1 |
| Number of EPS power connectors (8-pin) |
2 |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
4 |
| Number of CPU fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| WiFi-AP antenna jack |
2 |
| Digital audio optical out |
1 |
| S/PDIF out port |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
4 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 |
| Power source type |
ATX |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4080 |
| Motherboard chipset |
AMD B850 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| 4th M.2 highest PCI Express generation |
4.0 |
| 4th M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
22110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| BIOS |
| Clear CMOS button |
Yes |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Packaging data |
| Package weight |
2.06 kg |
| Package height |
68 mm |
| Package depth |
273 mm |
| Package width |
353 mm |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
| Antenna included |
Yes |
| Cables included |
SATA |
| Other features |
| Maximum internal memory |
192 GB |
| Quick installation guide |
Yes |
| Weight |
1.63 kg |
| mSATA ports quantity |
0 |
