If you are looking to upgrade your computer with the latest technology, you are in the right place. The ASUS ROG STRIX X870E-A GAMING WIFI7 NEO, Socket AM5, 256GB ATX Motherboard is one of the best options available in the market. Many people struggle with slow computers and poor performance, which can be frustrating and affect their work and daily activities. This motherboard is designed to provide fast performance, high-quality graphics, and advanced features that will take your computer to the next level. With the ASUS brand, you can trust that you are getting a high-quality product that will meet your needs and exceed your expectations.

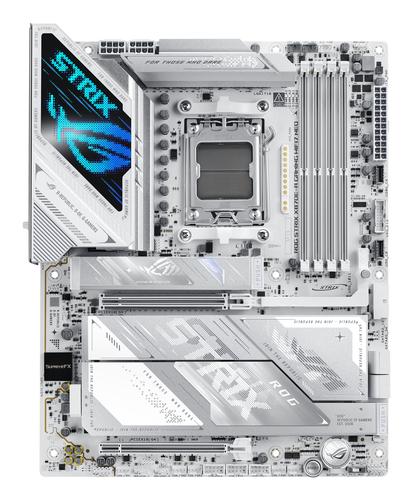

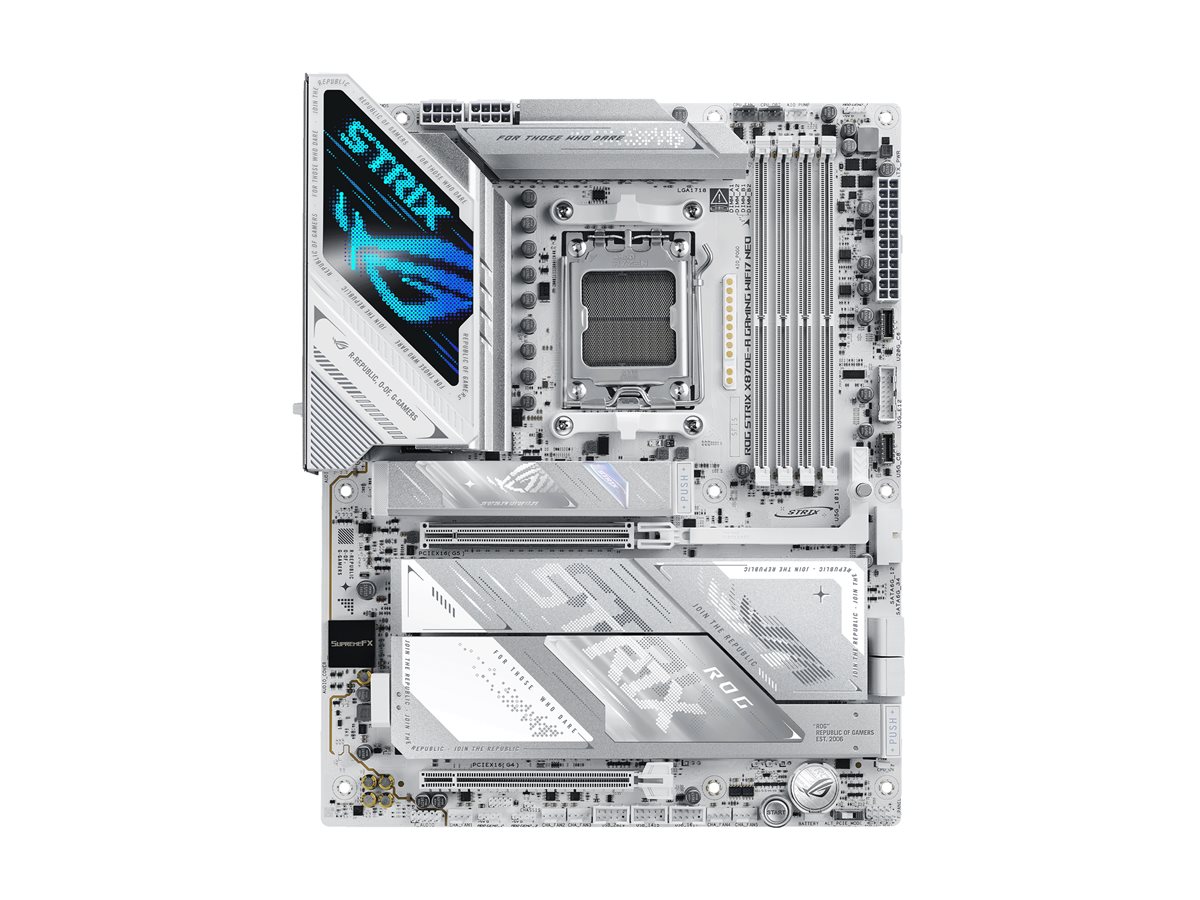

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO, Socket AM5, 256GB ATX Motherboard
This product solves the problem of slow computer performance and poor graphics quality. Many users struggle with computers that take a long time to load programs and games, which can be frustrating and affect their productivity. The ASUS ROG STRIX X870E-A GAMING WIFI7 NEO motherboard provides a fast and reliable performance, with advanced features such as Wi-Fi 7 and high-quality graphics. This product gives a clear solution to users who want to upgrade their computers with the latest technology and enjoy fast and smooth performance. With this motherboard, users can enjoy high-quality graphics, fast loading times, and advanced features that will take their computing experience to the next level.
Key Features
- ASUS ROG STRIX X870E-A GAMING WIFI7 NEO motherboard with Socket AM5 processor socket
- AMD X870E chipset with Wi-Fi 7 and high-quality graphics
- 4 x DIMM 288-pin memory slots with support for up to 256GB of DDR5 memory
- 1 x PCIe 5.0 x16 slot and 1 x PCIe 4.0 x16 slot (x4 mode)
- 2 x M.2 sockets with support for SATA-600 and PCIe 5.0 connectors
- HD Audio with 8-channel audio output and Dolby Atmos support
- DisplayPort and HDMI output with support for 4K resolution
- 5 x USB 3.2 Gen 2 ports and 4 x USB 3.2 Gen 1 ports
- 1 x LAN (5Gigabit Ethernet) port and 1 x microphone - mini-jack
- 1 x audio line-out - mini-jack and 1 x SPDIF out
Specifications
| Miscellaneous |
|
| Cables Included |
2 x Serial ATA cable |
| Included Accessories |
ASUS Wi-Fi moving antenna, M.2 Q-Slide, M.2 Q-Latch, ROG key chain, ROG Strix sticker,
4 x M.2 rubber package
|
| Product Type |
Motherboard |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
IEEE 802.11be (Wi-Fi 7) |
| Dimensions & Weight |
|
| Width |
12in |
| Depth |
9.6in |
| Supported RAM |
|
| Supported RAM Integrity Check |
Non-ECC, ECC, on-die ECC |
| Max Size |
256 GB |
| Bus Clock |
8600 MT/s (O.C.), 8200 MT/s (O.C.), 9600 MT/s (O.C.), 9000 MT/s (O.C.), 8000 MT/s (O.C.) |
| Features |
NitroPath technology, AMD EXPO technology, Intel Extreme Memory Profiles (XMP),
dual channel memory architecture
|
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter (CPU required) |
| Mainboard |
|
| Form Factor |
ATX |
| Supported RAM (Registered or Buffered) |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Supported RAM Speed |
9600 MT/s (O.C.) |
| Supported RAM Integrity Check |
On-die ECC |
| Supported RAM Technology |
DDR5 SDRAM |
| Chipset Type |
AMD X870E |
| Interfaces |
|
| Storage |
M.2 socket |
| USB |
USB-C 3.2 Gen 1 |
| Header |
|
| Model |
ROG STRIX X870E-A GAMING WIFI7 NEO |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| LAN |
|
| Network Interfaces |
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4 |
| General |
|
| Product Type |
Motherboard - ATX |
| Chipset Type |
AMD X870E |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series) |
| Features |
|
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Audio |
|
| Compliant Standards |
High Definition Audio, Dolby Atmos |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| Interfaces |
2 x USB4/DisplayPort, 1 x USB-C 3.2 Gen 2, 5 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 1 x HDMI,
2 x antenna, 1 x LAN (5Gigabit Ethernet), 1 x microphone - mini-jack, 1 x audio line-out - mini-jack,
1 x SPDIF out
|
| Internal Interfaces |
1 x USB-C 3.2 Gen 2x2 - header, 1 x USB-C 3.2 Gen 1 - header, 4 x USB 3.2 Gen 1 - header,
6 x USB 2.0 - header, 1 x audio - header
|
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Expansion Slots |
1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x M.2 socket
(2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket
(2280/22110 M.2 Key M slot)
|
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5,
PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5,
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
|
| RAM |
|
| Max Supported Size |
256GB |
