Ready to build a gaming PC that never slows down? The Asus ROG STRIX Z890-I GAMING WIFI, Mini ITX LGA1851 Motherboard gives you the power of Intel Core Ultra processors in a tiny case. It is built for gamers and creators who need fast performance, stable Wi-Fi and plenty of high-speed ports. If you have struggled with lag, limited upgrade space or weak wireless, this board solves those problems and lets you play, stream and work without compromise.

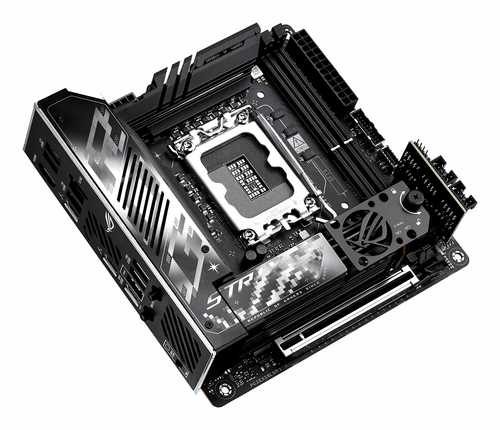

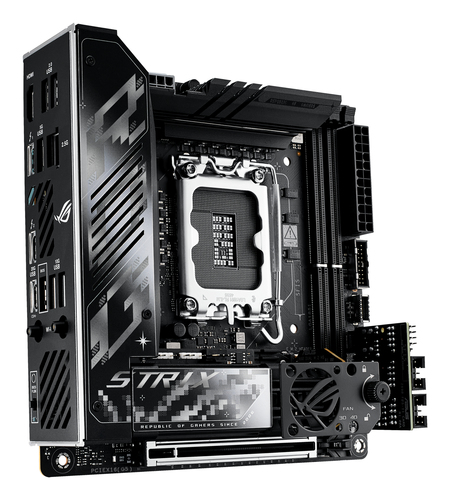

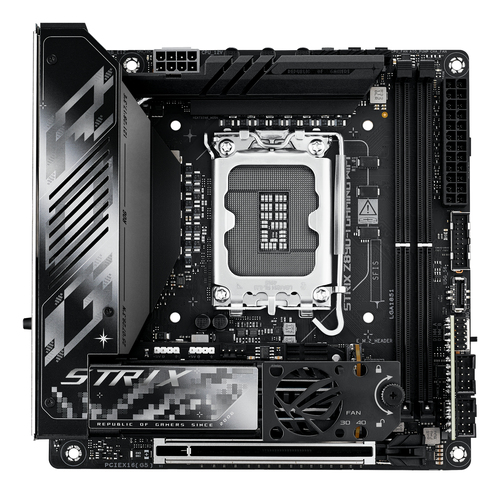

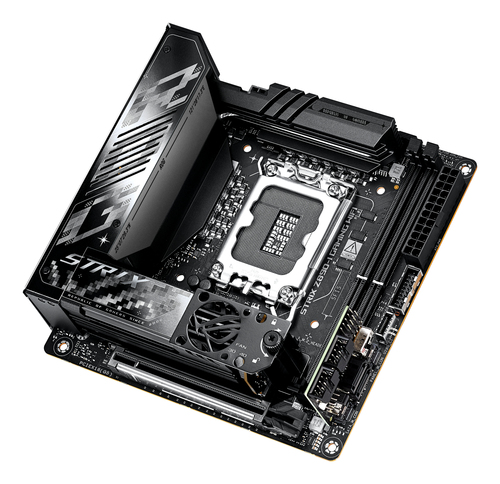

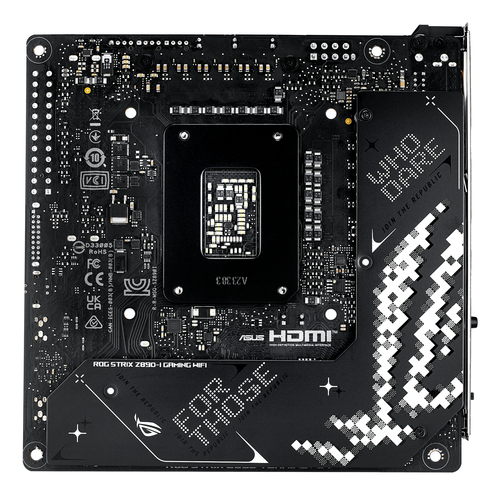

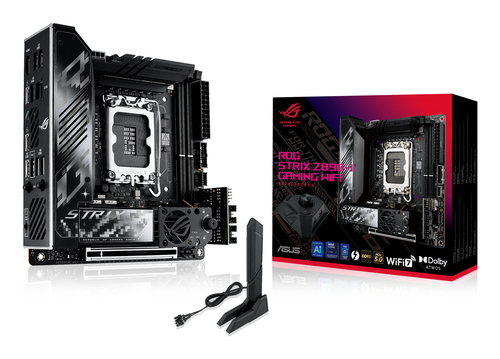

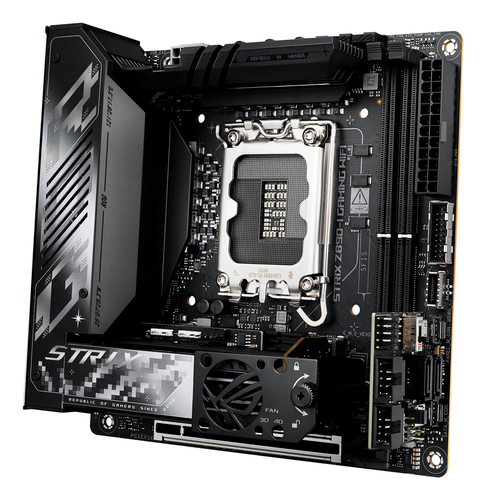

Asus ROG STRIX Z890-I GAMING WIFI, Mini ITX LGA1851 Motherboard
Many small-form-factor builds suffer from low power delivery and weak connectivity. That makes games stutter and files load slowly. The problem matters because you lose time and enjoyment when your system cannot keep up. This motherboard delivers a strong power design, Wi-Fi 7, Thunder-bolt 4 and DDR5 support, giving you a clear path to top performance in a compact size. It removes bottlenecks and lets every component run at its best.
Usages of Asus
The board fits a mini-ITX gaming rig that sits on a desk or in a small living-room case. It works for a high-end workstation that needs fast AI processing and large memory. It also serves as a compact streaming PC that can handle 4K video and multiple USB devices. Whether you build a portable e-sports machine or a quiet office workstation, this motherboard meets the need.
Benefits
- Fast Wi-Fi 7 keeps online games smooth and downloads quick.
- DDR5 slots let you install up to 96 GB of memory for heavy multitasking.
- Thunder-bolt 4 provides ultra-fast data transfer and external GPU support.
- Compact mini-ITX size saves space without losing performance.
- Robust power design ensures stable operation even under heavy load.
Key Features
- Supports Intel Core Ultra (Series 2) processors on LGA 1851 socket.
- Intel Z890 chipset delivers advanced overclocking and stability.
- Two DDR5 DIMM slots, up to 96 GB total memory.
- Two M.2 slots for high-speed NVMe SSDs.
- PCIe 5.0 x16 slot for the latest graphics cards.
- Wi-Fi 7 (802.11be) and Bluetooth 5.4 built in.
- 2.5 Gb Ethernet for low-latency wired networking.
- Two Thunderbolt 4 ports on the rear panel.
- USB 3.2 Gen 2x2 Type-C and three USB 3.2 Gen 2 Type-A ports.
- One HDMI 2.1 output for direct video without a GPU.
- UEFI AMI BIOS with 256 Mbit flash for easy updates.
- One CPU fan and one chassis fan connector for custom cooling.
Specifications
| Processor |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Processor socket |
LGA 1851 (Socket V1) |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
96 GB |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1 |
| RAID support |
Yes |
| Number of HDDs supported |
2 |
| Number of storage drives supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| On-board graphics card |
No |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
1 |
| Number of CPU fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA III connectors |
2 |
| USB 3.2 Gen 2x2 connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
0 |

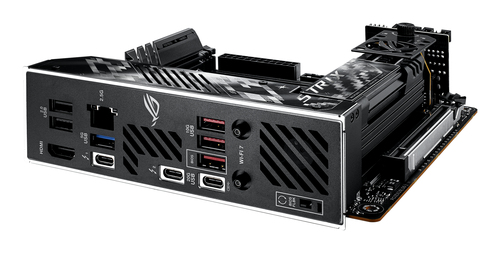

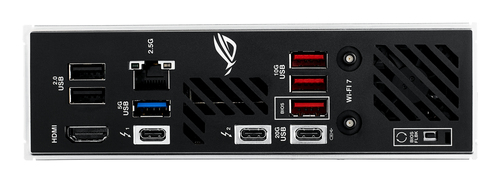

| Rear panel I/O ports |
| Thunderbolt ports quantity |
2 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 |
| Product colour |
Black |
| Motherboard chipset |
Intel Z890 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
| Depth |
170 mm |
| Width |
170 mm |
| Other features |
| Maximum internal memory |
96 GB |
| mSATA ports quantity |
0 |
