Imagine a computer that can stay cool in a factory, run heavy AI models, and fit into a tight rack. The Asus RUC-1000G 19-inch, Intel Core Ultra 9 285T, 2U rugged Rack Edge AI computer does exactly that. It is built for edge AI tasks where space, power and reliability are critical. If you have been frustrated by servers that overheat or cannot handle real-time video analysis, this machine gives you the power you need without the downtime.

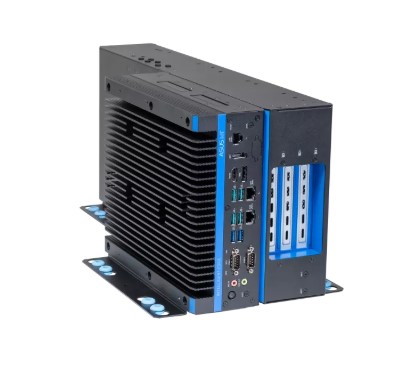

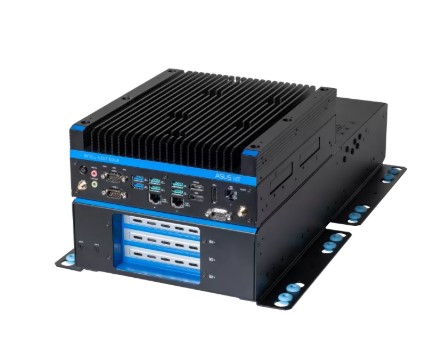

Asus RUC-1000G 19-inch, Intel Core Ultra 9 285T, 2U rugged Rack Edge AI computer
Edge AI workloads demand fast processing, low latency and rugged hardware. When a device cannot keep up, you lose valuable data and risk costly errors. This Asus system solves the problem by pairing a 24-core Intel Core Ultra 9 CPU with up to 4,000 AI TOPS and support for high-power GPUs. The result is smooth AI inference, reliable operation in harsh temperatures, and easy integration into existing rack cabinets. You get a clear path to deploy computer vision, predictive maintenance and other AI services right at the source.
Key Features
- Intel Core Ultra 9 285T processor with 24 cores and 35 W TDP
- Up to 64 GB DDR5 ECC or non-ECC memory at 5600 MT/s
- Supports GPUs up to 600 W and PCIe Gen5 x16 slots
- Four display outputs: 1 HDMI and 2 DisplayPort++ for 4K video
- Eight USB 3.2 Gen2 ports plus two USB 2.0 for legacy devices
- Multiple COM ports and optional CAN bus for industrial control
- Two 2.5 in SATA drives with RAID 0/1 and three M.2 slots for fast storage
- Power input 8 V-48 V DC with remote switch support
- Mounting options for wall or rack, side-by-side or stacked mode
- Runs Linux or Windows 11 IoT Enterprise, ready for edge AI software
Specifications
| General |
|
| Model |
RUC-1000G |
| Product Type |
19-inch 2U Rugged Rack Edge AI Computer |
| Application |
Edge AI computing |
| CPU Manufacturer |
Intel |
| CPU Type |
Intel® Core™ Ultra 200S Series CPU |
| Chipset |
Intel® W880 Chipset |
| Processor |
|
| Processor |
Intel® Core™ Ultra 9 285T |
| CPU TDP |
35W |
| CPU # of Cores |
24 |
| CPU P-core Base Freq. |
1.4GHz |
| Memory |
|
| Memory |
2 x SO-DIMM DDR5 |
| Memory Type |
DDR5 ECC/non-ECC |
| Memory Speed |
5600MT/s |
| Maximum Memory |
64GB |
| Operating Temperature |
0°C ~ 95°C |
| Graphics & AI Performance |
|
| GPU Support |
Up to 600W GPU |
| AI Performance |
Up to 4,000 AI TOPS |
| PCIe GPU Support |
PCIe Gen 5 |
| Display |
|
| Display Output |
1 x HDMI, 2 x DP++ |
| HDMI |
Supports up to 4096 x 2160 @ 30 Hz |
| DP++ |
Supports up to 4096 x 2160 @ 60 Hz |
| Networking |
|
| Ethernet |
1 x 10 GbE, RJ45 (AQC113) |
| Ethernet |
2 x 2.5 GbE, RJ45 (Intel® i226-IT) |
| USB & I/O Interfaces |
|
| USB |
8 x USB 3.2 Gen2 (10Gbps) |
| USB |
2 x USB 2.0 |
| COM |
2 x RS-232/422/485 (COM1 with 5V/12V power support) |
| COM |
4 x RS-232 |
| CAN Bus |
1 x CAN Bus 2.0B (optional) |
| Audio |
1 x Mic-in, 1 x Line-out |
| GPIO/DIO |
8-bit isolated DIO (4-in/4-out, optional) |
| Storage |
|
| 2.5” SATA |
2 x 2.5” (supports RAID 0/1) |
| M.2 M Key |
1 x M.2 2280 M-key (PCIe Gen4x4) |
| M.2 E Key |
1 x M.2 2230 E-key (PCIe x1/USB2.0) |
| M.2 B Key |
1 x M.2 3042/3052 B-key with dual nano-SIM slot (PCIe x1/USB 3.2 Gen1/USB2.0) |
| M.2 B Key |
1 x M.2 3042/3052 B-key (PCIe x1/USB 3.2 Gen1/USB2.0) |
| Expansion Slot |
|
| PCIe Slot |
1 x PCIe Gen4 x4 slot |
| PCIe Slot |
2 x PCIe Gen5 x16 slot (1 x PCIe x16 or 2 x PCIe x8 signal, support up to 600 watts) |
| Maximum GPU Size |
348 x 146 x 72 mm |
| Power |
|
| Power Input |
8V to 48 V DC-in, 3-pin terminal block (V+, GND, IGN) |
| Remote Switch |
2-pin terminal block (Remote, GND) |
| Mechanical |
|
| Mounting |
Wall-mount, Rack-mount (Side by side mode only) |
| Dimensions (WxDxH) |
440 x 488.9 x 85mm (Side by side mode) |
| Dimensions (WxDxH) |
220 x 488.9 x 170mm (Stack mode) |
| Weight |
12.2 kg |
| Environmental |
|
| Operating Temperature |
-25 ~ 60° C |
| Storage Temperature |
-40 ~ 85° C |
| Certification |
CB, BSMI, RCM, UKCA, CE, ISED, FCC |
| Vibration |
Operating: MIL-STD 810H Method 514.8, Category 4 |
| Shock |
Operating: MIL-STD 810H Method 516.8, Procedure I, Table 516.6-ll; 20 G 11ms |
| Operating System |
|
| OS |
Linux by Project support |
| OS |
Windows® 11 IoT Enterprise (64-bit) |
