If you are looking to build a powerful gaming computer, you know how hard it can be to find the right parts. One of the most important parts of any computer is the motherboard. A good motherboard can make all the difference in how well your computer performs. The problem is that many motherboards on the market are not designed with gamers in mind. They often lack the features and power that gamers need to play the latest games. This can be frustrating for gamers who want to get the most out of their computer. The ASUS TUF GAMING X870-PRO WIFI7 W NEO, AMD, Socket AM5 256GB DDR5 ATX Motherboard is a solution to this problem. It is designed specifically for gamers and has all the features and power that they need to play the latest games.

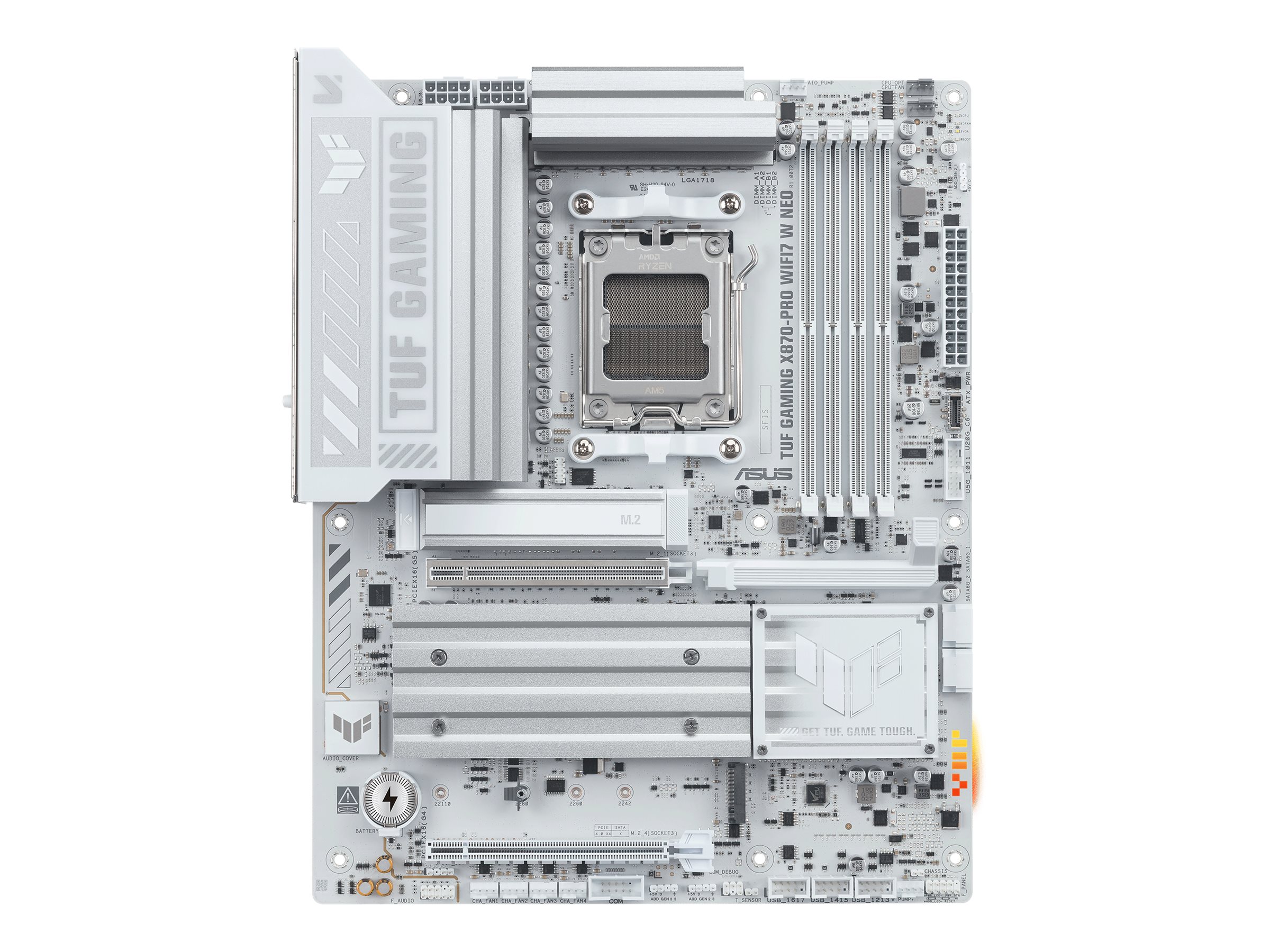

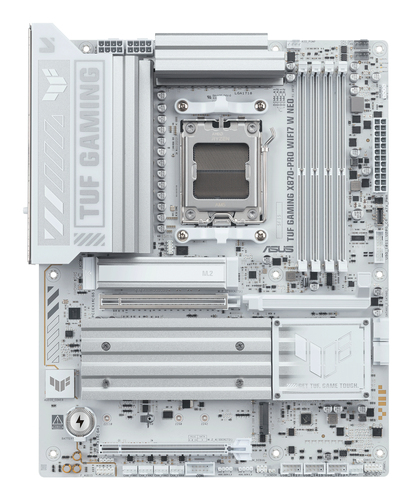

ASUS TUF GAMING X870-PRO WIFI7 W NEO, AMD, Socket AM5 256GB DDR5 ATX Motherboard with ASUS
Are you tired of using a computer that can't keep up with your gaming needs? Look no further than the ASUS TUF GAMING X870-PRO WIFI7 W NEO, AMD, Socket AM5 256GB DDR5 ATX Motherboard. This motherboard is designed to provide the power and features that gamers need to play the latest games. With its AMD Socket AM5 and 256GB DDR5 memory, this motherboard has the power to handle even the most demanding games. The ASUS brand is known for its high-quality products, and this motherboard is no exception. It is built to last and provide years of reliable service.
Key Features
- AMD Socket AM5
- 256GB DDR5 memory
- ATX form factor
- Wi-Fi 7 and Bluetooth 5.4 connectivity
- 5 Gigabit Ethernet
- USB-C 3.2 Gen 2x2 and USB 3.2 Gen 1 ports
- HD Audio (8-channel)
- PCIe 5.0 and PCIe 4.0 expansion slots
- SATA-600 and M.2 storage interfaces
- 24-pin main power connector and 2 x 8-pin ATX12V connectors
Specifications
| Miscellaneous |
|
| Cables Included |
2 x Serial ATA cable |
| Included Accessories |
ASUS Wi-Fi moving antenna, TUF GAMING sticker, 2 x M.2 rubber package, M.2 screw package |
| Product Type |
Motherboard |
| Width |
12 in |
| Compliant Standards |
DisplayPort 1.4a |
| Depth |
9.6 in |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
IEEE 802.11be (Wi-Fi 7) |
| Dimensions & Weight |
|
| Width |
12in |
| Depth |
9.6in |
| Supported RAM |
|
| Supported RAM Integrity Check |
Non-ECC, ECC, on-die ECC |
| Max Size |
256 GB |
| Bus Clock |
8600 MT/s (O.C.), 8200 MT/s (O.C.), 9600 MT/s (O.C.), 9000 MT/s (O.C.), 8000 MT/s (O.C.) |
| Features |
NitroPath technology, AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter (CPU required) |
| Mainboard |
|
| Form Factor |
ATX |
| Supported RAM (Registered or Buffered) |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Supported RAM Speed |
9600 MT/s (O.C.) |
| Supported RAM Integrity Check |
On-die ECC |
| Supported RAM Technology |
DDR5 SDRAM |
| Chipset Type |
AMD X870 |
| Interfaces |
|
| Storage |
M.2 socket |
| USB |
USB-C 3.2 Gen 2x2 |
| Header |
|
| Model |
TUF GAMING X870-PRO WIFI7 W NEO |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| LAN |
|
| Network Controller |
Realtek RTL8922AE |
| Network Interfaces |
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
| General |
|
| Product Type |
Motherboard - ATX |
| Chipset Type |
AMD X870 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series) |
| Features |
|
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
| Audio |
|
| Compliant Standards |
High Definition Audio, DTS Audio |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| Interfaces |
2 x USB4, 3 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 1 x USB 2.0, 1 x HDMI, 2 x antenna,
1 x LAN (5Gigabit Ethernet), 1 x microphone - mini-jack, 1 x audio line-out - mini-jack,
1 x audio line-in - mini-jack
|
| Internal Interfaces |
1 x USB-C 3.2 Gen 2x2 - header, 2 x USB 3.2 Gen 1 - header, 6 x USB 2.0 - header,
1 x serial - header, 1 x audio - header, 1 x SPDIF out - header
|
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Expansion Slots |
1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode),
3 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
|
| Storage Interfaces |
SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5,
PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5,
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
|
| RAM |
|
| Max Supported Size |
256GB |
