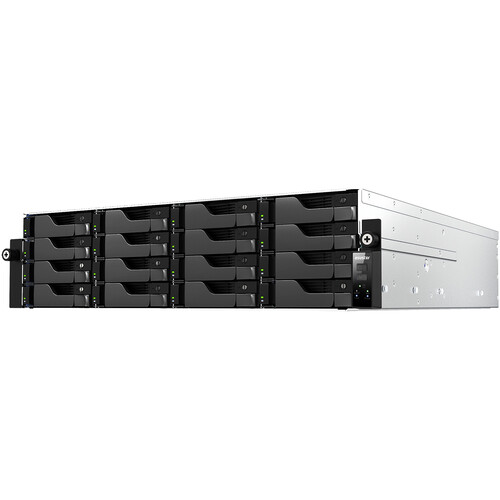

Asustor LOCKERSTOR 16R Pro Gen2, AMD Ryzen 7 Pro, 16GB Rackmount NAS

When you need to run many virtual machines, large databases, or real-time analytics, a slow or unreliable server can hold back your whole operation. The AMD Ryzen 7 Pro 7745 Server is a high-performance tower that delivers fast processing, reliable memory, and flexible storage for demanding workloads. It replaces older, under-powered boxes and gives you the speed and expandability you need to keep your business moving.

AMD Ryzen 7 Pro 7745 Server - powerful compute for demanding tasks

This server solves the problem of bottlenecked performance in multi-user or data-intensive environments. When applications compete for CPU cycles, response times rise and productivity drops. The Ryzen 7 Pro 7745 model provides a base clock of 3.8 GHz that can boost to 5.3 GHz, ensuring that each core can handle heavy calculations without delay. With a 64-bit x64 architecture, the system runs modern operating systems and virtualization platforms smoothly, giving you the headroom to add more users, services, or containers without sacrificing speed.

Benefits

• Fast processing power - The 3.8 GHz base, up to 5.3 GHz boost, lets you run complex calculations and multiple VMs with ease.
• Error-correcting memory - 16 GB ECC DDR5-4800 UDIMM protects data integrity, ideal for critical business applications.
• Scalable storage - 16 drive bays plus an M.2 slot support up to 44 drives, so you can grow capacity as your data grows.
• High-speed networking - Dual 1 GbE and dual 10 GbE ports give you fast, reliable connections for both local and remote users.
• Redundant power - Two 550 W power supplies provide continuous operation even if one unit fails.

Usages

The server fits a wide range of practical scenarios. Use it as a virtualization host to run dozens of virtual desktops for remote workers. Deploy it as a database engine for finance or e-commerce platforms that need rapid query response. It also works well as a file-sharing and backup hub, handling large volumes of data across multiple drives. For developers, the powerful CPU and ample memory make it a solid test bed for compiling code, running containers, or simulating production environments.

Key Features

• AMD Ryzen 7 Pro 7745 processor with 3.8 GHz base frequency, boosting to 5.3 GHz.
• 64-bit x64 architecture for full compatibility with modern software.
• 16 GB ECC DDR5-4800 UDIMM installed (1 × 16 GB) for reliable memory performance.
• Four memory slots, expandable up to 192 GB (4 × 48 GB) with mixed-capacity support.
• 32 GB SATA DOM for quick boot and system management.

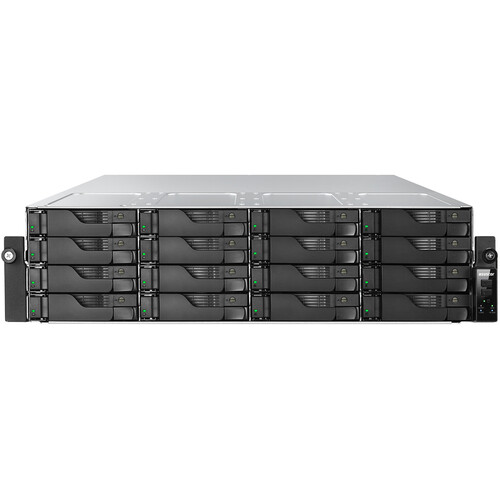

• Sixteen 3.5"/2.5" drive bays plus one M.2 2280 NVMe slot, compatible with SATA HDD, SATA SSD, and NVMe drives.
• PCIe 5.0 x4 interface for the M.2 slot, delivering ultra-fast storage speeds.

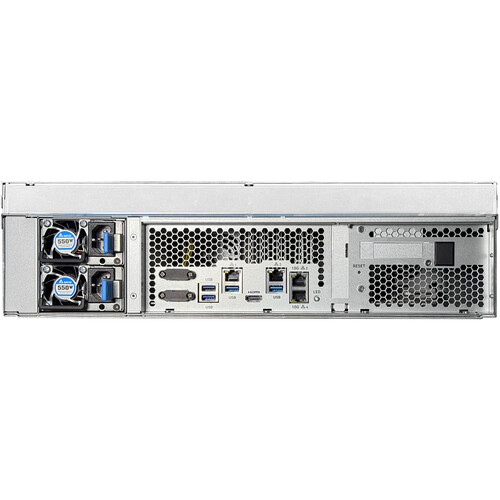

• Two 550 W redundant power supplies, accepting 100 V to 240 V AC input.
• Three 60 mm system fans for effective cooling.
• Four USB 3.2 Gen 1 Type-A ports for easy peripheral connection.
• Dual 1 GbE (1 G/100 M, WOL) and dual 10 GbE (10 G/1 G) network ports for versatile connectivity.
• Expansion slots: one Gen5 x8 and one Gen5 x4, ready for optional high-speed Ethernet or SAS cards.
• HDMI output (service only) for maintenance and diagnostics.
• Service LED indicator for quick status checks.
• Certified for FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, and UKCA compliance.
• Power consumption of 187 W during operation and 128 W in disk-hibernation mode.
• Operating temperature range 0 °C ~ 40 °C (32 °F ~ 104 °F) and storage temperature -20 °C ~ 70 °C (-4 °F ~ 158 °F).
• Humidity tolerance from 5 % to 95 % RH.
• Physical dimensions 116 mm (H) × 439 mm (W) × 576 mm (D) and weight 15.3 kg (33.7 lb).

This server gives you the power, reliability, and flexibility to handle today’s workloads and tomorrow’s growth, all in a compact tower that fits into standard data-center racks or office closets.
