Youve probably lost a perfect take because the monitor was too dim or the recorder couldnt keep up. Atomos solves that by giving you a bright HDR screen and reliable recording in a single handheld unit. With the Ninjas 5.2-inch IPS touchscreen you can see true colors even in sunlight, and its built-in SSD slot captures ProRes or RAW without dropping frames. The result is clear exposure, focus and color on set, so you stop guessing and start shooting with confidence.
Atomos Ninja 5.2" HDR Monitor-Recorder 1920x1080 IPS Touchscreen 427ppi
This is a compact monitor-recorder designed for DSLR and mirrorless cameras. It lets you view a 1000-nit HDR image, record up to 6K RAW over HDMI, and switch between ProRes, ProRes RAW and H.265 on the fly. It fits in a small rig, runs on battery, and mounts with standard -16 threads.
Benefits
- Bright screen lets you check exposure outdoors.
- Touch interface speeds focus and exposure adjustments.
- Multiple codecs give you the right format for any workflow.
- Removable SSD provides unlimited recording time.
- Time-Lapse and RecordAssist automate long or remote shoots.
- Onion-Skin and Frame Grab simplify visual effects planning.
Features
- 5.2-inch 1000 cd/m HDR IPS display
- 1920 x 1080 resolution, 427 ppi density
- Supports 1080p-3456p video modes
- Two HDMI ports - in and out
- Capacitive multi-touch screen

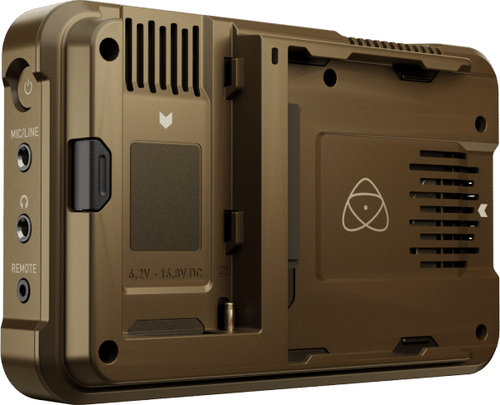

- ABS and aluminium housing
- Battery powered, 360 g weight

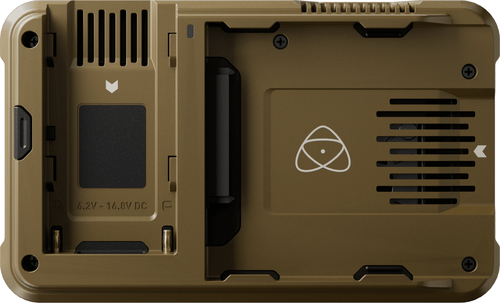

- ATOMX SSDmini compatible up to 4 TB
Specifications
| Display |
|
| Display brightness |
1000 cd/m² |
| Display number of colours |
1.07 billion colours |
| Aspect ratio |
16:9 |
| Pixel density |
427 ppi |
| Touchscreen type |
Capacitive |
| Touch technology |
Multi-touch |
| Display technology |
IPS |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
13.2 cm (5.2") |
| Features |
|
| Supported video modes |
1080p, 1440p, 2160p, 3456p |
| Design |
|
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium |
| Product colour |
Brown |
| Ports & interfaces |
|
| 3.5 mm (1/8-inch) in |
Yes |
| Headphone out |
Yes |
| HDMI output |
Yes |
| HDMI in |
1 |
| HDMI ports quantity |
2 |
| Power |
|
| Power supply type |
Battery |
| Operational conditions |
|
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|
| Weight |
360 g |
| Height |
91.5 mm |
| Depth |
31 mm |
| Width |
151 mm |
| Packaging content |
|
| Manual |
Yes |
