A sudden puff of smoke can turn a routine day into a dangerous emergency, especially in busy commercial or residential spaces. The ATTOM Agile View M-S-SF Smoke Sensor is a compact, reliable detector that continuously monitors the air for early signs of fire, giving you the crucial minutes needed to act and protect people and property.

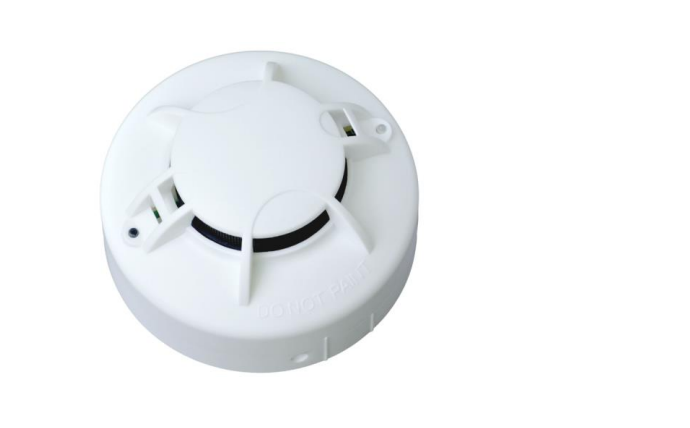

ATTOM Agile View M-S-SF Smoke Sensor - reliable detection when it matters most
Smoke can spread quickly, and unnoticed ignition can cause costly damage and jeopardise safety. This sensor tackles the problem by providing fast, accurate detection that integrates seamlessly with existing alarm systems. Its wide voltage range and low standby current mean it stays alert without draining power, while the adjustable sensitivity lets you fine-tune performance for different environments. The result is a dependable early-warning solution that keeps you in control.
Key Features of ATTOM Agile View M-S-SF Smoke Sensor
- Voltage: 9-28 VDC, Non-polarized - works with most low-voltage fire panels.
- Standby Current: 60 µA @ 24 VDC - minimal power draw keeps operating costs low.
- Maximum Alarm Current: 30 mA @ 24 VDC (LED On) - strong signal ensures the alarm is unmistakable.
- Adjustable Sensitivity: 0.15-0.3 dB/m - lets you set the detector to suit quiet or noisy environments.
- Operating Temperature: 10 °C to 50 °C - reliable performance across typical indoor climates.
- Operating Humidity: 10-93 % RH, Non-condensing - functions well even in humid conditions.
Specifications
|
Voltage
|
9–28 VDC, Non-polarized
|
|
Standby Current
|
60 µA @ 24 VDC
|
|
Maximum Alarm Current
|
30 mA @ 24 VDC (LED On)
|
|
Adjustable Sensitivity
|
0.15–0.3 dB/m
|
|
Operating Temperature
|
10°C to 50°C
|
|
Operating Humidity
|
10–93% RH, Non-condensing
|
|
Dimensions
|
Φ103 × 55 mm (Installed in Base)
|
|
Net Weight
|
0.155 kg (155 g)
|
