When you need reliable, real-time monitoring of battery systems without the clutter of a built-in screen, the ATTOM EM099 AgileView Edge 1U Rack/Wall Mount Without Display Monitoring Host steps in as the perfect solution. It gathers data from your BMS, presents it via an external touch display or web portal, and fits neatly into any rack or wall space, keeping your control room tidy and efficient.

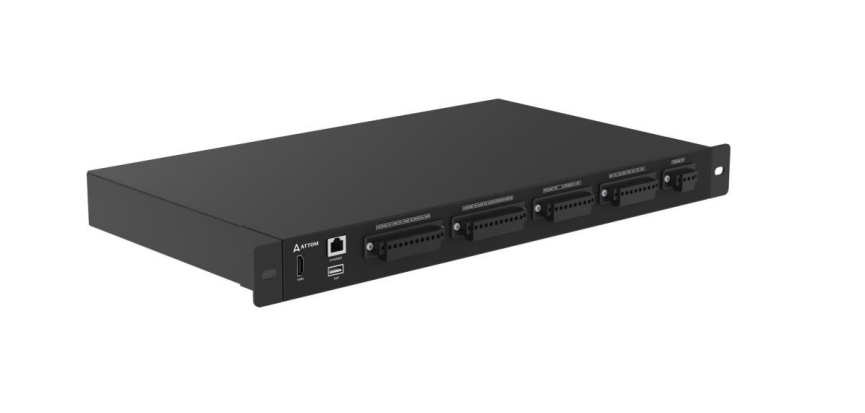

ATTOM EM099 AgileView Edge 1U Rack/Wall Mount Without Display Monitoring Host
Many facilities struggle with bulky monitoring units that take up valuable rack space and limit flexibility. A cramped rack can lead to overheating, difficult cable management and costly upgrades. The ATTOM EM099 AgileView Edge 1U Rack/Wall Mount Without Display Monitoring Host eliminates these issues by offering a compact 1U form factor that can be mounted either in a rack or on a wall. Its external touch display option and built-in web portal give you the freedom to view data wherever it suits you, while robust communication ports ensure seamless integration with existing battery management systems.
Key Features of ATTOM EM099 AgileView Edge 1U Rack/Wall Mount Without Display Monitoring Host
- Voltage: 12 VDC~24 VDC - flexible power options to match your infrastructure.
- Current: 3.0 A - sufficient draw for continuous operation.
- Display Panel: External touch display - choose a separate screen for interactive control.
- Web Portal: Built in - access data from any browser without extra software.
- Monitoring Ports for BMS: Modbus-TCP, SNMP - standard protocols for easy integration.
- RS232: 1 × RS232 - legacy serial connection for older devices.
- RS485: 5 × RS485 - multiple bus connections for extensive sensor networks.
- Digital Input: 6 × DI - monitor up to six discrete signals.
- Digital Output: 2 × DO - control two external devices directly.
- HDMI: 1 × HDMI - optional video output for external monitors.
- Network: 1 × 10/100M - reliable Ethernet link for data transfer.
- USB: 1 × USB 2.0 - convenient for firmware updates or peripheral attachment.
- Operating Temperature: -40°C~85°C - works in extreme cold or heat.
- Operating Humidity: 5%~95% RH, non-condensing - reliable in varied climate conditions.
Specifications
|
𝗜𝗻𝗽𝘂𝘁
|
|
|
Voltage
|
12 VDC~24 VDC
|
|
Current
|
3.0 A
|
|
𝗣𝗮𝗿𝗮𝗺𝗲𝘁𝗲𝗿𝘀
|
|
|
Display Panel
|
External touch display
|
|
Web Portal
|
Built in
|
|
Monitoring Ports for BMS
|
Modbus-TCP, SNMP
|
|
𝗜/𝗢 𝗣𝗼𝗿𝘁𝘀
|
|
|
RS232
|
1 × RS232
|
|
RS485
|
5 × RS485
|
|
Digital Input
|
6 × DI
|
|
Digital Output
|
2 × DO
|
|
HDMI
|
1 × HDMI
|
|
Network
|
1 × 10/100M
|
|
USB
|
1 × USB 2.0
|
|
𝗢𝗽𝗲𝗿𝗮𝘁𝗶𝗻𝗴 𝗘𝗻𝘃𝗶𝗿𝗼𝗻𝗺𝗲𝗻𝘁
|
|
|
Operating Temperature
|
-40°C~85°C
|
|
Operating Humidity
|
5%~95% RH, non-condensing
|
