Tired of lights that stay on all night or doors that never lock when you leave? The Attom M-S-IR Infrared Ray Detection Sensor solves those problems with smart motion control. It watches for people, then turns lights off, switches off equipment, or triggers alarms exactly when you need it. If you have wasted electricity or missed security alerts, this sensor gives you the power to stop that waste and protect your space.

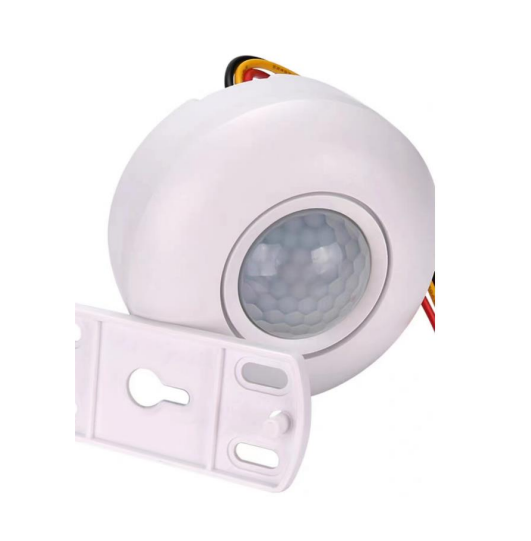

Attom M-S-IR Infrared Ray Detection Sensor
Every home or workplace needs a reliable way to know when someone enters a room. Without that knowledge, lights stay bright, heating runs uselessly, and security gaps appear. This sensor watches for human infrared motion, then lets you decide what happens next - turn off a light, shut down a machine, or sound an alarm. It removes the guesswork and saves energy while keeping you safe.
Key Features
- Power range 185 VAC-245 VAC for easy connection to standard circuits.
- Adjustable delay time from 16 seconds to 360 seconds.
- Light control adjustable from 5 LUX to 500 LUX.
- Detects human infrared motion only, reducing false triggers.
- Supports loads up to 1000 W, suitable for most lighting and small appliances.
- Ceiling mounting offers 360° coverage; wall mounting provides 120° view.
- Operates in temperatures from -0 °C to 40 °C and humidity 10 %-90 % RH.
- Robust construction suitable for indoor commercial and residential use.
Specifications
| Input |
|
| Power |
185VAC-245VAC |
| Parameters |
|
| Delay Time |
Adjustable 16s – 360s |
| Light Control |
Adjustable 5-500LUX |
| Action Type |
Human Infrared motion |
| Power |
≤1000W |
| Sensing Angles |
Ceiling 360 degrees, wall 120 degrees |
| Installation |
|
| Max. Installation Height |
Ceiling 3 meters, wall 1.5 meters |
| Operating environment |
|
| Operating Temperature |
-0°C~40°C |
| Operating Humidity |
10%~90%RH |
| Physical |
|
| Net Weight |
0.25kg |
