Power outages or voltage spikes can shut down critical servers in an instant, risking data loss and costly downtime. The Attom U-005R11E 5kVA Single-Phase Online Rack Mount UPS delivers clean, uninterrupted power to keep your equipment running smoothly, protecting valuable information and maintaining business continuity.

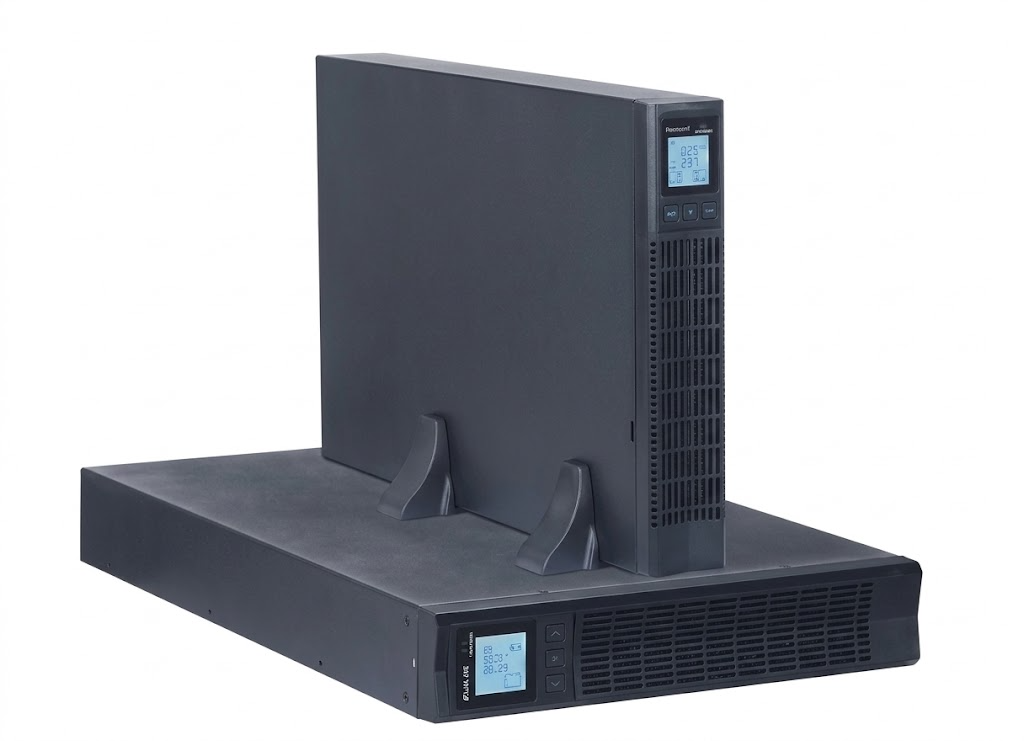

Attom U-005R11E 5kVA Single-Phase Online Rack Mount UPS
Unexpected power disturbances can cripple operations, especially in small to medium-size data centres or network closets. This UPS provides a seamless online conversion that isolates your devices from every fluctuation, ensuring a stable supply and safeguarding sensitive electronics. Its compact 3U rack-mount design fits neatly into standard racks, while the lithium-based battery offers long life and quick charging, giving you confidence that your systems stay online when it matters most.
Key Features of Attom U-005R11E 5kVA Single-Phase Online Rack Mount UPS
- Product Type: IEC Power Lithium Type UPS Single Phase - modern lithium technology for efficient energy storage
- Capacity: 5 kVA - enough power for medium-size loads
- Input Phase: 1 - single-phase connection simplifies installation
- Voltage: 208/220/230/240 VAC - supports common regional mains voltages
- Acceptable Voltage Range: 110-300 VAC - tolerates wide input fluctuations
- Frequency Range: 46-54 Hz or 56-64 Hz - compatible with both 50 Hz and 60 Hz systems
- Input Power Factor: ≥ 0.99 - maximises utilisation of incoming power
- Output Phase: 1 Phase - delivers stable single-phase output
- Output Voltage: 208/220/230/240 VAC - matches input for seamless transition
- Output Power Factor: 1.0 - ensures full power delivery to connected equipment
- AC Voltage Regulation: ±1% - maintains tight voltage control under load
- Current Crest Ratio: 3:1 - handles short-term surges without tripping
- Frequency: 50/60 Hz - operates on standard mains frequencies
- Harmonic Distortion: ≤ 3% (100% linear load) - keeps power clean for sensitive devices
- AC Mode: 94% - high efficiency during normal operation
- Battery Voltage: 48 VDC - robust lithium battery pack
- Charging Current: 50 A Max. - rapid recharge capability
- Monitoring Access: RS232, Optional SNMP - easy integration with existing management tools
Specifications
|
𝗚𝗲𝗻𝗲𝗿𝗮𝗹 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻
|
|
|
Product Type
|
IEC Power Lithium Type UPS Single Phase
|
|
Model
|
U-005R11E
|
|
Capacity
|
5 kVA
|
|
𝗜𝗻𝗽𝘂𝘁
|
|
|
Input Phase
|
1
|
|
Voltage
|
208/220/230/240 VAC
|
|
Acceptable Voltage Range
|
110-300 VAC
|
|
Frequency Range
|
46-54 Hz or 56-64 Hz
|
|
Input Power Factor
|
≥ 0.99
|
|
𝗢𝘂𝘁𝗽𝘂𝘁
|
|
|
Output Phase
|
1 Phase
|
|
Output Voltage
|
208/220/230/240 VAC
|
|
Output Power Factor
|
1.0
|
|
AC Voltage Regulation
|
±1%
|
|
Current Crest Ratio
|
3:1
|
|
Frequency
|
50/60 Hz
|
|
Harmonic Distortion
|
≤3% (100% linear load)
|
|
𝗘𝗳𝗳𝗶𝗰𝗶𝗲𝗻𝗰𝘆
|
|
|
AC Mode
|
94%
|
|
𝗕𝗮𝘁𝘁𝗲𝗿𝘆
|
|
|
Battery Voltage
|
48 VDC
|
|
Charging Current
|
50 A Max.
|
|
𝗘𝗻𝘃𝗶𝗿𝗼𝗻𝗺𝗲𝗻𝘁
|
|
|
Operational Condition
|
0-40°C, 0-95% RH (no condensing)
|
|
𝗣𝗵𝘆𝘀𝗶𝗰𝗮𝗹
|
|
|
Dimensions (W × D × H)
|
438 × 420 × 131 mm (3U)
|
|
Weight
|
13 kg
|
|
𝗠𝗮𝗻𝗮𝗴𝗲𝗺𝗲𝗻𝘁
|
|
|
Monitoring Access
|
RS232, Optional SNMP
|
