Looking for a computer that can run nonstop in a harsh factory floor without blowing a fuse? The AXIOMTEK IPC960A, Intel Q670E, IP40 Fanless Industrial PC is built for exactly that. It delivers desktop-class power in a sealed, fan-free case, so you never worry about dust, heat or moving parts breaking down. If your current PC stalls when the temperature rises or needs constant maintenance, this unit removes that risk and keeps your line running smoothly.

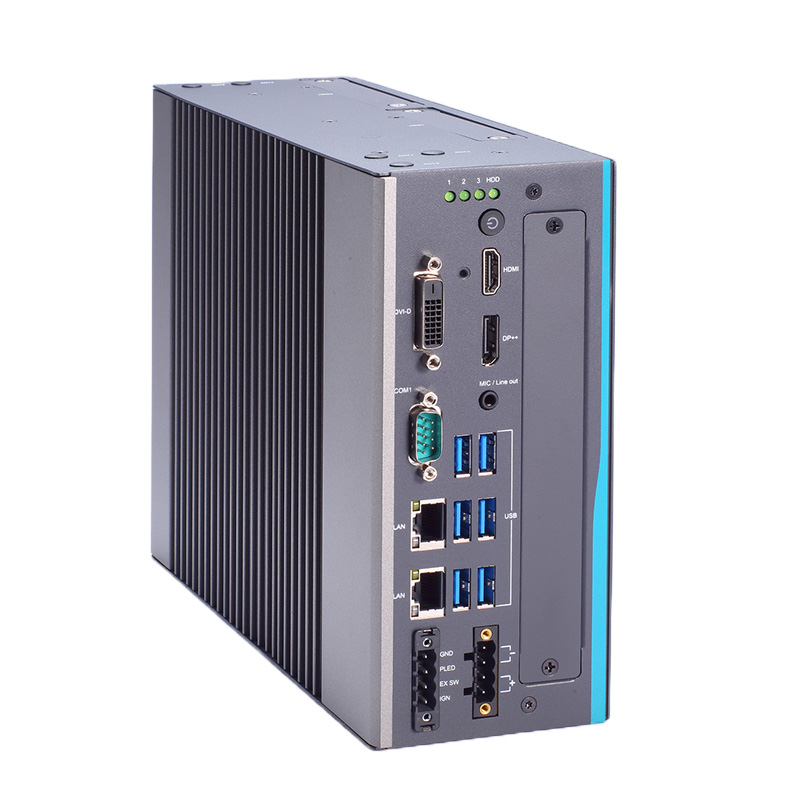

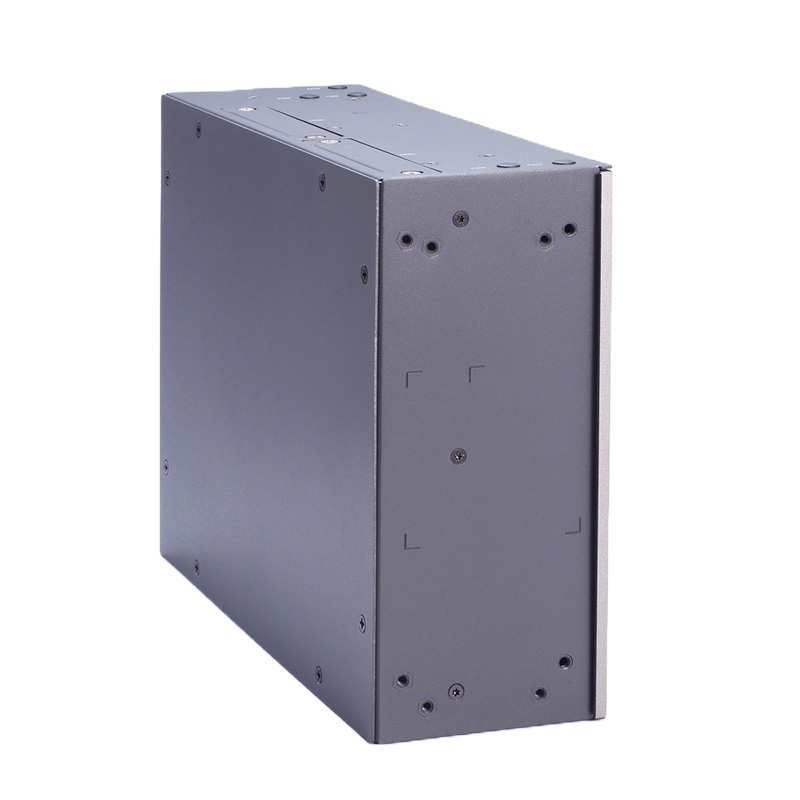

AXIOMTEK IPC960A, Intel Q670E, IP40 Fanless Industrial PC
Many industrial sites struggle with computers that overheat, need fans that fail, or cannot survive vibration and shock. When a controller stops, the whole process can halt, costing time and money. This AXIOMTEK model solves those issues by using a fanless aluminum-steel chassis, a rugged Intel Q670E chipset, and a powerful 14th-gen Core processor. The design keeps the system cool with passive cooling, while the IP40 rating protects against dust and accidental contact. The result is a reliable, maintenance-free computer that stays online even in extreme conditions.
Key Features
- Aluminum extrusion with heavy-duty cold-rolled steel frame.
- Up to 65 W 14th/13th/12th Gen Intel Core processor.
- 2 DDR5 4800 MHz SO-DIMM slots, up to 96 GB RAM.
- RS-232/422/485 serial port for legacy equipment.
- Power input 18-36 VDC, remote power control, and status LEDs.
- IP40 protection, MIL-STD-810H shock and vibration compliance.
Specifications
| Standard |
Silver & black |
| Construction |
Aluminum extrusion heavy-duty cold-rolled steel |
| Processor |
14th / 13th / 12th Gen Intel® Core™ processor, up to 65W |
| Chipset |
Intel® Q670E |
| System Memory |
2 × 262-pin DDR5 4800 non-ECC SO-DIMM, up to 96GB |
| Ethernet |
1 × 2.5GbE LAN (Intel® I226-V)
1 × GbE LAN (Intel® I219-LM with Intel® AMT)
|
| Serial |
1 × RS-232/422/485 (default RS-232, COM 1) |
| System I/O (USB) |
6 × USB 3.2 Gen 2 (10G) Type-A
1 × USB 2.0 internal
|
| Display Outputs |
1 × DisplayPort++ (up to 4096 × 2160)
1 × HDMI 1.4b (up to 4096 × 2160)
1 × DVI-D (up to 1920 × 1200)
|
| Audio |
1 × 3.5 mm Mic-in / Line-out jack |
| TPM |
TPM 2.0 |
| Expansion |
1 × full-size PCI Express Mini Card slot (USB & PCIe) with SIM slot |
| Storage |
2 × 2.5" HDD/SSD bay (RAID 0/1 support)
1 × M.2 Key M 2280 (PCIe x4 Gen4)
|
| System Indicators |
1 × HDD/SSD LED
3 × user LEDs
|
| Power Input |
18–36 VDC · 4-pin terminal block |
| Control I/O |
Power on/off button with LED, ignition control, remote power, remote LED
|
| Operating Temperature |
-20 °C to +60 °C (with 14th/13th/12th Gen Intel Core + industrial SSD, 0.7 m/s airflow) |
| Storage Temperature |
-20 °C to +80 °C |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration |
IEC 60068-2-64 · MIL-STD-810H (3Grms, 5–500 Hz) |
| Shock |
IEC 60068-2-27 · MIL-STD-810H (50G, 11 ms) |
| IP Rating |
IP40 (with connector cables installed) |
| Dimensions (W × D × H) |
83.5 × 192 × 260 mm |
| Weight |
4.2 kg (net) / 5.2 kg (gross) |
| Certifications |
CE (EN 61000-6-4 / EN 61000-6-2), FCC |
| OS Support |
Windows 10 / 11, Windows IoT, Linux |
| Features |
Fanless industrial system, intelligent power management, optional RAID,
optional mounting kits (DIN-rail, wall, bookshelf)
|
