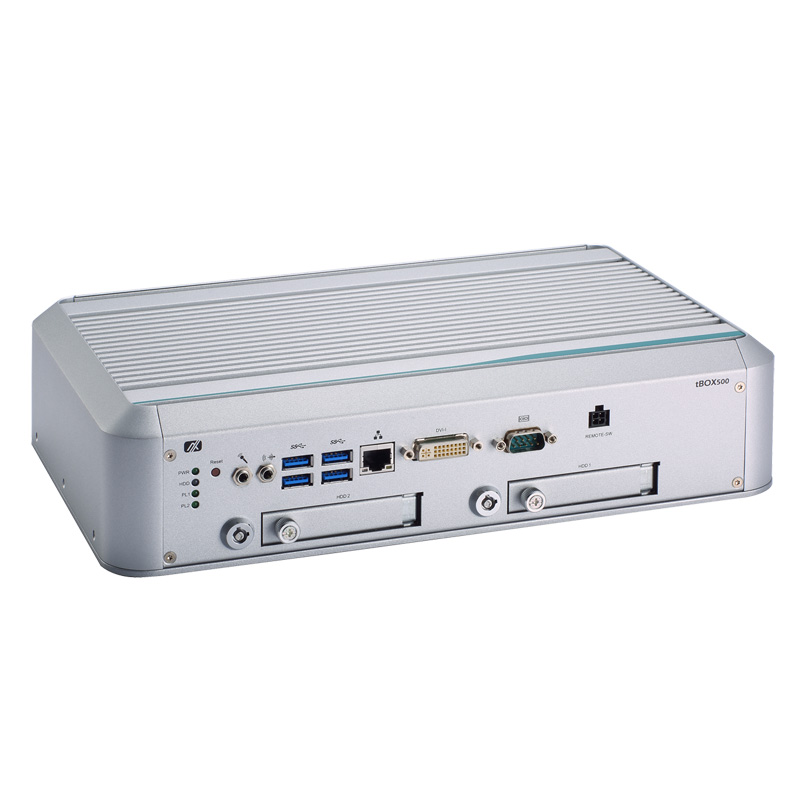

Axiomtek tBOX500-510-FL, Intel Core i7-7600U Marine Fanless Embedded PC
The Axiomtek tBOX500-510-FL is a marine fanless embedded PC powered by an Intel® Core™ i7-7600U processor. It provides 2 x DDR4-1866/2133 SO-DIMM slots with support for up to 32GB of memory, making it suitable for marine systems that require reliable computing performance in a compact embedded design.
The system uses an aluminum extrusion and heavy-duty steel construction with an IP30 rating. Its connectivity includes 1 x RJ-45 Gigabit Ethernet, 4 x USB 3.0, 1 x DVI-I display interface, serial communication, and audio connections for integrating different marine equipment and peripherals.

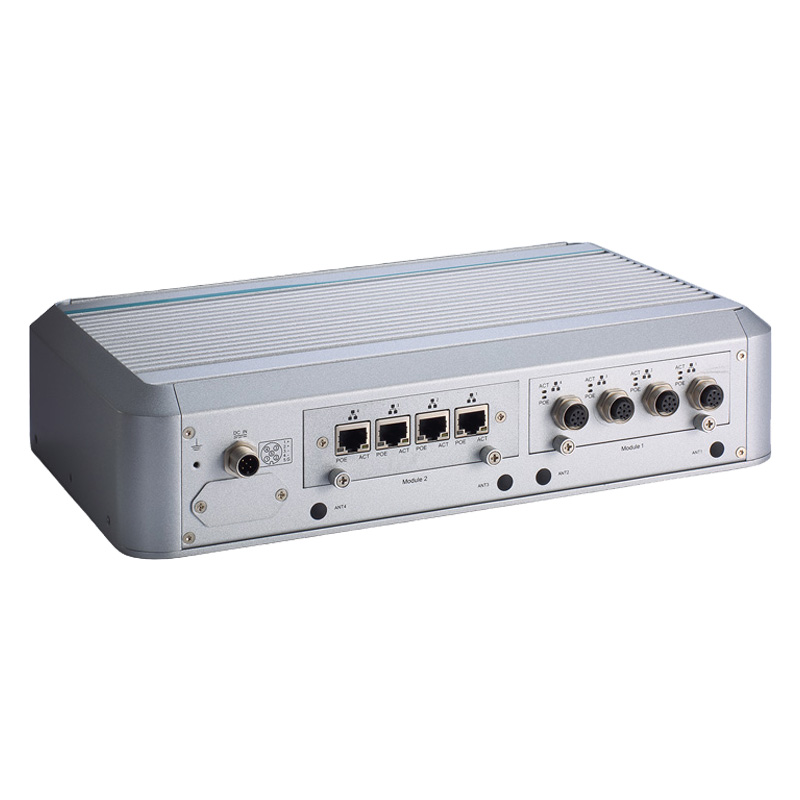

The tBOX500-510-FL provides flexible expansion through 3 x full-size PCI Express Mini Card slots and 2 x value-added module slots. It also supports 2 x swappable 2.5" SATA drives with Intel® RAID 0/1 and 1 x mSATA, allowing storage configurations to be adapted to different embedded system requirements.
For marine installations, the system provides a 24 VDC terminal block power supply option and supports operation from -40°C to +70°C with W.T. peripheral. It also supports 0% to 95% relative humidity, non-condensing, and offers wall mounting for installation in space-constrained environments.
The Axiomtek tBOX500-510-FL is designed for demanding transportation and marine environments, with certifications and compliance including IEC 60945, EN 50155, EN 45545-2, CE Class A, FCC Class A, and ISO 7637-2. Its vibration and shock specifications further support use in embedded marine and transportation applications.
Key Features
-
Intel® Core™ i7-7600U 2C @ 2.8 GHz processor with 15W TDP
-
2 x DDR4-1866/2133 SO-DIMM, up to 32GB
-
Aluminum extrusion and heavy-duty steel construction, IP30
-
4 x USB 3.0 and 1 x RJ-45 10/100/1000 Mbps Ethernet
-
3 x full-size Rev. 1.2 PCI Express Mini Card slots
-
2 x swappable 2.5" SATA drives with Intel® RAID 0/1 support
-
Marine 24 VDC power supply with terminal block
-
-40°C to +70°C operating temperature with W.T. peripheral
Specifications
| Processor |
|
| CPU |
Intel® Core™ i7-7600U 2C @ 2.8 GHz, TDP: 15W |
| Chipset |
SoC integrated |
| System Memory |
2 x DDR4-1866/2133 SO-DIMM, up to 32GB |
| BIOS |
AMI |
| TPM |
TPM 2.0 |
| Mechanical |
|
| Standard Color |
Silver |
| Construction |
Aluminum extrusion and heavy-duty steel, IP30 |
| I/O Interface |
|
| Serial |
1 x DB9 serial console or RS-232/422/485 |
| Display |
1 x DVI-I (up to 1920 x 1200 @ 60Hz, 1 x VGA & 1 x DVI included) |
| Audio |
1 x Mic-in, 1 x Line-out |
| Ethernet |
1 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT) |
| USB |
4 x USB 3.0 |
| Others |
1 x reset button, 1 x remote switch, 4 x antenna opening |
| Expansion & Storage |
|
| Expansion Interface |
3 x full-size Rev. 1.2 PCI Express Mini Card slot: 1 x mSATA/PCIe, 2 x USB/PCIe with SIM socket |
| Value-Added Module |
2 x value-added module slot |
| SATA Drive |
2 x swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported |
| mSATA |
1 x mSATA (occupied 1 x PCI Express Mini Card slot) |
| System Functions |
|
| Watchdog Timer |
255 levels, 1 to 255 sec. |
| System Indicator |
1 x LED indicator for power, 1 x LED indicator for SATA drive activity, 2 x Programmable |
| Power |
|
| Power Supply |
Railway: 1 x M12, 24 to 110 VDC; Vehicle: 1 x terminal block, 12/24 VDC with smart ignition;
Marine: 1 x terminal block, 24 VDC
|
| Environmental |
|
| Operating Temperature |
-40°C to +70°C (-40°F to +158°F) with W.T. peripheral* |
| Relative Humidity |
0% to 95% relative humidity, non-condensing |
| Physical |
|
| Dimensions (W x D x H) |
321 x 210.2 x 73.3 mm (12.64" x 8.28" x 2.89") |
| Mounting |
Wall mount |
| Weight |
3.5 kg (7.72 lb)/5.1 kg (11.24 lb) |
| Operating System |
|
| EOS Support |
Windows® 10 64-bit, Linux |
