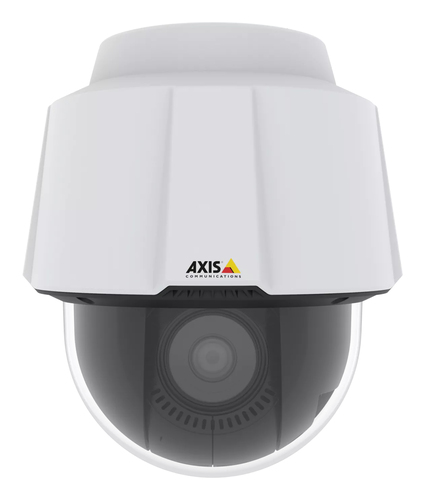

Axis 01681-001 indoor/outdoor wired IP camera with NEMA 4X and IK10 protection
Axis 01681-001 indoor/outdoor wired IP camera with NEMA 4X and IK10 protection
Axis 01681-001 indoor/outdoor wired IP camera with NEMA 4X and IK10 protection

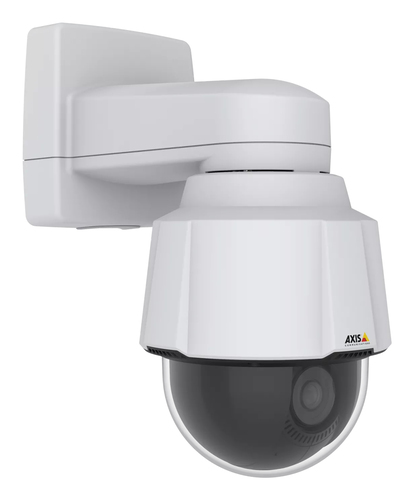

Axis 01681-001 ceiling/wall mount camera with Lightfinder 2.0 for low-light monitoring
Logo

Axis 01681-001 Indoor/Outdoor Wired IP Security Camera NEMA 4X Ceiling/Wall

In Stock

UK Free Shipping UK Free Shipping over £249

$2,498.99 exc. VAT Note: VAT will be charged for UK & EU Countries at checkout. For Zero VAT (for EU buyers), please provide a VAT number at checkout.

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Dispatch Time: Next Working Day

Product Code: CCEL-264

MPN #: 01681-001

Imagine a camera that never blurs, never quits, and works in rain, snow or dust. The Axis 01681-001 Indoor/Outdoor Wired IP Security Camera NEMA 4X Ceiling/Wall gives you that peace of mind. It records clear video whether you protect a store, a parking lot or a warehouse. If you have struggled with blurry night footage or cameras that fail after a storm, this unit solves those problems and keeps your site safe.



Axis 01681-001 Indoor/Outdoor Wired IP Security Camera NEMA 4X Ceiling/Wall

Many businesses lose valuable evidence because their cameras cannot handle harsh weather or sudden light changes. When a camera misses a detail, you risk theft, vandalism, or safety incidents. This Axis camera tackles the issue with a rugged NEMA 4X housing, IP66 rating and IK10 impact protection. The built-in 32 optical zoom, forensic WDR and Lightfinder 2.0 give you sharp images in bright sun or deep darkness, so you always see what matters.



Usages of Axis

Install the camera on a ceiling or wall to watch a retail floor, an outdoor loading dock, or a school playground. Use it for perimeter monitoring at a factory, for traffic observation at a parking garage, or for remote surveillance of a construction site. The two-way audio lets you speak to visitors or warn intruders. It also works well in low-light storage rooms where you need to see every movement.



Benefits
    • Clear images day and night reduce false alarms and help identify faces.
    • Rugged housing survives rain, dust, and accidental hits, lowering replacement costs.
    • 32 optical zoom lets you focus on distant objects without moving the camera.
    • Two-way audio adds a communication layer for security staff or visitors.
    • Easy wired installation integrates with existing network infrastructure.



Key Features
    • 1080p HDTV video at 60 fps for smooth playback.
    • Forensic Wide Dynamic Range keeps detail in bright and dark areas.
    • Lightfinder 2.0 captures color images in very low light.
    • IP66, NEMA 4X and IK10 ratings protect against weather and impact.
    • Pan 0-360, tilt 0-180 with 350/sec speed for fast repositioning.
    • 32 optical zoom and 12 digital zoom for distant subjects.
    • Two-way audio with 48 kHz sample rate for clear voice communication.
    • Secure boot, signed firmware and HTTPS encryption for data safety.
    • PoE and DC power options simplify installation.
    • Built-in SD card slot up to SDXC for local video storage.



Specifications
Performance
Certification NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 ClassIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, EC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267
Alarm input/output Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
Preset points Yes
PTZ control Yes
Connectivity technology Wired
Placement supported Indoor & outdoor
Type IP security camera
Design
Fog proof Yes
Weatherproof Yes
IK code IK10
International Protection (IP) code IP66
Protection features Shock resistant
Housing material Aluminium
Product colour Black, White
Mounting type Ceiling/wall
Form factor Dome
Camera
Camera shutter speed 1/66500 - 2 s
Pan speed 350 °/sec
Pan range 0 - 360°
Tilt speed 350 °/sec
Tilt angle range 0 - 180°
Lens viewing angle, vertical 35.7°
Lens viewing angle, horizontal 58.7°
Minimum illumination 0.02 lx
Camera tilt control Yes
Camera pan control Yes
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Number of sensors 1
Sensor type CMOS
Lens system
Maximum aperture number 4
Minimum aperture number 1.4
Auto focus Yes
Focal length range 4.3 - 137.6 mm
Digital zoom 12x
Optical zoom 32x
Zoom capability Yes
Number of lenses 1
Video
Bit rate control Variable Bit Rate (VBR)
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Image stabilizer Yes
Privacy masking Yes
Text caption overlay Yes
Video streaming Yes
Frame rate 60 fps
Supported video modes 1080p
Supported graphics resolutions 320 x 180, 1920 x 1080 (HD 1080)
Video formats supported AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Maximum resolution 1920 x 1080 pixels
Audio
Audio detection Yes
Sample rate 48 kHz
Audio formats supported ADPCM, LC-AAC, LPCM, PCM
Audio system 2-way
Network
Streaming method Multicast
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
Networking standards IEEE 802.1x, IEEE 802.3at
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Storage
Internal memory 1024 MB
Flash memory 512 MB
Compatible memory cards SD, SDHC, SDXC
Card reader integrated Yes
Ports & interfaces
DC-in jack Yes
Microphone in Yes
Ethernet LAN (RJ-45) ports 1
Security
HTTPS encryption Yes
IP address filtering Yes
Video motion detection Yes
Password protection Yes
Power
Power consumption (max) 19 W
Power consumption (typical) 10.5 W
Power source type DC, PoE
Operational conditions
Operating relative humidity (H-H) 10 - 100%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -30 - 55 °C
Weight & dimensions
Weight 2.5 kg
Height 217 mm
Depth 188 mm
Width 188 mm
Supplier features
Manufacturer Axis
Packaging content
Manual Yes
Mounting kit Yes
Number of cameras 1
Other features
Maximum resolution 1920 x 1080 pixels
