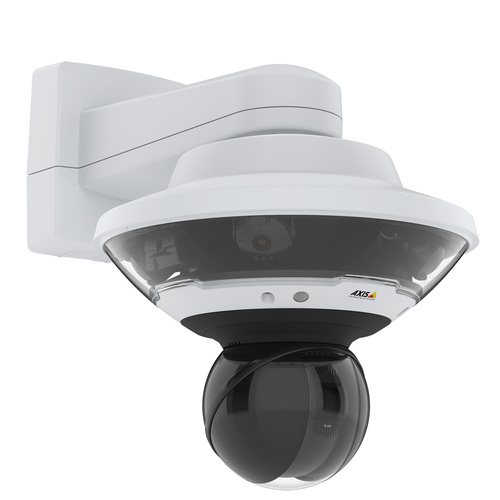

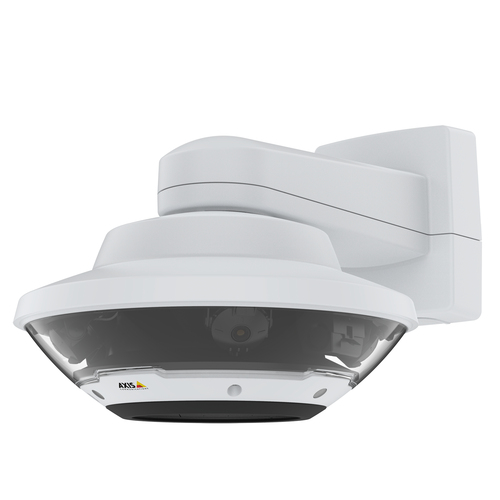

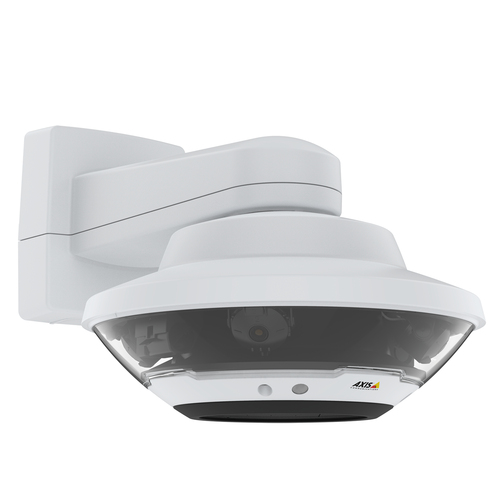

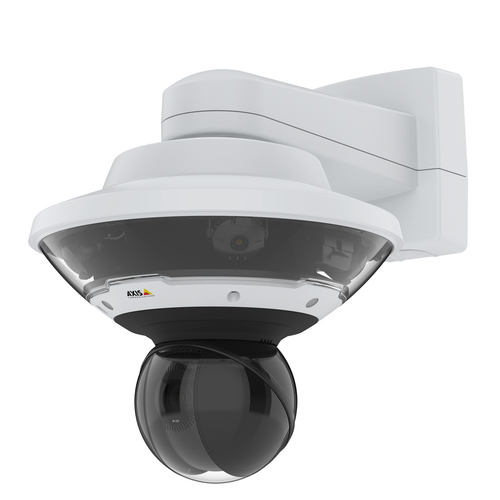

Axis 01710-001 Indoor Outdoor IP Security Camera Wired Wall Mount Black White

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CCEL-068

MPN #: 01710-001

Imagine a camera that never misses a detail, day or night, inside or out. The Axis 01710-001 Indoor Outdoor IP Security Camera Wired Wall Mount Black White does exactly that. It watches your home, shop, or office and sends clear video to your phone or computer. If you worry about blind spots, theft, or vandalism, this camera gives you the eyes you need.



Axis 01710-001 Indoor Outdoor IP Security Camera Wired Wall Mount Black White

You often lose control when a security camera cant cover the whole area or fails in low light. That leaves you vulnerable and uneasy. This problem matters because a single missed moment can mean a loss you cant recover. The Axis camera solves it with a 360 view, 5 MP sensors, and infrared capability, so you get reliable, high-resolution video wherever you need it.



Benefits
    • Full 360 coverage removes blind spots and reduces the number of cameras you need.
    • Crystal-clear 5 MP images help you identify faces and license plates instantly.
    • Night vision and low-light performance keep you protected 24/7.
    • PTZ control and autopilot track movement automatically, saving you time.
    • Weather-proof IP66 housing lets you install the camera outdoors without worry.



Usages

Install the Axis camera at the front door of a house to see every visitor and deter burglars. Mount it on a warehouse wall to monitor loading docks and catch any unauthorized entry. Use it in a retail store to watch aisles and cash registers, reducing shoplifting. Place it in a parking garage to capture license plates and guide traffic safely. The wired PoE connection makes installation simple in any indoor or outdoor setting.



Key Features
    • Four 5 MP sensors for a total of 20 MP resolution.
    • 360 field of view with 84 vertical lens angle.
    • IP66 and IK10 rating for dust, water, and vandal resistance.
    • Wide Dynamic Range (WDR) for balanced images in bright and dark areas.
    • Auto-focus 2.8 mm lens with f/2 aperture.
    • Variable Bit Rate (VBR) video compression supports H.264, H.265, and MPEG-4.
    • Audio detection that redirects PTZ to the sound source.
    • Privacy masking and text overlay for compliance and clarity.
    • Gigabit Ethernet PoE power, only 9 W typical consumption.
    • 512 MB internal storage with SD/SDHC/SDXC card slot.



Specifications
Performance
Certification EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
Preset points Yes
PTZ control Yes
Connectivity technology Wired
Placement supported Indoor & outdoor
Type IP security camera
Design
IK code IK10
International Protection (IP) code IP66
Housing material Aluminium, Polycarbonate (PC)
Product colour Black, White
Mounting type Wall
Form factor Dome
Camera
Camera shutter speed 1/32500 - 1/20 s
Lens viewing angle, vertical 84°
Field of view (FOV) angle 360°
Minimum illumination 0.003 lx
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.5 mm (1 / 2.5")
Number of sensors 4
Sensor type CMOS
Lens system
Fixed focal length 2.8 mm
Maximum aperture number 2
Auto focus Yes
Video
Bit rate control Variable Bit Rate (VBR)
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Privacy masking Yes
Text caption overlay Yes
Video streaming Yes
Frame rate 20 fps
Supported graphics resolutions 320 x 240, 2592 x 1944
Video compression formats AVC, H.264, H.265, HEVC, MPEG4
Total megapixels 20 MP
Maximum resolution 2592 x 1944 pixels
Audio
Audio detection Yes
Network
Streaming method Multicast
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1, Syslog
Networking standards IEEE 802.1x
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN Yes
Storage
Flash memory 512 MB
Compatible memory cards SD, SDHC, SDXC
Card reader integrated Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Active tampering alarm Yes
Alert notification type E-mail
Video motion detection Yes
Power
Power consumption (Power over Ethernet (PoE)) 9 W
Power consumption (max) 23 W
Power source type PoE
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 100%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -50 - 50 °C
Weight & dimensions
Weight 4 kg
Height 192 mm
Depth 361 mm
Width 361 mm
Supplier features
Manufacturer Axis Communications
Other features
Maximum resolution 2592 x 1944 pixels
