Keeping a building safe means you need eyes that work day and night, even when weather is harsh. Many low-cost cameras blur in low light, can be easily broken, or give you blind spots that let trouble slip by. When you miss a detail, you miss the chance to stop a theft or protect people. The Axis 01766-001 Wired IP Security Camera gives you clear, uninterrupted video, strong metal housing, and night vision so you never lose sight of what matters.
Axis 01766-001 Wired IP Security Camera Outdoor Ceiling/Wall Stainless steel with Axis

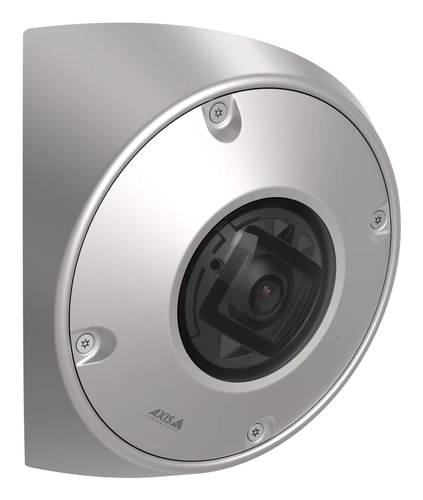

This camera is a compact, stainless-steel dome that mounts on a ceiling or wall outside any facility. It records 4 MP video with a 125 horizontal and 95 vertical view, so there are no blind spots. If darkness falls, invisible IR LEDs light the scene up to 15 m, giving you clear footage even at midnight. You get wired PoE power, built-in microphone, and strong IK10+ and IP66/69 protection, so vandals and weather cannot stop it. Axis makes the hardware reliable and the software easy to manage.
Usages
Install the unit above a parking lot to watch cars entering and leaving, or place it on a warehouse wall to monitor loading docks. It works well on school campuses, hospital corridors, or retail storefronts where you need a discreet eye that can also record sound. The cameras PTZ control lets you sweep a large area from a single point, and the privacy mask lets you hide windows or private zones while still covering the rest of the scene.
Benefits
- Clear 4 MP video with wide view eliminates blind spots, so you always see what happens.
- Invisible IR illumination provides color-like detail at night, keeping your site safe 24 hours.
- Rugged stainless-steel housing and IK10+ rating resist vandalism and harsh weather, reducing maintenance.
- Built-in microphone and two-way audio let you hear and speak, useful for deterrence or remote assistance.
- PoE power simplifies wiring and lowers installation cost, letting you add the camera quickly.
Key Features
- 4 MP sensor with 1/2.5" CMOS for sharp images
- 125 horizontal and 95 vertical field of view
- Invisible IR LEDs reach up to 15 m in total darkness
- Wide Dynamic Range (WDR) balances bright and dark areas
- PTZ control for remote pan, tilt and zoom
- IP66, IP69K and IK10+ protection against water and impact
- Built-in microphone and 2-way audio (48 kHz)
- Signed firmware and TPM security (FIPS 140-2 level 2)
- PoE (802.3af/at) power up to 10.8 W
- MicroSD slot up to 256 GB for local storage
Specifications
| Performance |
| Certification |
EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4X NIST SP500-267 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10+ |
| International Protection (IP) code |
IP66, IP69, IP69K |
| Housing material |
Stainless steel |
| Product colour |
Stainless steel |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/32500 - 1/5 s |
| Lens viewing angle, vertical |
95° |
| Lens viewing angle, horizontal |
125° |
| Minimum illumination |
0 lx |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.5 mm (1 / 2.5") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.4 mm |
| Maximum aperture number |
2 |
| Fixed focus |
Yes |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
940 nm |
| LED type |
IR |
| Night vision distance |
15 m |
| Night vision |
Yes |
| Video |
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
320 x 240, 2304 x 1728 |
| Video compression formats |
AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution |
2304 x 1728 pixels |
| Audio |
| Voice codecs |
G.711, G.726, OPUS |
| Built-in microphone |
Yes |
| Sample rate |
48 kHz |
| Audio system full duplex |
Yes |
| Audio system |
2-way |
| Network |
| Supported network protocols |
IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Terminal block port |
Yes |
| HDMI ports quantity |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Security algorithms |
EAP-TLS, FIPS 140-2 |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
10.8 W |
| Power consumption (typical) |
4.7 W |
| Power source type |
PoE |
| Weight & dimensions |
| Weight |
1.6 kg |
| Height |
131 mm |
| Depth |
176 mm |
| Width |
209 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2304 x 1728 pixels |
