Imagine a camera that can see every corner of a room, even in total darkness, and lets you control the view from anywhere. The Axis 02113-001 Indoor Wired Digital PTZ IP Camera Ceiling/Wall Multilingual does exactly that. It is a compact, wired IP camera that can be mounted on a ceiling or wall and offers digital pan-tilt-zoom. Many businesses struggle with blind spots and low-light footage that misses important details. This camera solves those problems so you can protect your space with clear, reliable video.

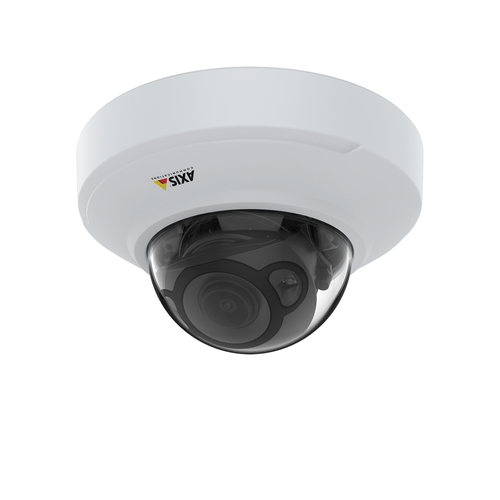

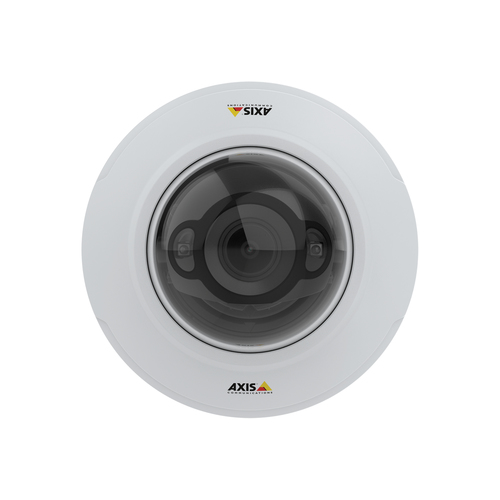

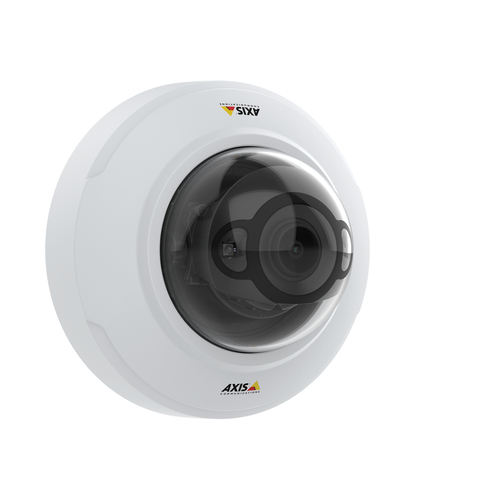

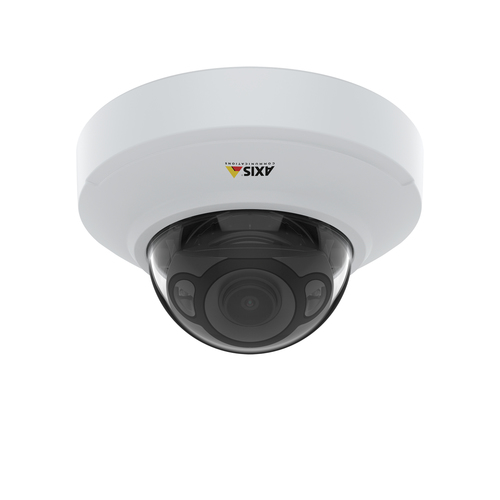

Axis 02113-001 Indoor Wired Digital PTZ IP Camera Ceiling/Wall Multilingual
You need a camera that works in both day and night and that can be adjusted without moving hardware. Without such a tool, you risk missing incidents or spending time rewiring cameras. This Axis model removes those worries. It offers digital PTZ, so you can zoom in, pan left or right, and tilt up or down from a single device. The built-in infrared, wide dynamic range, and deep learning processor give you sharp images and smart alerts. All of this runs over a wired PoE connection, keeping installation simple and secure.
Usages of Axis
The camera fits in retail stores to watch aisles and cash registers. It works in offices to monitor entrances and conference rooms. Schools can place it in hallways to keep an eye on student traffic. Hospitals use it in waiting areas where privacy masking is required. Any indoor space that needs flexible, high-quality surveillance can benefit from this device.
Benefits
- Clear images day and night help you see every detail when it matters.
- Digital PTZ lets you cover a large area with one camera, saving cost.
- Multilingual interface makes setup easy for teams around the world.
- Built-in motion detection and tamper alarm send instant alerts to your phone.
- PoE power reduces cable clutter and simplifies installation.
Key Features
- 4 MP sensor with 2304 1728 max resolution.
- 3-6 mm motorized lens with optical zoom.
- Infrared night vision up to 20 m.
- Wide Dynamic Range for balanced exposure.
- Digital pan range -180 to 180, tilt -40 to 65.
- HDMI output for local monitoring.
- Supports H.264 and H.265 video compression.
- 11 language options including English, Spanish, Chinese and more.
- Active tampering alarm and HTTPS encryption for security.
- PoE power consumption max 9.7 W, typical 5 W.
Specifications
| Performance |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Number of languages |
11 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
| IK code |
IK08 |
| International Protection (IP) code |
IP42 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/37500 - 1/5 s |
| Pan range |
-180 - 180° |
| Tilt angle range |
-40 - 65° |
| Minimum illumination |
0.18 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
3 - 6 mm |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
855 nm |
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported video modes |
720p, 1080p |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
4 MP |
| Maximum resolution |
2304 x 1728 pixels |
| Network |
| Quality of Service (QoS) support |
Yes |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP, CDP, MQTT v3.1.1 |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
1024 MB |
| Flash memory |
512 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Built-in SSD |
No |
| Built-in HDD |
No |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail, Text alert message |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Security algorithms |
EAP-TLS |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
9.7 W |
| Power consumption (typical) |
5 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| System requirements |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Weight |
375 g |
| Diameter |
12.1 cm |
| Height |
71 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Doesn't contain |
BFR, PVC |
| Maximum resolution |
2304 x 1728 pixels |
