Imagine missing a critical event because your camera cant see in low light or far away. The Axis 02225-001 Indoor/Outdoor Digital PTZ IP Camera Wired EN/CISPR Compliant gives you crystal-clear 4K video, powerful zoom and night vision, so you never lose a detail. It solves the common problem of blurry, unreliable footage in harsh weather or busy sites. If you need a camera that works day and night, indoors and outdoors, and protects your data, this device is made for you.
Axis 02225-001 Indoor/Outdoor Digital PTZ IP Camera Wired EN/CISPR Compliant
Many users struggle with cameras that flicker in bright sunlight, lose color in shadows, or get damaged by rain and dust. That problem hurts security, slows investigations and raises false alarms. This Axis camera eliminates those issues by delivering forensic-grade Wide Dynamic Range, a weatherproof metal dome, and built-in tamper alerts. It gives you a single, reliable eye that can pan, tilt and zoom digitally, while keeping video encrypted and stored safely. The result is clear, actionable footage you can trust, no matter the environment.
Benefits
- 4K resolution lets you read license plates and facial features from a distance.
- Lightfinder 2.0 and OptimizedIR provide bright images even in near-dark conditions.
- Digital PTZ lets you cover large areas with one camera, reducing hardware costs.
- IP66 and IK10+ rating protect the unit from rain, dust, and vandalism.
- Built-in cybersecurity features keep your video stream safe from hackers.
Usages
Use this camera at a retail store entrance to capture clear images of every shopper, even at night. Install it on a factory roof to monitor the entire perimeter, with the ability to zoom in on any breach instantly. Place it in a parking garage to record vehicle movements and detect suspicious behavior. It also works well in schools, hospitals or public squares where you need reliable indoor and outdoor coverage without blind spots.
Key Features
- 3840 2160 pixel 8 MP sensor for ultra-high definition video.
- Forensic WDR maintains detail in both bright and dark areas.
- 6.2-12.9 mm motorized lens with optical zoom.

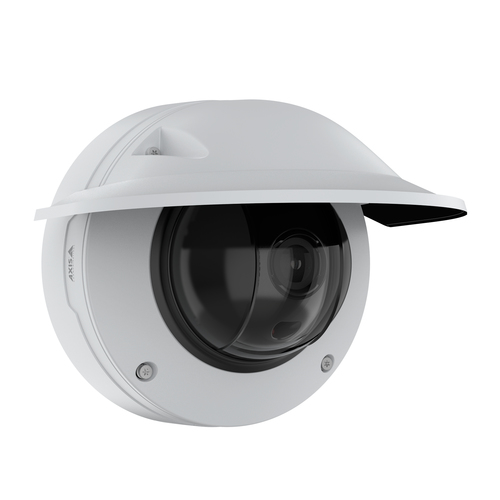

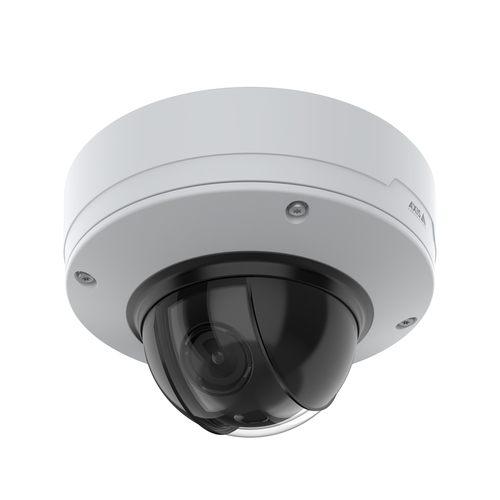

- IR-shielded dome prevents reflections and ensures clean night vision.
- PoE power simplifies installation and reduces cable clutter.
- Redundant power and built-in shock sensor for added reliability.
- Axis Edge Vault and TPM FIPS 140-2 level 2 encrypt stored footage.
- Object analytics preinstalled for human and vehicle classification.
- 60 fps streaming supports smooth playback and fast motion capture.
- MicroSD/HC/XC slot up to 8194 MB for local recording.
- Privacy masking lets you hide sensitive zones from view.
- Audio detection and built-in microphone capture sound events.
Specifications
| Performance |
| Certification |
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| Weatherproof |
Yes |
| IK code |
IK10+ |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/66500 - 2 s |
| Tilt angle range |
-43 - 80° |
| Minimum illumination |
0.07 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
6.2 - 12.9 mm |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision |
Yes |
| Video |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Video recording |
Yes |
| Video formats supported |
H.264, H.265 |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Audio detection |
Yes |
| Built-in microphone |
Yes |
| Audio formats supported |
AAC-LC, G.711, G.726, OPUS |
| Network |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2048 MB |
| Flash memory |
8194 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| HTTPS encryption |
Yes |
| Human and vehicle targets classification |
Yes |
| IP address filtering |
Yes |
| Pixel counter |
Yes |
| Power |
| Power consumption (max) |
23 W |
| Power consumption (typical) |
9 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-50 - 60 °C |
| Weight & dimensions |
| Weight |
2.1 kg |
| Diameter |
18.3 cm |
| Height |
124 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Manual |
Yes |
| Drilling template included |
Yes |
| Mounting brackets included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
