Finding a camera that works well in bright daylight and dark rooms is hard. Poor image quality lets intruders slip by and makes it difficult to see details when an incident happens. You need a reliable indoor camera that captures clear video at any light level and lets you watch from anywhere. The Axis 02331-001 Indoor Digital PTZ IP Camera Wired Multilingual EN Compliant gives you sharp images, smart analytics and strong security, so you can protect your space without guessing.

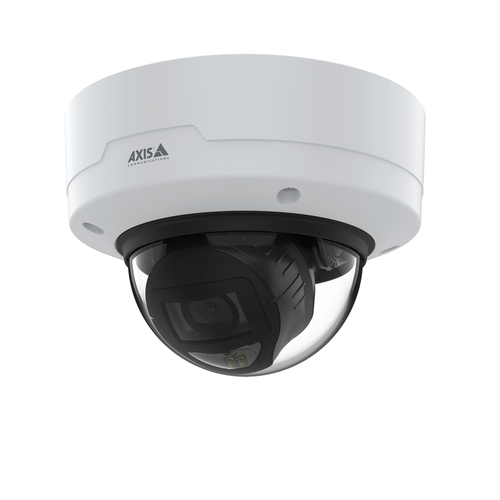

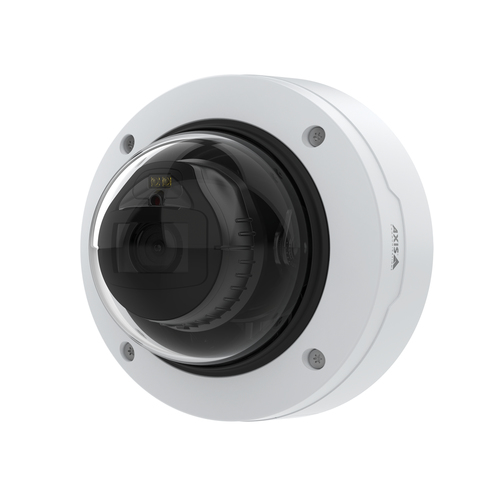

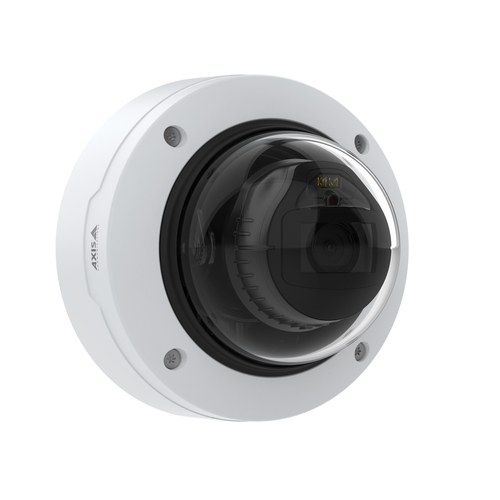

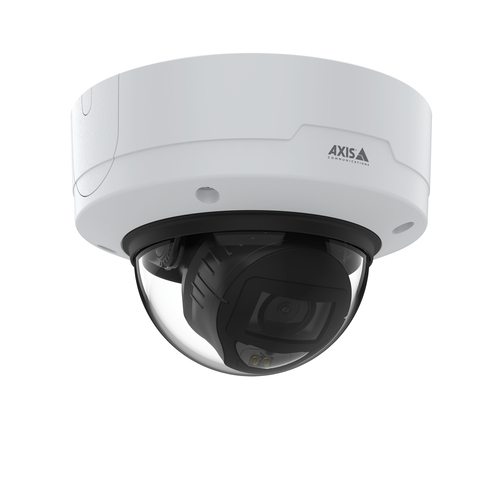

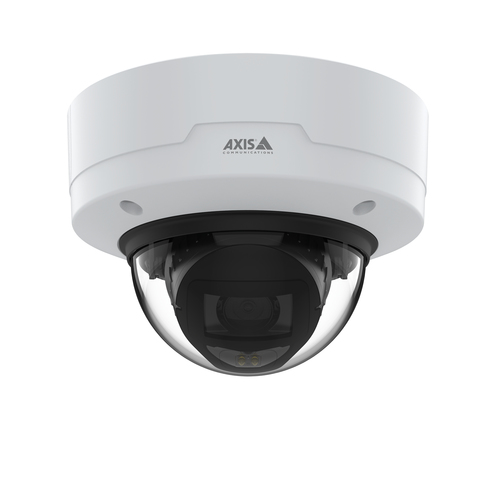

Axis 02331-001 Indoor Digital PTZ IP Camera Wired Multilingual EN Compliant with Axis
Imagine a camera that never misses a detail, whether its a busy lobby or a quiet hallway. This Axis product is an indoor digital PTZ IP camera that you connect with a wired Ethernet cable. It records in 4K, pans and tilts digitally, and speaks twelve languages, so your team can set it up quickly. If you worry about blind spots, low-light footage or unauthorized access, this camera solves those issues with Lightfinder 2.0, forensic WDR and built-in cybersecurity.
Usages
Use it in a corporate reception to watch guests and detect suspicious behavior. Install it in a retail store to count customers, spot shoplifting and review incidents after hours. It works well in schools, hospitals or warehouses where you need clear day and night vision. The camera can be mounted on a ceiling or wall, and its digital PTZ lets you cover a large area without moving the device.
Benefits
- Crystal-clear video in any lighting saves you time reviewing footage.
- Deep-learning analytics automatically label people and vehicles, reducing manual monitoring.
- Multi-language interface lets international teams configure the camera fast.
- Built-in cyber security protects your network from hacking attempts.
- PoE power simplifies installation and reduces cabling costs.
Key Features
- Lightfinder 2.0 for bright images in low light.
- Forensic Wide Dynamic Range captures detail in high contrast scenes.
- OptimizedIR extends night vision up to 40 m.
- Digital PTZ with 190 pan and 80 tilt range.
- 8 MP sensor delivering 3840 2160 resolution at 30 fps.
- Object analytics that detect and classify humans and vehicles.
- EN-compliant design with IK10 impact protection and IP52 rating.
- Audio detection and multiple audio formats for sound alerts.
- Secure PoE power, up to 10 W, with built-in tamper alarm.
- Extensive network support including IPv4/IPv6, HTTPS, TLS and QoS.
Specifications
| Performance |
| Certification |
EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP52 |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/8500 - 1/5 s |
| Pan range |
-190 - 190° |
| Tilt angle range |
-10 - 80° |
| Angle of rotation |
190° |
| Minimum illumination |
0.14 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
4.3–8.6 |
| Zoom capability |
Yes |
| Night vision |
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
40 m |
| Night vision |
Yes |
| Video |
| Bit rate control |
Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Text caption overlay |
Yes |
| Gain control type |
Auto |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video recording |
Yes |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Audio detection |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Network |
| Quality of Service (QoS) support |
Yes |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2048 MB |
| Flash memory |
8192 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Terminal block port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
256-bit AES-XTS, EAP-TLS |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Power |
| Power consumption (max) |
10 W |
| Power consumption (typical) |
5.5 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
800 g |
| Diameter |
14.9 cm |
| Height |
107 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Doesn't contain |
BFR, PVC |
| Maximum resolution |
3840 x 2160 pixels |
