Product Code: CCEL-125
MPN #: 02413-001

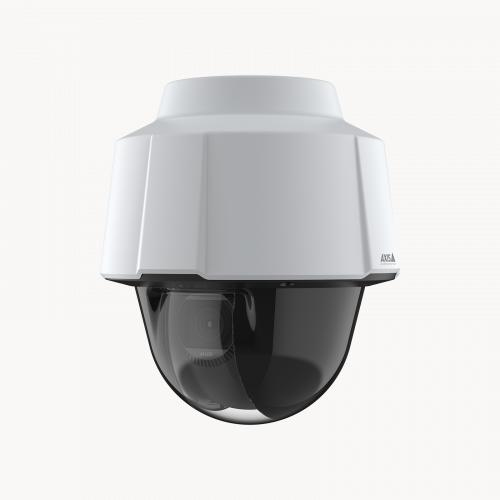

Imagine trying to watch a large parking lot at night and missing a car that slips away. The Axis 02413-001 Outdoor PTZ IP Security Camera Wired Preset Point ARTPEC-4 gives you crystal clear video from far distances, even in darkness. It is built for outdoor security, so you can protect a property, a warehouse, or a campus without blind spots. If you need reliable detail and remote control, this camera is the answer.
Many users struggle with cameras that cannot see far enough or lose quality when light changes. That problem creates security gaps and forces you to install many cheap devices. The Axis camera solves this by delivering 4 MP images, 30 optical zoom and built-in infrared that reaches 200 m. It also adds forensic WDR and Lightfinder 2.0 so colors stay true and moving objects stay sharp, day or night. With preset points and auto-tracking you can focus on any area with a single click, reducing blind spots and saving you time.
The camera works well in parking structures where you need to read license plates from a distance. It fits perimeter fences, giving you a 360 view when mounted on a Q6100-E dome. Retail stores can use it to monitor entrances and loading bays without adding extra lenses. Industrial sites benefit from its rugged IP66 and IK10 housing, while city planners can place it on street poles for traffic and crowd monitoring. Anywhere you need clear detail over a large area, this camera delivers.
| Performance | |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Number of languages | 12 |
| Built-in processor | Yes |
| Processor model | ARTPEC-4 |
| Remote viewing | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| Auto-tracking | Yes |
| PTZ modes | Preset point |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Bulb |
| Camera | |
| Camera shutter speed | 1/50000 - 1/5 s |
| Camera shutter type | Electronic |
| Camera pixel size | 2.9 µm |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 90° |
| Lens viewing angle, vertical | 34.4° |
| Lens viewing angle, horizontal | 57.1° |
| Field of view (FOV) angle | 57.1° |
| Minimum illumination | 0.1 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Focal length range | 4.5 - 135 mm |
| Digital zoom | 12x |
| Optical zoom | 30x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
| LED type | IR |
| Night vision distance | 200 m |
| Night vision | Yes |
| Video | |
| Bit rate control | Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Image stabilizer | Yes |
| Privacy masking | Yes |
| Gain control type | Auto |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Frame rate | 60 fps |
| Video recording | Yes |
| Supported graphics resolutions | 2688 x 1512 |
| Video compression formats | AVC, H.264, H.265, HEVC |
| Total megapixels | 4 MP |
| Maximum resolution | 2688 x 1512 pixels |
| Audio | |
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio output channels | 1.0 channels |
| Audio input channels | 1.0 channels |
| Audio system | 2-way |
| Network | |
| Live view | Yes |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1x |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| DC-in jack | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Alert notification type | E-mail, Text alert message |
| Digest authentication | Yes |
| IP address filtering | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Security algorithms | 256-bit AES-XTS, FIPS 140-2 |
| Video motion detection | Yes |
| Password protection | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| DC output voltage | 10, 24, 28 |
| Power consumption (max) | 30 W |
| Power consumption (typical) | 12 W |
| Power source type | DC, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -30 - 50 °C |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Diameter | 20.5 cm |
| Height | 242 mm |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | REACH, RoHS |
| Sustainability certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 2688 x 1512 pixels |
