Finding a camera that can see clearly in bright sun, heavy rain, or total darkness is hard. When a camera misses a detail, you lose control of your property and risk costly damage. The Axis 02463-001 Indoor Outdoor Digital PTZ IP Security Camera Wired Ceiling White solves this by giving you 4K video, night vision, and a tough housing that works inside and out. It lets you watch, record, and act on every event, so you protect people, assets, and peace of mind.

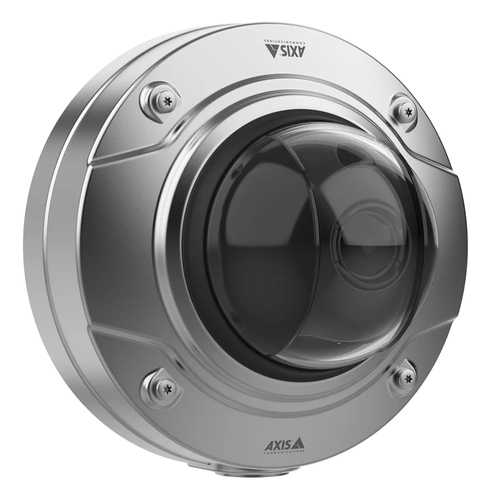

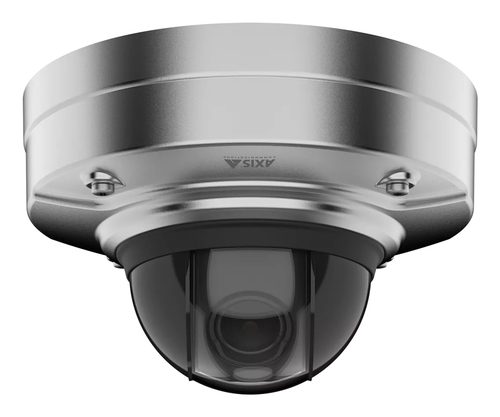

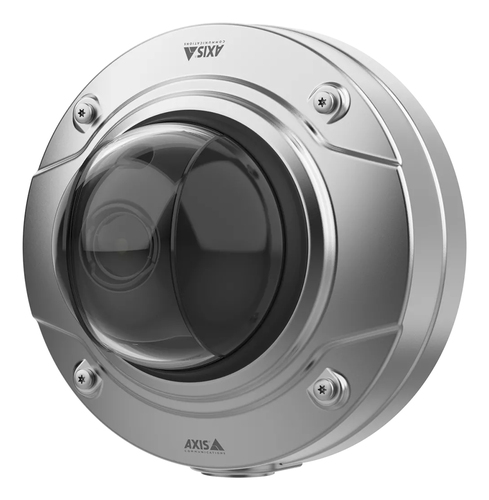

Axis 02463-001 Indoor Outdoor Digital PTZ IP Security Camera Wired Ceiling White with Axis
You need a camera that never blinks, even when the weather turns harsh. This Axis camera is a digital PTZ unit that can pan, tilt, and zoom to cover large areas from a single spot. It records in crystal-clear 4K and uses built-in analytics to tell you when a person or vehicle appears. If you worry about blind spots or missed alerts, this camera fills the gaps and keeps you informed.
Usages
Mount it on a warehouse ceiling to watch loading docks and catch unauthorized entry. Install it on a wall at a marina to monitor boats, detect vandalism, and survive salty spray. Place it in a retail store to count shoppers, stop shoplifting, and protect the parking lot after dark. It also works well in schools, hospitals, and government buildings where you need both indoor and outdoor coverage.
Benefits
- 4K resolution lets you read license plates and see faces from far away.
- Digital PTZ covers a wide area, reducing the need for many cameras.
- On-board analytics send only real events, saving you time reviewing footage.
- Weatherproof housing survives rain, dust, and salty air without failing.
- Built-in security features protect your network from hacking attempts.
Key Features

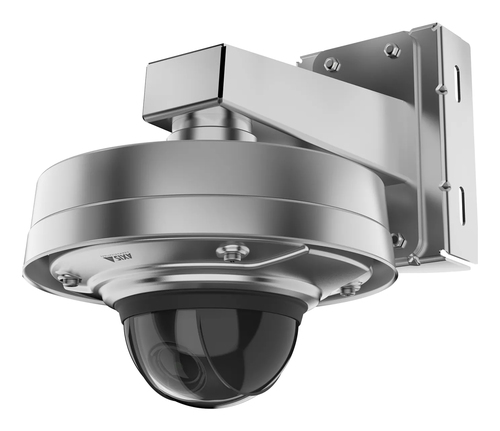

- Marine-grade stainless steel housing with IP66 and IP69K protection.
- IK10 impact rating for resistance to vandalism.
- 8 MP 4K sensor with motorized 6.2-12.9 mm zoom lens.
- Wide Dynamic Range and infrared night vision down to 0.07 lx.
- Digital PTZ control for pan, tilt, and zoom.
- Deep learning processor runs object detection on the edge.
- PoE power, 23 W max, 9 W typical, easy wiring.
- 2048 MB internal memory plus up to 8 GB microSD for local storage.
- HTTPS encryption, tamper alarm, and IP address filtering for cyber safety.
- Built-in microphone with audio detection and multiple audio codecs.
Specifications
| Performance |
| Certification |
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| Weatherproof |
Yes |
| IK code |
IK10+ |
| International Protection (IP) code |
IP66, IP69K |
| Product colour |
Silver |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/66500 - 2 s |
| Tilt angle range |
-43 - 80° |
| Minimum illumination |
0.07 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
6.2 - 12.9 mm |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision |
Yes |
| Video |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Video recording |
Yes |
| Video formats supported |
H.264, H.265 |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Audio detection |
Yes |
| Built-in microphone |
Yes |
| Audio formats supported |
AAC-LC, G.711, G.726, OPUS |
| Network |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3at |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2048 MB |
| Flash memory |
8194 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| HTTPS encryption |
Yes |
| Human and vehicle targets classification |
Yes |
| IP address filtering |
Yes |
| Pixel counter |
Yes |
| Power |
| Power consumption (max) |
23 W |
| Power consumption (typical) |
9 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-50 - 60 °C |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Manual |
Yes |
| Drilling template included |
Yes |
| Mounting brackets included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
