Imagine a camera that never misses a detail, whether it is bright daylight or near darkness. The Axis 02483-001 Indoor/Outdoor Wired Digital PTZ Box IP Camera Wall Black/White gives you that confidence. It is a compact box camera that you can mount on a wall and connect with a single cable. If you worry about blind spots, power loss, or unclear video, this camera solves those problems for you.

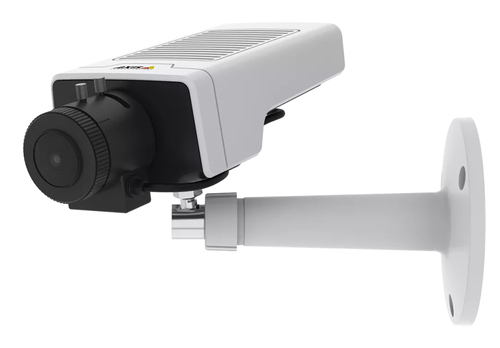

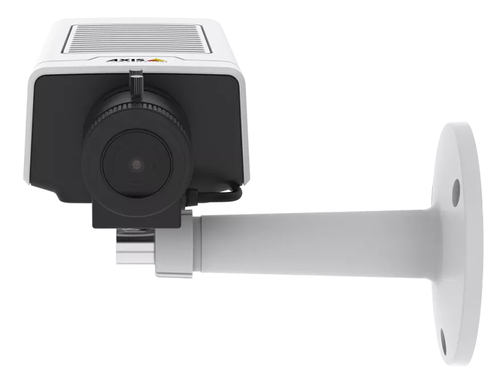

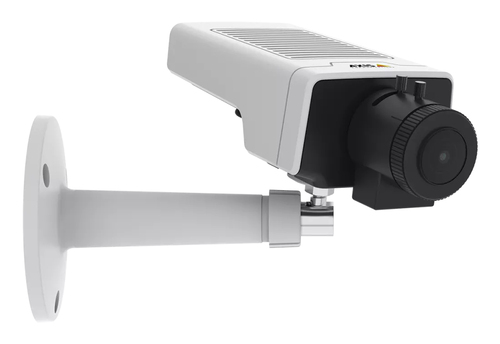

Axis 02483-001 Indoor/Outdoor Wired Digital PTZ Box IP Camera Wall Black/White
Many users struggle with cameras that lose color accuracy at night or stop working when the power goes out. That creates security gaps and wasted footage. This Axis model fixes the issue by combining Lightfinder technology, forensic WDR, and PoE with redundant DC power. The result is clear, true-color video day and night, and continuous operation even during a power failure. You get reliable monitoring without extra hardware.
Usages of Axis
The camera works well on a storefront, watching customers and deliveries. It can be placed on a building wall to protect a parking lot, detecting cars and people. Inside a warehouse it monitors aisles and loading docks, while the built-in microphone records sound for added context. Because it supports both indoor and outdoor mounting, you can use it for a home office, a school hallway, or a remote gate.
Benefits
- Clear video in low light saves you from missing important events.
- Power over Ethernet reduces cable clutter and eases installation.
- Two-way audio lets you listen and speak, adding a layer of interaction.
- Object analytics automatically spot people and vehicles, cutting down manual review.
- Zipstream compression lowers bandwidth and storage costs.
Key Features
- Digital PTZ provides smooth zoom and pan without moving parts.
- 1920 1080 full HD resolution captures fine detail.
- Lightfinder and forensic WDR deliver true colors in challenging light.
- Night vision works down to 0.1 lx for almost dark scenes.
- CS-mount allows interchangeable lenses from 3 mm to 10.5 mm.
- Built-in 2-way microphone records sound with video.
- Axis Object Analytics preinstalled for human and vehicle detection.
- PoE and redundant DC power keep the camera running during outages.
- Active tampering alarm alerts you if the camera is moved or covered.
- Operating temperature from -20 C to 50 C suits most environments.
Specifications
| Performance |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Design |
| Product colour |
Black, White |
| Mounting type |
Wall |
| Form factor |
Box |
| Camera |
| Camera shutter speed |
1/33500 - 2 s |
| Minimum illumination |
0.1 lx |
| Image sensor |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
3 - 10.5 mm |
| Night vision |
| Night vision |
Yes |
| Video |
| Frame rate |
30 fps |
| Maximum resolution |
1920 x 1080 pixels |
| Audio |
| Audio system |
2-way |
| Network |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Storage |
| Flash memory |
512 MB |
| Security |
| Active tampering alarm |
Yes |
| Power |
| Power over Ethernet (PoE) |
Yes |
| DC output voltage |
10, 12, 15, 16, 24, 28 |
| Power consumption (Power over Ethernet (PoE)) |
4.5 W |
| Power consumption (max) |
6.6 W |
| Power consumption (typical) |
4.4 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 50 °C |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
1920 x 1080 pixels |
| Technical details |
| Night mode |
Yes |
