Name: Axis (02621-001), 10G Ethernet (100/1000/10000), PoE, Managed Switch
Brand: Axis Communications
SKU: SWHO-432
Price: 1439.99 USD
Availability: InStock

Axis (02621-001), 10G Ethernet (100/1000/10000), PoE, Managed Switch

In Stock

UK Free Shipping

$1,439.99 exc. VAT

Description
Documents
Reviews

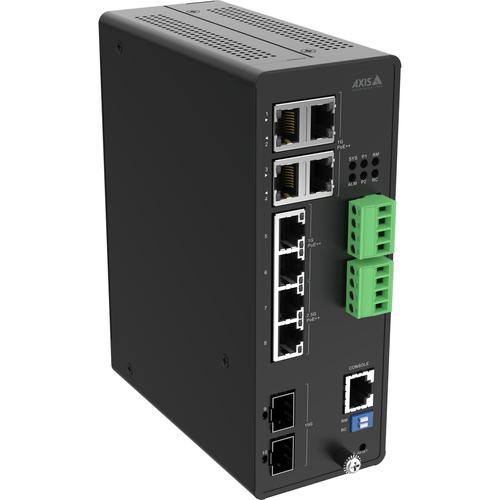

This rugged 8-port switch is ideal for demanding installations. Designed to withstand shock and vibrations, it can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Each port can deliver up to 90 W PoE++ (IEEE 802.3bt) with a total power budget of 480 W. Plus, it also supports fiber ensuring flexible long-distance installations. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8208-R ensures easy configuration with Axis products.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Ports & interfaces
Console port	RJ-45
Installed SFP+ modules quantity	2
2.5G Ethernet (copper) ports quantity	2
Gigabit Ethernet (copper) ports quantity	6
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Network
Virtual LAN features	Private VLAN
VLAN support	Yes
10G support	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Data transmission
Jumbo frames	10240
Jumbo frames support	Yes
Throughput	46.12 Mpps
Throughput	46.12 Mpps
Switching capacity	62 Gbit/s
MAC address table	16000 entries
Security
Password protection	Yes
Security algorithms	HTTPS
Access Control List (ACL)	Yes
DHCP features	DHCP snooping
Protocols
Supported network protocols	IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP
Design
Housing material	Aluminium
Product colour	Black
Power
Power source	DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	480 W
Power over Ethernet (PoE) power per port	90 W
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 60 °C
Weight & dimensions
Weight	892 g
Height	168 mm
Depth	130 mm
Width	62 mm
Certificates
Certification	EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 ed. 3 Environment IEC 60068-2-6, IEC 60068-2-27, NEMA TS 2 (2.2.7-2.2.9), 60068-2-31 (Free fall - Procedure 1), IEC/EN 60529 IP30
