Product Code: CCEL-160
MPN #: 02677-001

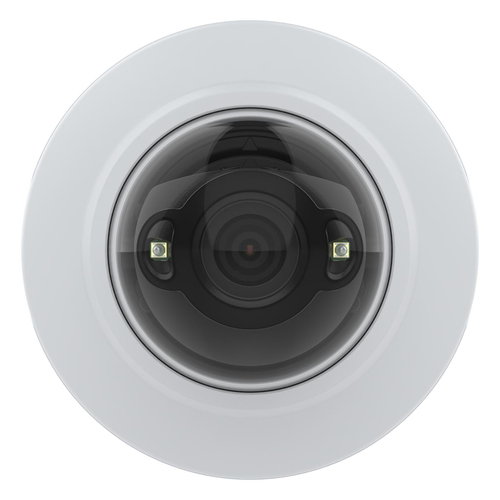

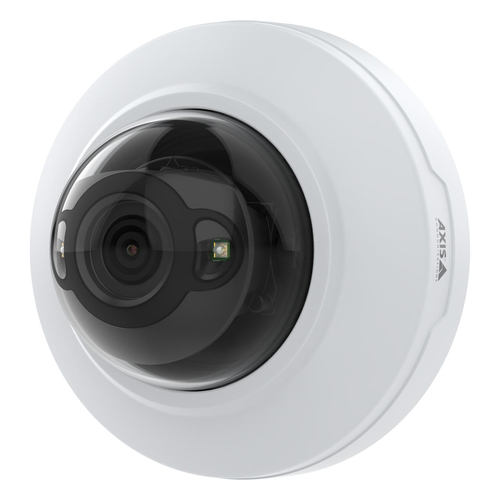

Many businesses and homes need a camera that can see clearly in any light and stay safe from hacking. When a camera gives blurry pictures or can be tampered with, you lose trust in your security system and may miss important events. The Axis 02677-001 Indoor Digital PTZ IP Security Camera Wired Ceiling White solves both problems with sharp 2 MP video, built-in deep-learning analytics and hardware-based Edge Vault protection.
Imagine a camera that never blurs, never misses a face and never lets an intruder steal your footage. This Axis dome is a wired ceiling camera that delivers 1080p video, remote zoom and auto-focus, plus intelligent analytics that run on the device itself. If you worry about dark corners, bright windows or cyber attacks, this camera gives you clear images, night-time visibility and strong security in one discreet package.
The camera fits perfectly in retail stores to watch aisles and cash registers. It works well in offices to monitor meeting rooms and entryways. Schools can place it in hallways for student safety. It also suits hospitals, banks and any indoor area where you need reliable, tamper-proof surveillance without a bulky look.
| Performance | |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 19 |
| Built-in processor | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
| IK code | IK08 |
| International Protection (IP) code | IP42 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/25000 - 1/5 s |
| Pan range | -180 - 180° |
| Tilt angle range | -40 - 65° |
| Lens viewing angle, vertical | 50 - 26° |
| Lens viewing angle, horizontal | 93 - 47° |
| Angle of rotation | 105° |
| Minimum illumination | 0.14 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Lens system | |
| Maximum aperture number | 2.6 |
| Minimum aperture number | 1.7 |
| Zoom capability | Yes |
| Night vision | |
| Night vision | No |
| Video | |
| Privacy masking | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video recording | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Video motion detection | Yes |
| Password protection | Yes |
| Power | |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power consumption (max) | 9.5 W |
| Power source type | PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -30 - 65 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Weight | 366 g |
| Diameter | 12 cm |
| Height | 71 mm |
| Supplier features | |
| Manufacturer | Axis |
| Packaging content | |
| Packaging content | Owner authentication key, virtual client license for H.264/H.265 |
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 1920 x 1080 pixels |
