Product Code: CCEL-301
MPN #: 02897-001

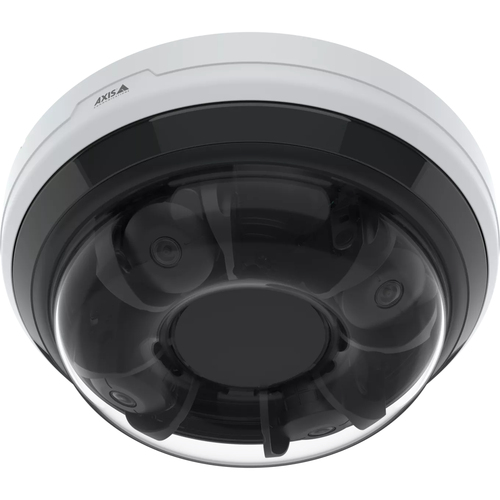

Finding a camera that can watch a large outdoor area, work day and night, and still be easy to install is hard. If the view is blurry or the camera stops working in rain, you lose security and waste money. The Axis 02897-001 Wired IP Security Camera solves these issues with clear 5 MP images, 20 m night vision and a simple ceiling mount that can be set up without a technician.
Watch every corner of a parking lot, warehouse or school yard with one smart camera. This device is a four-channel IP camera that records 5 MP video, even in total darkness, and lets you move the view remotely. You need it when a single blind spot could let a thief or vandal slip by, and you want a reliable, weather-proof solution that works with many languages.
Install the camera on a ceiling in a parking garage to see every car and capture license plates. Mount it on a warehouse roof to monitor loading docks and detect unauthorized trucks. Use it at a school entrance to watch children arrive and leave safely. The same unit can protect a retail stores outdoor queue and help a city monitor a public square.
| Performance | |
| Languages support | Arabic, Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 19 |
| Built-in light | Yes |
| Remote viewing | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Maximum operating distance | 20 m |
| Preset points | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| LED indicators | Activity |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/19500 - 1 s |
| Camera pixel size | 2 µm |
| Lens viewing angle, vertical | 71.5 - 30.0° |
| Lens viewing angle, horizontal | 360° |
| Horizontal field of view (thermal module) | 360° |
| Minimum illumination | 0.1 lx |
| Camera tilt control | Yes |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.78 mm (1 / 2.78") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Sensor type (panoramic camera) | CMOS |
| Lens system | |
| Fixed focus | Yes |
| Focus | Motorized |
| Focal length range | 3.18 - 7.42 mm |
| Zoom capability | Yes |
| Number of lenses | 3 |
| Night vision | |
| Infra-red wavelength | 850 nm |
| Number of illumination LEDs | 2 |
| LED type | IR |
| Night vision distance | 20 m |
| Night vision | Yes |
| Video | |
| Bit rate control | Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Image stabilizer | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Frame rate | 20 fps |
| Video recording | Yes |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 2560 x 1440, 2592 x 1944 |
| Video compression formats | M-JPEG, MPEG, MPEG4 |
| Video formats supported | H.264, H.265 |
| Total megapixels | 5 MP |
| Maximum resolution | 2592 x 1944 pixels |
| Audio | |
| Audio detection | Yes |
| Frequency range | 50 - 60 Hz |
| Audio formats supported | RTSP |
| Audio output channels | 2.0 channels |
| Audio input channels | 2.0 channels |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
| Number of simultaneous live view channels | 4 channels |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
| RAM capacity | 4096 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Motion sensor | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Privacy protection | Yes |
| Security algorithms | 256-bit AES-XTS, FIPS 140-2, HTTPS, SNMP |
| Video motion detection | Yes |
| Password protection | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power consumption (max) | 23.7 W |
| Power consumption (typical) | 10.8 W |
| Power source type | PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 50 °C |
| Weight & dimensions | |
| Weight | 3 kg |
| Height | 75 mm |
| Depth | 220 mm |
| Width | 141 mm |
| Features | |
| License plate recognition | Yes |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL |
| Packaging content | |
| Manual | Yes |
| Memory card included | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | BFR, CFR, PVC |
| Maximum resolution | 2592 x 1944 pixels |
| Warranty period | 5 year(s) |
