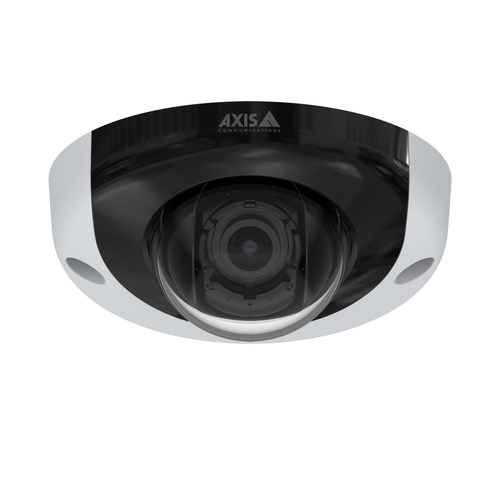

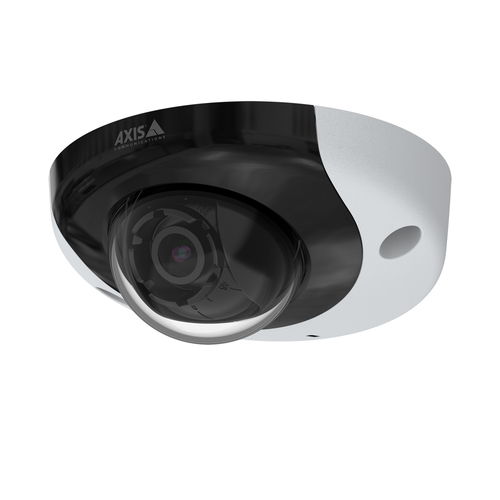

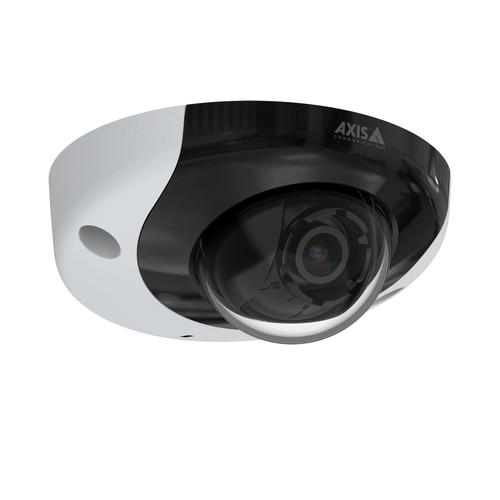

Axis 01932-021 digital PTZ IP security dome camera ceiling mount black
Axis 01932-021 digital PTZ IP security dome camera ceiling mount black
Axis 01932-021 digital PTZ IP security dome camera ceiling mount black
Axis 01932-021 wired network dome surveillance camera angled view
Logo

Axis Communications 01932-021 Digital PTZ IP Security Camera Wired Ceiling Black

In Stock

UK Free Shipping UK Free Shipping over £249

$6,285.99 exc. VAT Note: VAT will be charged for UK & EU Countries at checkout. For Zero VAT (for EU buyers), please provide a VAT number at checkout.

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Dispatch Time: Next Working Day

Product Code: CCEL-144

MPN #: 01932-021

When you cannot see every corner of a bus, warehouse or store, thieves and vandals find places to act unnoticed. That blind spot can lead to loss of goods, damage to property and a feeling that safety is out of reach. The Axis Communications 01932-021 Digital PTZ IP Security Camera Wired Ceiling Black fills that gap. It gives you clear, real-time video from a ceiling mount, lets you move the view with digital PTZ and runs on a single PoE cable, so you get full coverage without extra wiring.



Axis Communications 01932-021 Digital PTZ IP Security Camera Wired Ceiling Black with Axis

Imagine watching every door, aisle and loading zone from one spot. This camera is a 2 MP dome that sits on a ceiling and streams HD video over an IP network. It is built for tough environments, so dust, rain or impact wont stop it. If you worry about missing a critical moment because a camera cannot turn, the digital PTZ lets you set preset positions and jump instantly to the exact view you need. That is why many transport operators and retailers choose this Axis solution.



Usages

The camera fits on the ceiling of buses, trains and trams to watch passenger areas and driver cabins. It also works in warehouses where you need to monitor loading docks, aisles and high shelves. Retail stores use it to keep an eye on sales floors, entrances and cash registers. Schools place it in corridors to see who is moving between classes. Because it runs on PoE, installation is quick in any location that has Ethernet.



Benefits
    • Sharp color video day and night helps you spot problems fast.
    • Digital PTZ covers large areas with one camera, saving cost.
    • Rugged dome and IP66/67 rating keep it working in harsh weather.
    • Built-in microphone adds audio context to video events.
    • PoE power reduces wiring complexity and lowers installation expense.



Key Features
    • 2 MP sensor with 1920 1080 resolution.
    • Axis Lightfinder and Forensic WDR for true colors in bright and dark light.
    • Invisible 940 nm IR LEDs provide up to 15 m night vision.
    • 350 pan and 90 tilt range with digital PTZ presets.
    • IK10 vandal resistance and IP66/67 protection.
    • Power over Ethernet (PoE) with QoS for smooth streaming.
    • H.264, H.265 and M-JPEG compression saves bandwidth.
    • 48 kHz audio input for clear sound capture.
    • Privacy masking and motion detection for privacy and alerts.
    • 512 MB internal storage plus SD card slot for local backup.



Specifications
Performance
Certification EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155 Class OT2/ST2 (2017 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, NIST SP500-267
Day/night mode Yes
Wide Dynamic Range (WDR) Yes
Preset points Yes
PTZ modes Digital PTZ
PTZ control Yes
Connectivity technology Wired
Type IP security camera
Design
Fog proof Yes
IK code IK10
International Protection (IP) code IP66, IP67
Housing material Aluminium
Product colour Black, White
Mounting type Ceiling
Form factor Dome
Camera
Pan range -30 - 30°
Tilt angle range 15 - 90°
Lens viewing angle, vertical 62°
Lens viewing angle, horizontal 110°
Angle of rotation 350°
Minimum illumination 0.01 lx
Camera tilt control Yes
Camera pan control Yes
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.9 mm (1 / 2.9")
Number of sensors 1
Sensor type CMOS
Lens system
Fixed focal length 2.8 mm
Number of lenses 1
Night vision
Infra-red wavelength 940 nm
LED type IR
Night vision distance 15 m
Night vision Yes
Video
Bit rate control Variable Bit Rate (VBR)
Image quality adjustment Brightness, Contrast, Sharpness
Image stabilizer Yes
Privacy masking Yes
Text caption overlay Yes
Video streaming Yes
Frame rate 45 fps
Supported graphics resolutions 160 x 120, 160 x 90, 1280 x 960, 1920 x 1080 (HD 1080)
Video compression formats AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Total megapixels 2 MP
Maximum resolution 1920 x 1080 pixels
Audio
Sample rate 48 kHz
Audio formats supported AAC-LC, G.711, LPCM, PCM
Audio system 1-way
Network
Quality of Service (QoS) support Yes
Streaming method Multicast
Number of users 8 user(s)
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Storage
Flash memory 512 MB
Card reader integrated Yes
Ports & interfaces
Microphone in Yes
Security
Active tampering alarm Yes
HTTPS encryption Yes
IP address filtering Yes
Video motion detection Yes
Password protection Yes
Power
Power consumption (max) 11.8 W
Power consumption (typical) 6.6 W
Power source type PoE
Operational conditions
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -40 - 55 °C
Weight & dimensions
Weight 410 g
Height 49.4 mm
Depth 110 mm
Width 110 mm
Supplier features
Manufacturer Axis
Packaging content
Manual Yes
Number of cameras 10
Other features
Maximum resolution 1920 x 1080 pixels
