Product Code: CCEL-229
MPN #: 02920-001

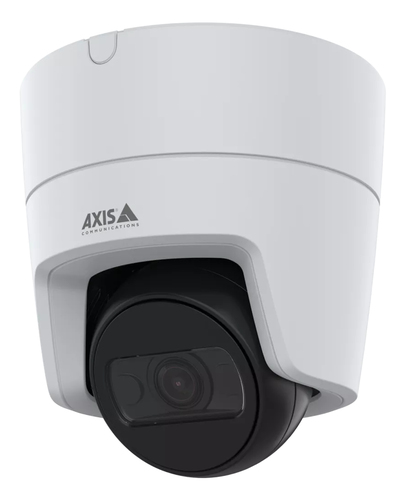

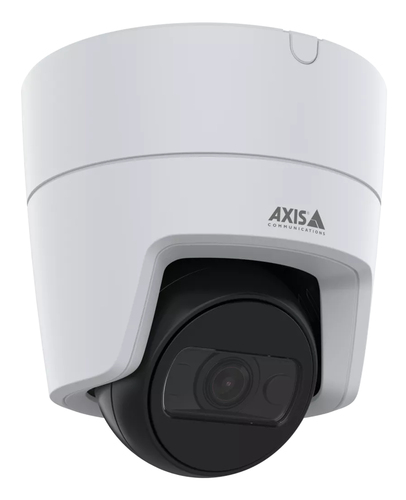

Imagine a night where you can see every detail around your building, even in total darkness, and know exactly who or what is moving. The Axis M3128-LVE Outdoor Wired Digital PTZ IP Security Camera Ceiling Mount gives you that power. It is a high-resolution dome camera that you can mount on a ceiling or wall, and it works both inside and out. If you have struggled with blurry footage, blind spots, or weak night vision, this camera solves those problems so you can protect your property with confidence.
Many businesses and homes face the risk of missed incidents because their cameras cannot cover a wide area or work in low light. When a camera fails to capture clear images, you lose valuable evidence and peace of mind. This Axis model eliminates those gaps with an 8 MP sensor, a 110 degree field of view, and built-in infrared that lights up the scene up to 20 meters. The digital PTZ lets you pan and tilt remotely, so you can focus on any spot without moving the hardware.
The camera fits in retail stores to watch aisles and entrances, in warehouses to monitor loading docks, and in office buildings to protect lobbies and stairwells. It works well for schools that need to keep hallways safe, for parking lots where vehicle detection matters, and for outdoor sites such as construction yards that face harsh weather. Because it can be mounted on a ceiling, it stays out of reach while covering a large area.
| Performance | |
| Certification | CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 Class A, KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| Weatherproof | Yes |
| IK code | IK08 |
| International Protection (IP) code | IP66 |
| Protection features | Impact resistant, Weather resistant |
| Housing material | Plastic |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/71500 - 2 s |
| Camera pixel size | 1.45 µm |
| Pan range | -180 - 180° |
| Tilt angle range | 0 - 60° |
| Angle of rotation | 95° |
| Horizontal field of view (thermal module) | 110° |
| Vertical field of view (thermal module) | 60° |
| Minimum illumination | 0.22 lx |
| Image sensor | |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Sensor type (panoramic camera) | CMOS |
| Lens system | |
| Detect distance (wide) | 80 m |
| Identify distance (wide) | 8 m |
| Normal focusing range | 0.5 m |
| Observe distance (wide) | 31.7 m |
| Recognize distance (wide) | 16 m |
| Focal length range | 2.9 mm |
| Number of lenses | 1 |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 20 m |
| Night vision | Yes |
| Video | |
| Video streaming | Yes |
| Frame rate | 15 fps |
| Supported video modes | 1080p |
| Supported graphics resolutions | 160 x 90, 3840 x 2160 |
| Video compression formats | MPEG, MPEG4 |
| Video formats supported | AVC, H.264, H.265, HEVC |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, LPCM, PCM |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Storage | |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Security | |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection, Vehicle detection |
| Pixel counter | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
| Password protection | Yes |
| Power | |
| Power consumption (max) | 10.5 W |
| Power consumption (typical) | 4.3 W |
| Power source type | PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -30 - 50 °C |
| Weight & dimensions | |
| Weight | 390 g |
| Diameter | 10.1 cm |
| Height | 93 mm |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Compliance certificates | Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA) |
| Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | PVC |
| Maximum resolution | 3840 x 2160 pixels |
