Product Code: CCEL-085
MPN #: 02768-001

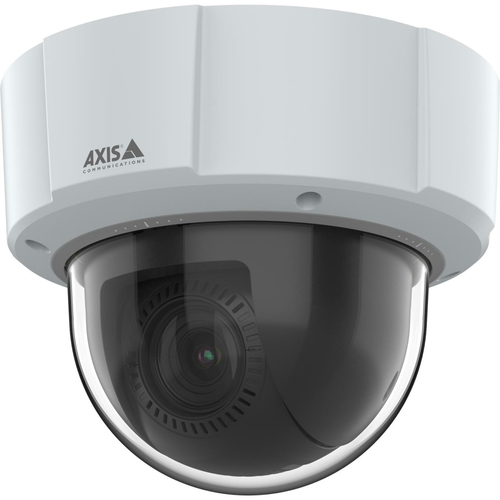

Finding a camera that works well both inside and outside can be hard. Many cameras lose detail in low light, or they cannot cover a large area without blind spots. When you miss a crucial moment, safety and peace of mind suffer. The Axis M5526-E Indoor Outdoor IP PTZ Security Camera Wired Ceiling Black White Pro solves these issues with clear 4 MP images, 10 optical zoom and a 360 pan that never leaves a gap. It gives you reliable video wherever you need it.
Imagine a single camera that watches a whole building, a parking lot, or a warehouse without missing a detail. That is what this Axis camera does. It is a PTZ (pan-tilt-zoom) unit that can swivel a full 360, tilt up to 90, and zoom in 10 times optically, so you can see a wide scene and then focus on a face or a license plate. If you need clear video day or night, this camera delivers, making it a strong answer for any security need.
Use it on a ceiling in a retail store to watch shoppers and staff. Mount it outdoors on a building wall to monitor a parking area, entrance gate or loading dock. It works in warehouses to track pallets and forklift traffic. The camera can also protect schools, hospitals or office lobbies where you need both wide coverage and the ability to zoom on a specific person or vehicle.
| Performance | |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK09 |
| International Protection (IP) code | IP66 |
| Housing material | Plastic, Polycarbonate (PC) |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/27000 - 0.2 s |
| Camera pixel size | 1.998 µm |
| Pan speed | 150 °/sec |
| Pan range | 0 - 360° |
| Tilt speed | 150 °/sec |
| Tilt angle range | 0 - 90° |
| Lens viewing angle, vertical | 35 - 3.67° |
| Lens viewing angle, horizontal | 59.1 - 6.5° |
| Minimum illumination | 0.01 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Detect distance (tele) | 938 m |
| Detect distance (wide) | 96 m |
| Identify distance (tele) | 93 m |
| Identify distance (wide) | 10 m |
| Observe distance (tele) | 373 m |
| Observe distance (wide) | 38 m |
| Recognize distance (tele) | 186 m |
| Recognize distance (wide) | 19 m |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
| Auto focus | Yes |
| Focal length range | 4.7 - 47 mm |
| Digital zoom | 12x |
| Optical zoom | 10x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Gain control type | Auto |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 60 fps |
| Supported graphics resolutions | 160 x 120, 320 x 180, 1600 x 1200 (UXGA) |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels | 4 MP |
| Maximum resolution | 2688 x 1512 pixels |
| Audio | |
| Audio detection | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, G.711, LPCM, PCM |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
| ROM capacity | 1024 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection |
| Pixel counter | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Video motion detection | Yes |
| Power | |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Power consumption (max) | 11.7 W |
| Power consumption (typical) | 4.2 W |
| Power consumption | 3.8 mA |
| Power source type | PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 15 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Weight & dimensions | |
| Weight | 1 kg |
| Height | 150 mm |
| Depth | 165 mm |
| Width | 165 mm |
| Features | |
| License plate recognition | Yes |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | PVC/BFR |
| Maximum resolution | 2688 x 1512 pixels |
