Product Code: CCEL-127
MPN #: 02914-001

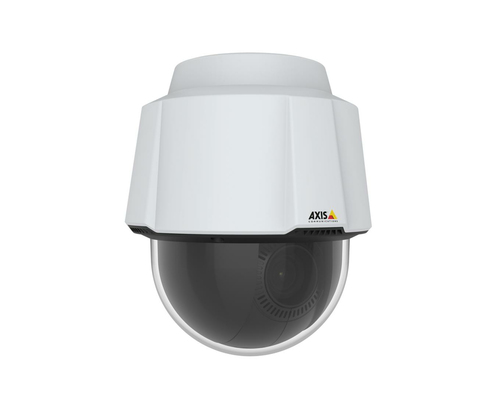

Imagine missing a break-in because your camera cannot see far enough or in low light. The Axis P5654-E Mk II 50Hz Indoor Outdoor IP Security Camera Wired Black White gives you crystal-clear 1080p video, 21 optical zoom and night vision, so you never lose detail. It solves the common problem of blind spots and poor image quality, keeping your home or business safe day and night.
This camera removes the worry of uncovered areas and fuzzy footage. When a camera cannot cover a wide zone, intruders can slip by unnoticed. The Axis PTZ camera fills that gap with a 77 field of view, auto-tracking and preset positions, delivering a steady view of every corner. It offers a simple wired connection and rugged housing, making installation easy for indoor or outdoor use.
Use it to watch a parking lot, a warehouse entrance, a school playground or a retail store. It works well on a ceiling dome where you need both pan and tilt coverage. The camera can also guard remote sites such as construction yards or gated communities because it tolerates extreme temperatures and rain. With license-plate recognition it helps traffic control and access management.
| Performance | |
| Certification | UL/cUL, UKCA, CE, KC, EAC, RCM, TAA |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Preset points | Yes |
| Auto-tracking | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/66500 - 2 s |
| Pan speed | 350 °/sec |
| Pan range | 0 - 360° |
| Tilt speed | 350 °/sec |
| Tilt angle range | 0 - 180° |
| Lens viewing angle, vertical | 43.1 - 2° |
| Lens viewing angle, horizontal | 77 - 3.6° |
| Minimum illumination | 0.01 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Detect distance (tele) | 1120 m |
| Detect distance (wide) | 57 m |
| Identify distance (tele) | 110 m |
| Identify distance (wide) | 6 m |
| Observe distance (tele) | 450 m |
| Observe distance (wide) | 23 m |
| Recognize distance (tele) | 225 m |
| Recognize distance (wide) | 11 m |
| Maximum aperture number | 4.5 |
| Minimum aperture number | 1.6 |
| Auto focus | Yes |
| Focal length range | 4 - 84.6 mm |
| Digital zoom | 12x |
| Optical zoom | 21x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Image stabilizer | Yes |
| Text caption overlay | Yes |
| Video streaming | Yes |
| Frame rate | 60 fps |
| Supported video modes | 1080p |
| Supported graphics resolutions | 320 x 180 |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Networking standards | IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
| ROM capacity | 1024 MB |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Alert notification type | |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Human detection, Moving object, Vehicle detection |
| Pixel counter | Yes |
| Security algorithms | EAP-TLS, HTTPS, TLS |
| Video motion detection | Yes |
| Power | |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 8 W |
| Power source type | PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -30 - 50 °C |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Height | 217 mm |
| Depth | 188 mm |
| Width | 188 mm |
| Features | |
| License plate recognition | Yes |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | PVC |
| Maximum resolution | 1920 x 1080 pixels |
