Dispatch Time: Next Working Day
Product Code: CCEL-321
MPN #: 02870-001

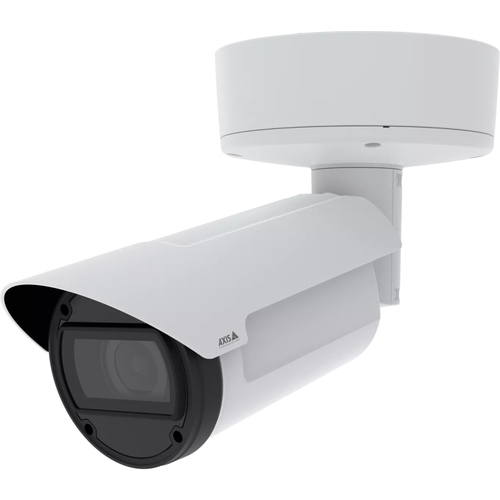

Imagine missing a critical event because your camera cannot see far enough or in low light. The Axis Q1809-LE Wired IP Security Camera Outdoor Ceiling/Wall Mount Digital PTZ gives you crystal-clear detail at long range, day or night. It is built for outdoor walls or ceilings and lets you zoom, pan and tilt to capture every angle. If you need reliable surveillance that can identify faces or license plates from hundreds of meters away, this camera solves that problem.
Many users struggle with blurry images and limited coverage, especially in large parking lots or sports venues. Poor image quality makes it hard to prove an incident or to spot suspicious activity. This camera delivers 41 MP resolution, a 3 optical zoom, and a custom tele-Canon lens that brings distant objects into sharp focus. With built-in PoE out, you can power another device without extra wiring, simplifying installation and reducing cost.
Use it to monitor a busy parking garage where you need to read license plates from far away. Install it on a stadium roof to watch crowds and capture fast-moving action. It works well on a factory perimeter to detect intruders in low light. The camera also fits retail store exteriors, providing clear images of customers and delivery trucks. Anywhere you need long-range, high-detail outdoor surveillance, this unit fits the job.
| Performance | |
| Certification | CSA, UL/cUL, CE, EAC, VCCI, RCM |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Protection features | Impact resistant |
| Housing material | Aluminium, Glass |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
| Camera | |
| Camera shutter speed | 1/15500 - 2 s |
| Camera pixel size | 2.315 µm |
| Pan range | -180 - 180° |
| Tilt angle range | 0 - 90° |
| Lens viewing angle, vertical | 49 - 25° |
| Lens viewing angle, horizontal | 90 - 44° |
| Angle of rotation | 270° |
| Minimum illumination | 0.04 lx |
| Image sensor | |
| Optical sensor size | 101.6 / 3 mm (4 / 3") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Closest focusing distance | 5 m |
| Detect distance (tele) | 2551.6 m |
| Detect distance (wide) | 853.8 m |
| Identify distance (tele) | 255.2 m |
| Identify distance (wide) | 85.4 m |
| Observe distance (tele) | 1012.6 m |
| Observe distance (wide) | 338.8 m |
| Recognize distance (tele) | 510.2 m |
| Recognize distance (wide) | 170.8 m |
| Maximum aperture number | 4 |
| Focus | Motorized |
| Focal length range | 12 - 24 mm |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
| Infra-red wavelength | 900 nm |
| LED type | IR |
| Night vision | Yes |
| Video | |
| Bit rate control | Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Mirror, Sharpness |
| Image stabilizer | Yes |
| Text caption overlay | Yes |
| Gain control type | Auto |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 800, 3840 x 2160 |
| Video compression formats | H.264, H.265 |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels | 41 MP |
| Maximum resolution | 7680 x 4320 pixels |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Sample rate | 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Network | |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd , HTTP/2, TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1AE, IEEE 802.1x |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| ROM capacity | 4096 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| Security | |
| Alert notification type | |
| Digest authentication | Yes |
| Pixel counter | Yes |
| Security algorithms | EAP-TLS, HTTPS |
| Password protection | Yes |
| Management features | |
| Remotely operated | Yes |
| Cloud-managed | Yes |
| Power | |
| Power consumption (Power over Ethernet (PoE)) | 18.9 W |
| Power consumption (max) | 35 W |
| Power consumption (typical) | 17.6 W |
| Power source type | DC, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 55 °C |
| Weight & dimensions | |
| Weight | 3.2 kg |
| Diameter | 18.3 cm |
| Height | 183 mm |
| Depth | 411 mm |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 7680 x 4320 pixels |
