Imagine a night when a hidden intruder slips past your lights, and you have no clue until its too late. The Axis Q1971-E Indoor/Outdoor Wired Bullet IP security Camera gives you eyes that see heat, not just light. It is a thermal bullet camera that works day and night, rain or shine, and it tells you exactly when something moves in the dark. If you worry about missed alarms or blurry footage, this camera solves that problem.

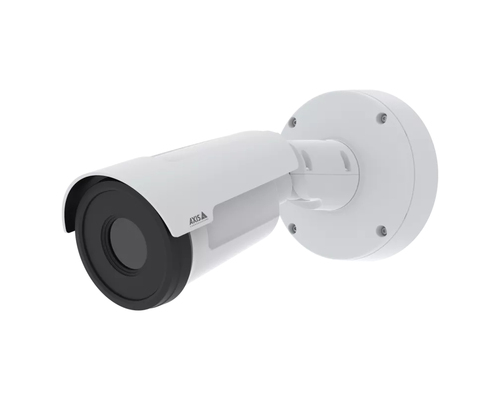

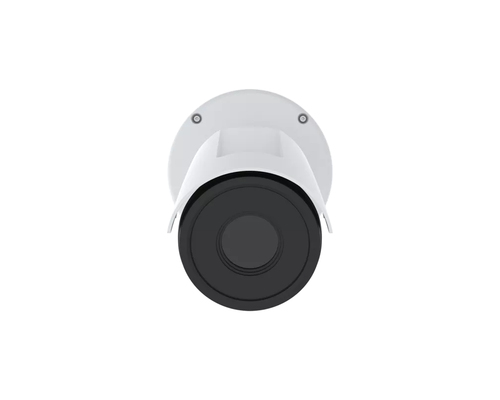

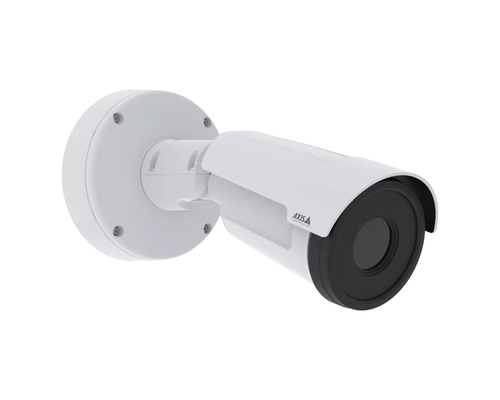

Axis Q1971-E Indoor/Outdoor Wired Bullet IP security Camera Wall Black/White
You need a camera that can detect people or vehicles even when the scene has low contrast or bad weather. Traditional video cameras often give false alarms or cannot see at night. This thermal camera from Axis removes the guesswork. It uses heat signatures to give reliable detection and visual verification 24/7, lowering false alarms and keeping your property safe. With built-in analytics like Motion Guard and Fence Guard, you get proactive alerts without extra software.
Benefits
- Detects heat sources in total darkness, so you never miss an event.
- Reduces false alarms with thermal imaging that ignores shadows and lighting changes.
- Built-in analytics send you instant alerts for motion, loitering, or fence breaches.
- Weather-proof design (IP66/67, IK10) survives rain, snow, dust and vandalism.
- Secure Edge Vault protects data and prevents unauthorized access.
Usages
Mount the camera on a warehouse wall to watch loading docks where lights are scarce. Use it on a perimeter fence of a school to detect anyone climbing over after hours. Install it at a remote construction site to monitor equipment and workers when the sun sets. It also works well at a parking garage entrance, alerting you to vehicles that stop too long or move in restricted zones. The bullet shape fits both indoor and outdoor mounts, giving you flexibility for any location.
Key Features
- Thermal microbolometer sensor with 384 288 resolution.
- Five interchangeable lenses (7 mm to 35 mm) for custom field of view.
- Electronic Image Stabilization for steady video in windy conditions.
- 30 fps video, supports H.264, H.265, HEVC and MJPEG formats.
- Two-way audio with built-in microphone and speaker ports.
- PoE (12.95 W) and DC power options for easy installation.
- Edge-to-edge I/O ports for external sirens or strobe lights.
- Axis Edge Vault hardware security with FIPS-140-2 key storage.
- IP66/67, IK10 ratings ensure impact and water resistance.
- Cloud-managed with support for IPv4/IPv6, HTTPS, TLS and many network protocols.
Specifications
| Performance |
| Thermal module |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP66, IP67 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Product colour |
Black, White |
| Mounting type |
Wall |
| Form factor |
Bullet |
| Camera |
| Camera pixel size |
17 µm |
| Lens viewing angle, vertical |
22° |
| Lens viewing angle, horizontal |
29° |
| Image sensor |
| Effective sensor resolution (thermal module) |
384 x 288 pixels |
| Number of sensors |
1 |
| Sensor type |
Microbolometer |
| Lens system |
| Closest focusing distance |
4.7 m |
| Maximum aperture number |
1 |
| Lens diameter |
1.3 cm |
| Number of lenses |
1 |
| Video |
| Bit rate control |
Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Image quality adjustment |
Brightness, Contrast, Sharpness |
| Image stabilizer |
Yes |
| Text caption overlay |
Yes |
| Gain control type |
Auto |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video formats supported |
AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution |
768 x 576 pixels |
| Audio |
| Audio detection |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio system full duplex |
Yes |
| Audio system |
2-way |
| Network |
| Streaming method |
Multicast |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards |
IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Storage |
| RAM capacity |
2048 MB |
| Flash memory |
8192 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Terminal block port |
Yes |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| Alert notification type |
E-mail |
| Digest authentication |
Yes |
| Pixel counter |
Yes |
| Privacy protection |
Yes |
| Security algorithms |
EAP-TLS, HTTPS, MSCHAPv2 |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Management features |
| Cloud-managed |
Yes |
| Power |
| Power consumption (Power over Ethernet (PoE)) |
12.95 W |
| Power consumption (max) |
12.95 W |
| Power consumption (typical) |
3.6 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-40 - 60 °C |
| Weight & dimensions |
| Weight |
1.4 kg |
| Height |
132 mm |
| Depth |
272 mm |
| Width |
132 mm |
| Supplier features |
| Manufacturer |
Axis |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Doesn't contain |
CFR, Halogen, PVC/BFR |
| Maximum resolution |
768 x 576 pixels |
