Product Code: CCEL-294
MPN #: 02603-001

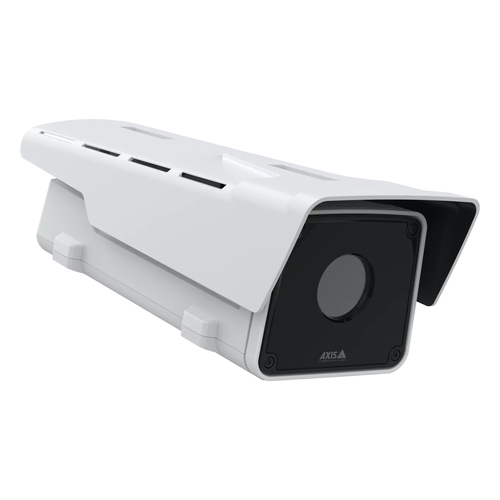

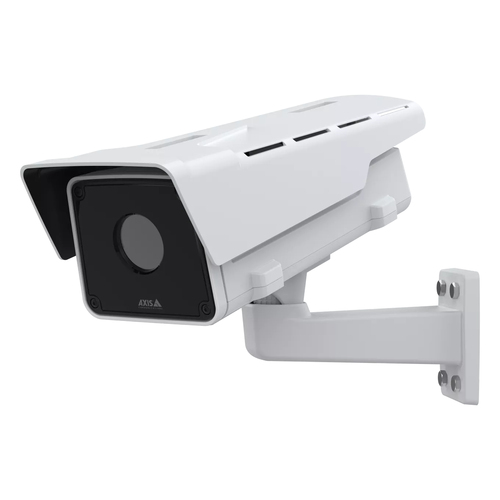

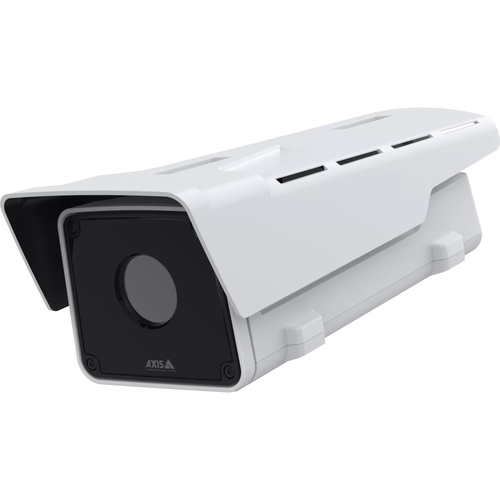

Tired of missing a break-in because darkness hides the scene? The Axis Q2112-E Wired IP Security Camera Outdoor Wall Mount 20 mK Thermal gives you clear heat images day and night. It is built for outdoor walls and uses thermal technology to see people and vehicles even in fog, smoke or total darkness. If you need reliable detection without relying on lights, this camera solves that problem.
Many businesses lose valuable time because ordinary cameras cannot tell the difference between a stray animal and an intruder when light is low. That uncertainty can lead to false alarms or missed alerts, costing money and peace of mind. Axis solves this by delivering a 20 mK thermal sensor that spots heat signatures with very low false alarms. The camera also includes built-in analytics like Motion Guard and Fence Guard, so you get instant, actionable alerts without extra software.
Use the camera to protect a warehouse entrance, a parking lot, or a perimeter fence. It works well at a construction site where dust and smoke hide movement. It can also monitor a remote oil field or a school playground after dark. Because it runs on PoE, you only need one cable for power and data, making installation fast on any outdoor wall.
| Performance | |
| Certification | CSA, UL/cUL, CE, KC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, ISO 21207 Method B , MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267 |
| Thermal sensitivity (NETD) | 20 mK |
| Preset points | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Wall |
| Form factor | Box |
| Camera | |
| Camera pixel size | 17 µm |
| Lens viewing angle, horizontal | 63° |
| Image sensor | |
| Effective sensor resolution (thermal module) | 640 x 480 pixels |
| Number of sensors | 1 |
| Sensor type | Microbolometer |
| Lens system | |
| Closest focusing distance | 2.8 m |
| Infrared spectral band | 8 - 14 µm |
| Maximum aperture number | 1.2 |
| Lens diameter | 1 cm |
| Number of lenses | 1 |
| Video | |
| Bit rate control | Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Text caption overlay | Yes |
| Gain control type | Auto |
| Video streaming | Yes |
| Frame rate | 8.3 fps |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 640 x 480 pixels |
| Audio | |
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio system full duplex | Yes |
| Network | |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, RFC 3164/5424, UDP/TCP/TLS, ZeroConf |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Storage | |
| RAM capacity | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| RS-485 ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| Pixel counter | Yes |
| Privacy protection | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP |
| Video motion detection | Yes |
| Power | |
| Power consumption (Power over Ethernet (PoE)) | 25.5 W |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 4.6 W |
| Power source type | DC, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Weight | 3.3 kg |
| Height | 150 mm |
| Depth | 404 mm |
| Width | 159 mm |
| Supplier features | |
| Manufacturer | Axis |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
| Doesn't contain | CFR, PVC/BFR |
| Maximum resolution | 640 x 480 pixels |
