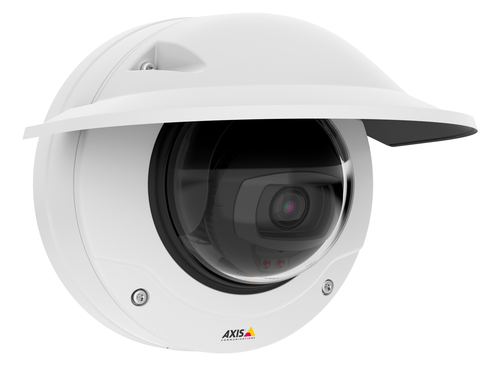

Axis Q3517-LVE 5MP indoor/outdoor IP camera with forensic WDR and Lightfinder
Axis Q3517-LVE 5MP indoor/outdoor IP camera with forensic WDR and Lightfinder
Axis Q3517-LVE 5MP indoor/outdoor IP camera with forensic WDR and Lightfinder

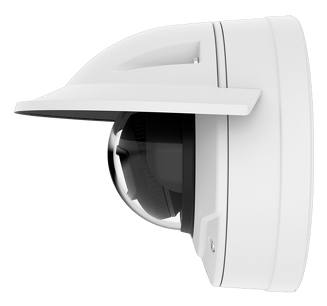

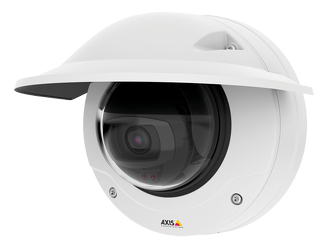

Axis Q3517-LVE dome camera with OptimizedIR night vision up to 40 meters
Axis Q3517-LVE dome camera with OptimizedIR night vision up to 40 meters
Logo

Axis Q3517-LVE Indoor/Outdoor Wired PTZ IP Security Camera Ceiling/Wall

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CCEL-271

MPN #: 01022-001

Imagine a camera that never blurs, never misses a detail, and can survive the toughest weather. The Axis Q3517-LVE Indoor/Outdoor Wired PTZ IP Security Camera Ceiling/Wall is that camera. It is a high-resolution network camera that you can mount on a ceiling or a wall and control remotely. If you worry about blind spots, low-light footage, or a camera that breaks in a storm, this device gives you clear, reliable video when you need it most.



Axis Q3517-LVE Indoor/Outdoor Wired PTZ IP Security Camera Ceiling/Wall

Many businesses and homes struggle with cameras that cannot handle bright sun and deep shadows at the same time. That problem makes it hard to see who is entering a property or what is happening in a parking lot. The Axis camera solves this by using forensic wide dynamic range, Lightfinder and OptimizedIR technology. It gives you sharp color images in daylight and clear black-and-white video at night. The camera also resists vandal attacks and extreme temperatures, so you do not have to replace it often.



Benefits
    • 5 MP resolution at full frame rate lets you read faces and license plates clearly.
    • Forensic WDR captures detail in both bright and dark areas in the same scene.
    • IP67 and IK10 ratings protect the camera from rain, dust, and strong impacts.
    • Power over Ethernet with redundancy keeps the camera running even during power cuts.
    • Built-in analytics such as Motion Guard and Fence Guard alert you instantly to movement.



Usages

You can install this camera in a retail store to watch the sales floor and the parking area. It works well for office buildings where you need to monitor entrances, hallways, and exterior perimeters. Schools and hospitals benefit from its low-light performance and vandal resistance. Outdoor sites such as warehouses, construction yards, and traffic intersections gain reliable coverage even in snow or heat. Because it can be mounted on a ceiling or a wall, you can place it wherever you need the best view.



Key Features
    • Full 30 fps video at 5 MP for smooth motion capture.
    • Zoom lens with 4.3 - 8.6 mm focal length for flexible field of view.
    • Lightfinder technology delivers color images in very low light.
    • OptimizedIR provides clear black-and-white video up to 40 m in total darkness.
    • Axis Zipstream reduces bandwidth and storage by up to 50 % while keeping detail.
    • Electronic image stabilization keeps video steady on vibrating surfaces.
    • Digital PTZ with preset points lets you scan large areas automatically.
    • Two configurable I/O ports allow external sensors and alarm integration.
    • PoE power consumption of 6.5 W makes installation simple with a single cable.
    • IP66, IP67 and NEMA 4X rated housing protects against water and dust.
    • IK10+ vandal proof housing survives strong impacts and attempted tampering.
    • Built-in microphone and speaker enable two-way audio communication.



Specifications
Performance
Certification EN 55032 Class A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC Part 15, Subpart B, Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, EN 55032 Class A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC Part 15, Subpart B, Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 22 Class A, KCC KN32 Class A, KN35, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10
Alarm input/output Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
PTZ modes Digital PTZ, Preset point
PTZ control Yes
Connectivity technology Wired
Placement supported Indoor & outdoor
Type IP security camera
Design
IK code IK10
International Protection (IP) code IP67
Protection features Vandal proof
Housing material Aluminium
Product colour White
Mounting type Ceiling/wall
Form factor Dome
Camera
Camera shutter speed 1/71 500 - 2 s
Pan range 0 - 360°
Tilt angle range -80 - 80°
Lens viewing angle, vertical 53°
Lens viewing angle, horizontal 96°
Angle of rotation 175°
Minimum illumination 0.02 lx
Image sensor
Optical sensor size 25.4 / 1.8 mm (1 / 1.8")
Sensor type CMOS
Lens system
Fixed focal length 1.5 mm
Focal length range 4.3 - 8.6 mm
Zoom capability Yes
Night vision
Infra-red wavelength 850 nm
LED type IR
Night vision distance 40 m
Night vision Yes
Video
Image quality adjustment Brightness, Colour depth, Contrast, Sharpness
Image stabilizer Yes
Frame rate 30 fps
Video compression formats H.264
Total megapixels 5 MP
Maximum resolution 3072 x 1728 pixels
Audio
Audio codecs AAC LC 8/16/32/48 kHz, G.711, G.726 ADPCM 8kHz, Opus 8/16/48 kHz
Audio output channels 1.0 channels
Audio input channels 1.0 channels
Audio system 2-way
Network
Supported network protocols IPv4/v6, HTTP, HTTPS, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Internal memory 1024 MB
Flash memory 512 MB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
HTTPS encryption Yes
IP address filtering Yes
Password protection type User
Power
Power over Ethernet (PoE) Yes
Power consumption (Power over Ethernet (PoE)) 6.5 W
Power consumption (max) 14.5 W
Power consumption (typical) 6.9 W
Power source type PoE
Operational conditions
Operating relative humidity (H-H) 10 - 100%
Storage temperature (T-T) -40 - 65 °C
Operating temperature (T-T) -50 - 60 °C
Weight & dimensions
Weight 2 kg
Diameter 18.3 cm
Height 182 mm
Supplier features
Manufacturer Axis
Packaging content
Quick installation guide Yes
Mounting brackets included Yes
Number of cameras 1
Other features
Maximum resolution 3072 x 1728 pixels
Technical details
Removable IR-cut filter Yes
