Tired of missed scans and production delays because a camera cannot read every barcode? The Balluff BAV AS-SK-00030-01 vision sensor is built to end that frustration. It reads a wide range of 2-D codes even in harsh factory conditions. If you need reliable data capture on a moving line, this sensor gives you the accuracy and durability you cannot get from a regular camera.

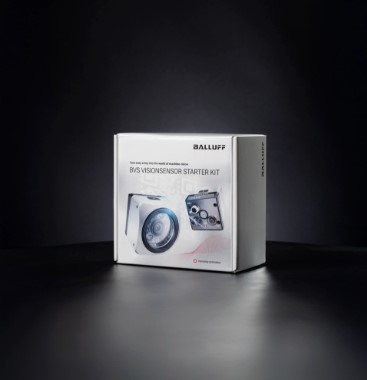

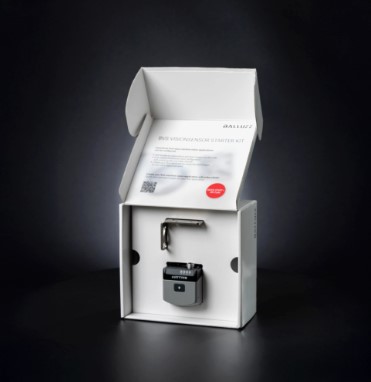

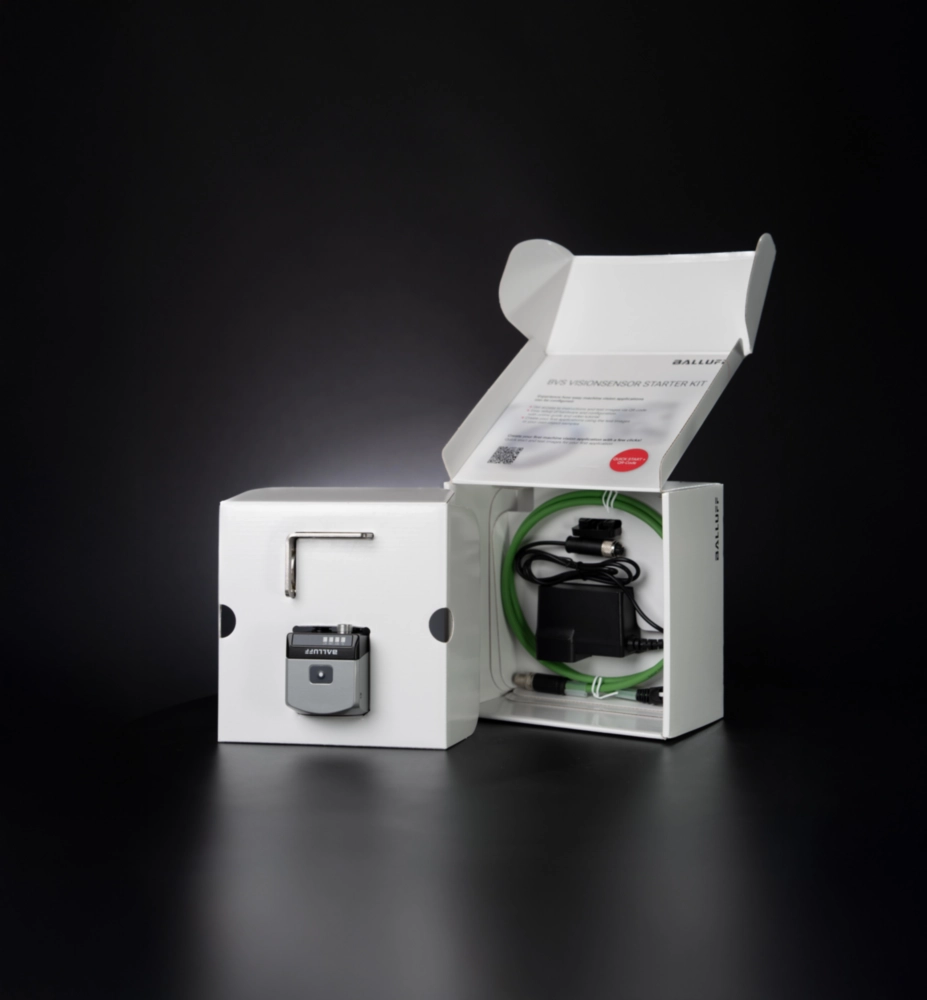

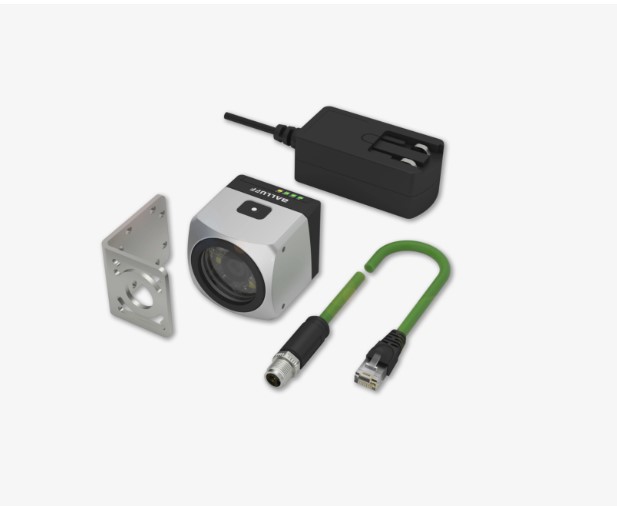

Balluff BAV AS-SK-00030-01, 2D codes, IP67 9.6 mm Focal Length, Vision Sensor
Many factories struggle with unreadable codes caused by dust, vibration, or low light. When a code is missed, the whole line can stop, costing time and money. This sensor solves the problem by combining a protected housing, powerful LED illumination, and a 1.2 MP camera that focuses from 50 mm to 305 mm. It reads Aztec, Data Matrix, QR and many other codes without manual adjustment, keeping your line running smoothly.
Key Features
- 1.2 MP resolution (1280 x 960 pixels) for clear images.
- 9.6 mm focal length with adjustable field of view.
- Supports Aztec, Data Matrix, QR, PDF 417, Micro QR and more.
- LED white and red illumination, risk group 1 per IEC 62471.
- IO-Link 1.1, TCP/UDP, Gigabit Ethernet for flexible communication.
- Digital trigger input and push-pull output for direct machine control.
- Internal temperature, humidity and vibration monitoring.
- IP67 sealed aluminum housing for dust and water protection.
- Operating voltage 18-30 VDC, 300 mA no-load current.
- MTTF of 28.3 years at 40 C ensures long life.
- Mounting with M4 screw, compact size 56 56 59 mm, weight 240 g.
- Certified CE, UKCA, cULus, FCC, WEEE for global compliance.
Specifications
| Application |
|
| Application |
Check on attendance, Verification, Brightness tool, BLOB, Edge analysis, Finder, Code tool,
Error control, Scan-Trigger
|
| Secondary features for condition monitoring |
|
| Features |
Inclination monitoring and installation aid, Internal humidity detection, Internal temperature
monitoring, Vibration monitoring
|
| General |
|
| Image resolution |
1.2 MP (1280 x 960 pixels) |
| Focal length |
9.6 mm |
| Range min. |
50 mm |
| Field of view |
30 x 30 mm ... 305 x 230 mm |
| Light emitter illumination |
LED white, LED red |
| Interface |
IO-Link 1.1, TCP/UDP, IIoT (Gigabit Ethernet) |
| Dimension |
56 x 56 x 59 mm |
| IP rating |
IP67 |
| Approval/Conformity |
CE, UKCA, cULus, FCC, WEEE |
| Functional Characteristics |
|
| 2D codes |
Aztec Code, Data Matrix ECC 200, DotCode, GS1 Aztec Code, GS1 Data Matrix, GS1
DotCode, GS1 QR Code, Micro QR Code, PDF 417, QR code
|
| Field of view max. |
305 x 230 mm |
| Field of view min. |
30 x 30 mm |
| Focal length |
9.6 mm |
| LED group per IEC 62471 |
Risk group 1 |
| Light type |
LED |
| Light type aiming device |
LED red |
| Light type illumination |
LED white, LED red |
| MTTF (40 °C) |
28.3 a |
| Interface |
|
| Digital inputs |
Trigger |
| Interface |
IO-Link 1.1, TCP/UDP, IIoT (Gigabit Ethernet) |
| Switching output |
Push-pull NV, Push-pull Overall result, Push-pull external illumination |
| Configurable by software |
Yes |
| Material |
|
| Housing material |
Aluminium, Die casting, Painted |
| Material sensing surface |
Luxacryl/2h |
| Mechanical data |
|
| Dimension |
56 x 56 x 59 mm |
| Mounting part |
Screw M4 |
| Weight |
240 g |
| Electrical connection |
|
| Connection |
M12x1-Male, 4-pin, A-coded; M12x1-Female, X-coded; M12x1-Female, 5-pin,
A-coded
|
| Polarity reversal protected |
Yes |
| Short-circuit protection |
Yes |
| Electrical data |
|
| No-load current Io max. at Ue |
300 mA |
| Operating voltage Ub |
18...30 VDC |
| Output current max. |
1.6 A (Observe voltage supply) |
| Environmental conditions |
|
| Ambient temperature |
0...55 °C |
| Shock |
30 g, 11 ms; 100 g, 6 ms |
| Vibration |
EN 60068-2-6, 10–500 Hz / 15 g / 5 h |
| IP rating |
IP67 |
| Relative humidity |
80% at ambient temperature up to 31 °C, decreasing linearly up to 50% at 40 °C |
| Storage temperature |
-25...70 °C |
