Tired of wiring errors and slow set-up times on your production line? The Balluff BAV MA-AC-00013-01, 4-way IO-Link control panel gives you a compact, reliable way to connect sensors and actuators. It solves the common problem of mismatched connectors and hard-to-diagnose faults, letting you keep your machines running without costly downtime.

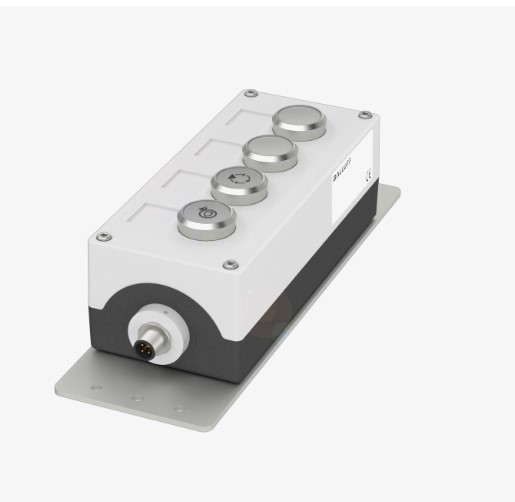

Balluff BAV MA-AC-00013-01, 4-way IO-Link control panel
Many factories struggle with complex wiring that takes hours to install and even longer to troubleshoot. When a single wire is wrong, the whole line can stop. This control panel removes that risk by offering four standardized IO-Link connections that are easy to plug in and verify. The result is faster commissioning, fewer errors, and a smoother production flow.
Key Features
- Four IO-Link ports - two male (M12x1, 4-pin) and two female (M12x1, 8-pin).
- IP66 housing protects against dust and water jets.
- Plastic enclosure keeps weight low while staying robust.
- IO-Link 1.1 interface ensures compatibility with the latest devices.
- Mounting plate included for easy installation on panels or frames.
- CE and WEEE certifications for compliance.
- High mean time to failure (167 years at 40 C) for dependable operation.
Specifications
| Basic features |
|
| Approval/Conformity |
CE, WEEE |
| Scope of delivery |
Mounting plate, IO-Link control panel |
| Electrical connection |
|
| Connection 1 |
M12x1-Male, 4-pin |
| Connection 2 |
M12x1-Female, 8-pin |
| Electrical data |
|
| Operating voltage Ub |
18...30 VDC |
| Environmental conditions |
|
| Ambient temperature |
-5...55 °C |
| IP rating |
IP66 |
| Storage temperature |
-25...70 °C |
| Functional safety |
|
| MTTF (40 °C) |
167 a |
| IO-Link |
|
| IO-Link Profile IDs |
N/A |
| Interface |
|
| Interface |
IO-Link 1.1 |
| Material |
|
| Housing material |
Plastic |
| Mechanical data |
|
| Dimension |
85 × 64 × 199 mm |
