Balluff BES0068 Inductive proximity Sensor

When a metal part moves close to a machine, you need to know the exact moment it arrives. Missing that signal can cause a jam, waste material, or even damage equipment. This problem matters because every second of downtime costs money and slows production. The Balluff BES0068 Inductive proximity switches and proximity sensors give you a reliable, fast signal the moment metal enters its 4 mm range, keeping your line running smoothly.

Balluff BES0068 Inductive proximity switches and proximity sensors with Balluff

You need a sensor that works every day without fuss. The Balluff BES0068 is a compact inductive switch that detects metal objects without touching them. It is built for harsh factories, so you can trust it in dusty, wet or hot places. If you have missed a part detection before, this sensor will stop that from happening and keep your process safe.

Benefits

• Fast 2500 Hz response keeps up with high-speed lines.
• IP68 rating protects against water and dust, reducing maintenance.
• PNP normally open output works with most PLCs, so wiring is easy.
• Nickel-free brass housing prevents corrosion in tough environments.
• Wide voltage range (10-30 VDC) lets you match existing power supplies.

Key Features

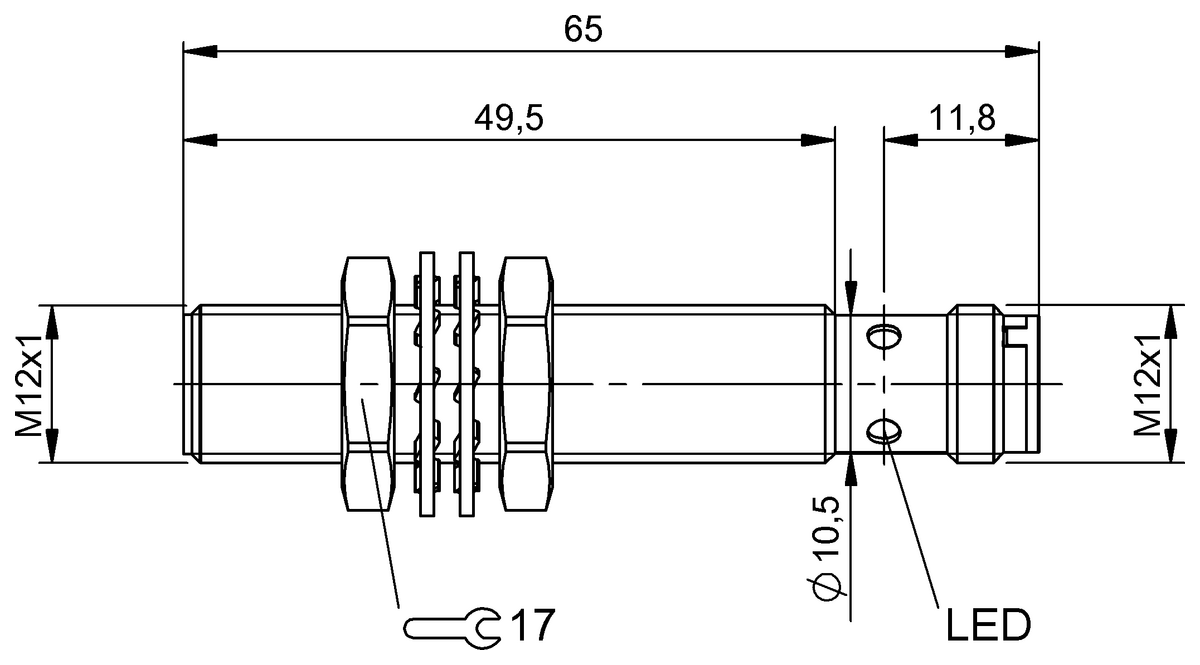

• 12 65 mm compact size.
• M12 1 flush-mount housing.
• 4 mm detection distance for close-range sensing.
• PNP, Normally Open (NO) switching output.
• 2500 Hz switching frequency for rapid detection.
• Brass housing with nickel-free coating.
• PBT sensing surface for durable metal detection.
• M12 1 male 3-pin connector for secure wiring.
• Operating voltage 10-30 VDC.
• Temperature range -25 C to +70 C.
• IP68 protection against water and dust.
• CE, UKCA, cULus, WEEE approvals for global compliance.

Specifications
