Many factories need to read RFID tags quickly and without errors, but older readers often miss tags or stop working in harsh environments. When a tag is not read, the production line can slow down, inventory counts become wrong, and costs rise. The Balluff BIS V-6108-048-C007 Multi frequency RFID Processor Unit solves this by giving you a reliable, fast, and rugged reader that works with many tag types and keeps your data accurate.

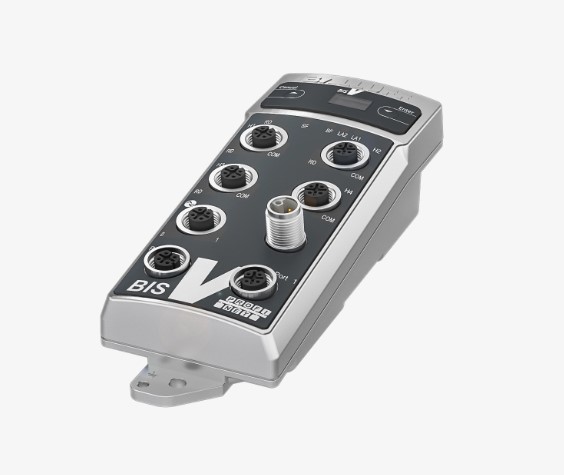

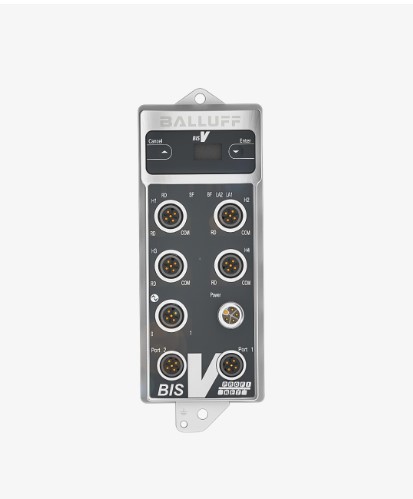

Balluff BIS V-6108-048-C007 Multi frequency RFID Processor Unit with Balluff
You need a device that can read RFID tags on the shop floor without missing a beat. This processor unit from Balluff is built for industrial use. It connects easily to your control system and shows clear LED status lights so you always know if it is ready or if a fault occurs. If you struggle with unreliable tag reads, this unit gives you the stability and speed you need to keep operations moving.
Key Features
- CE, UKCA, cULus, WEEE approved.
- System failure LED red, ready LED green.
- Two M12x1-Female 4-pin ports for COM 1 and COM 2.
- IO-Link master port with 5-pin M12 connector.
- 24 VDC supply, max 2 A current.
- IP65 rating with connector for indoor use.
- Operating temperature 0 60 C, altitude up to 2000 m.
- Profinet I/O (IRT) interface with 2-port switch.
- IO-Link version 1.1 for smart sensor communication.
Specifications
| Basic features |
|
| Approval/Conformity |
CE, UKCA, cULus, WEEE |
| Principle of operation |
Processor unit |
| Display/Operation |
|
| Function indicator |
System Failure Status, LED red; BUS Failure Status, LED red; Ready, LED green;
Link/Activity Port2, LED green; Link/Activity Port1, LED green
|
| Electrical connection |
|
| Connection (COM 1) |
Port 1: M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) |
Port 2: M12x1-Female, 4-pin, D-coded |
| Connection (IO-Link/Service) |
M12x1-Female, 5-pin, A-coded |
| Connection (supply voltage IN) |
M12x1-Male, 5-pin |
| Connection slots |
H1: M12x1-Female, 5-pin; H2: M12x1-Female, 5-pin; H3: M12x1-Female, 5-pin;
H4: M12x1-Female, 5-pin
|
| Connector port 01, note |
Type for all VU/VM/VL-3… with connector, 4-pin |
| Electrical data |
|
| Current consumption max. at 24 V DC |
2 A |
| Current consumption max. at 24 V DC without load |
150 mA |
| IO-Link function |
Master (max. 500 mA) |
| Nominal voltage |
24 VDC |
| Operating voltage Ub |
24 V DC SELV/PELV |
| Residual ripple max. |
10 % |
| Environmental conditions |
|
| Altitude max. |
2000 m |
| Ambient temperature |
0...60 °C |
| Area of operation |
Indoor |
| Contamination scale |
2 |
| Continuous shock load |
Yes |
| Shock |
EN 60068-2-27, yes |
| Free fall |
EN 60068-2-32, yes |
| Vibration |
EN 60068-2-6, yes |
| IP rating |
IP65, with connector |
| Relative humidity |
0…90 %, non-condensing |
| Functional safety |
|
| MTTF (40 °C) |
33.1 a |
| Interface |
|
| Auxiliary interfaces, number |
1 × IO-Link |
| IO-Link version |
1.1 |
| Interface 01 |
Profinet |
| Interface 01, protocol version |
I/O (IRT) |
| Interface, note |
2 port Switch |
| Material |
|
| Housing material |
Zinc, Die casting |
| Mechanical data |
|
| Application weight |
750.00 g |
| Dimension |
48 × 62 × 172 mm |
