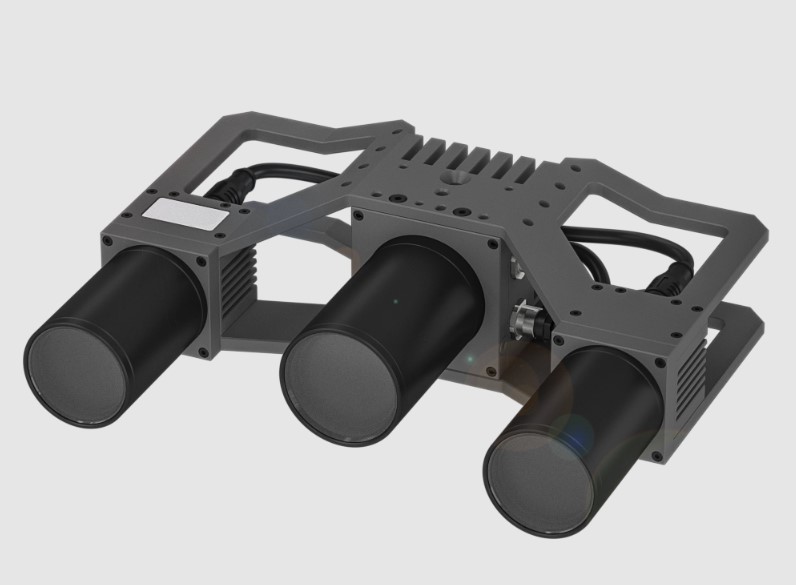

Balluff BVS 3D-RV1-0124AG-1111ZZ-001, 3D Stereo Camera with 210 mm baseline

The biggest hurdle in modern automation is getting reliable 3-D data fast. When depth information is wrong, robots miss parts, lines stop, and waste piles up. This problem hurts productivity and raises costs for any factory that moves objects automatically. The Balluff BVS 3D-RV1-0124AG-1111ZZ-001, 3D Stereo Camera with 210 mm baseline solves the issue by delivering accurate depth maps in real time, so you can keep your line running smoothly.

Balluff BVS 3D-RV1-0124AG-1111ZZ-001, 3D Stereo Camera with 210 mm baseline with Balluff

Imagine a camera that sees the world like a human eye, but with exact measurements. This Balluff stereo camera captures two high-resolution images 210 mm apart and turns them into precise 3-D points. It is built for bin picking, object detection, and gripping point calculation in harsh factory environments. If your current sensor gives fuzzy depth or drops frames, this device gives you the clarity you need to avoid errors and downtime.

Key Features

• 12 MP (4112 x 3008) monochrome sensor.
• 16 mm focal length lens.
• 210 mm baseline for strong depth perception.
• 1.1-inch CMOS global-shutter chip.
• Painted aluminium housing, 262 x 82 x 204 mm size.
• Weight 1.64 kg, easy to mount.
• Gigabit Ethernet (GigE Vision 2.0) connection.
• M12x1-Male 8-pin (A-coded) and M12x1-Female 8-pin (X-coded) connectors.
• Operating voltage 22-26 VDC, temperature 0-45 C.
• IP54 rating, CE, UKCA, WEEE certified.

Specifications
