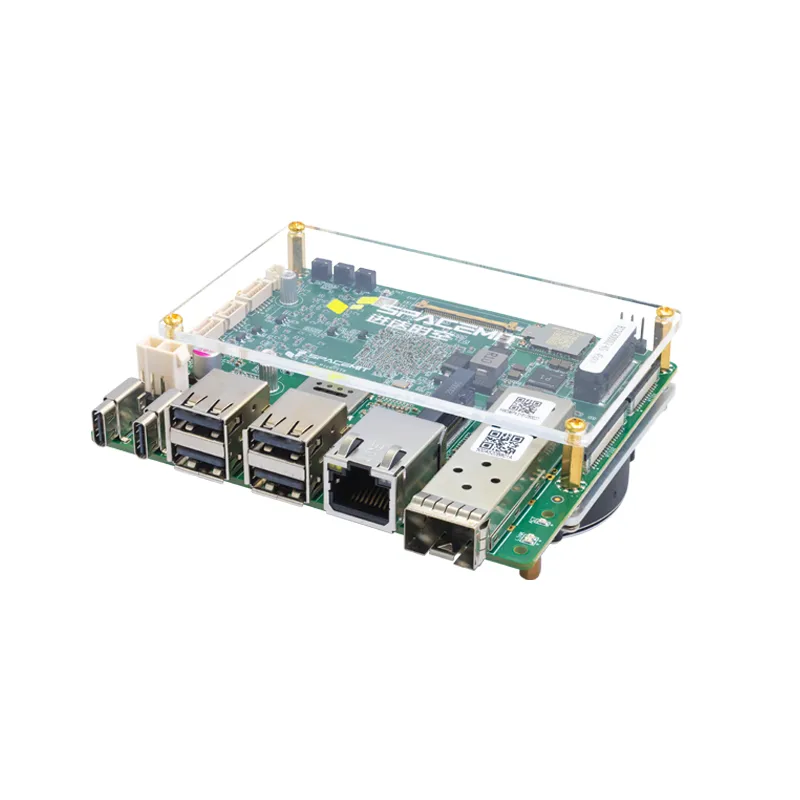

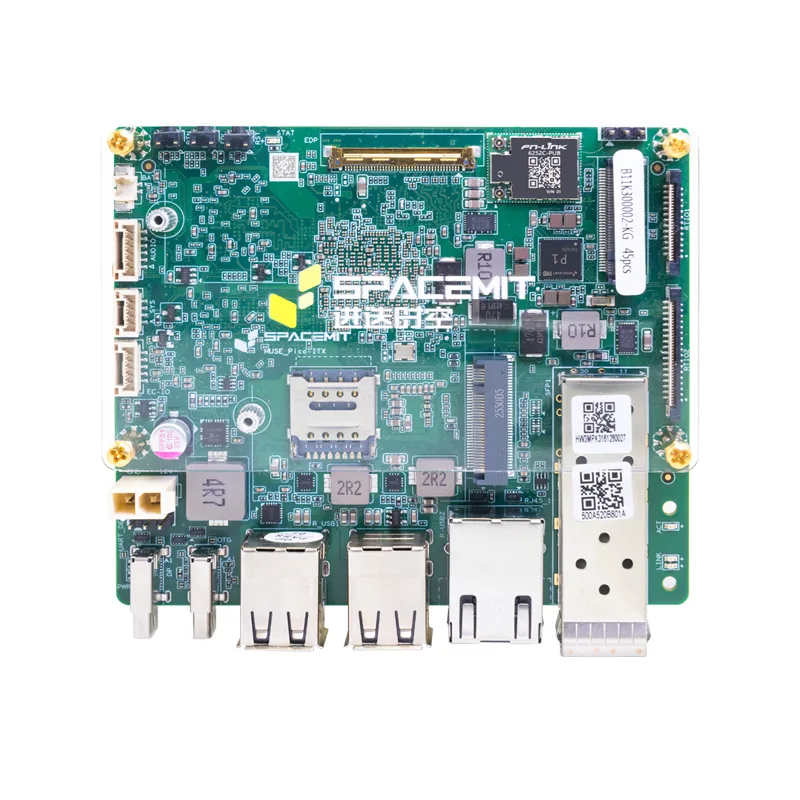

Banana Pi K3 Pico-ITX SpacemiT 60TOPS AI Performance WiFi6 Single Board Computer
The Banana Pi K3 Pico-ITX is a compact AI-focused single-board computer powered by the SpacemiT K3 processor. It combines 2.4GHz processing, up to 60 TOPS AI performance, LPDDR5 memory, UFS storage, and high-speed networking in a Pico-ITX form factor. The board is designed for edge AI, embedded computing, industrial control, robotics, and on-device AI applications.
The SpacemiT K3 platform provides RVA23-compliant RISC-V computing with support for vector extensions and full virtualization. The board supports 16GB and 32GB LPDDR5 memory options, UFS 2.2 storage, and M.2 expansion for NVMe SSDs. Its combination of general-purpose processing and dedicated AI computing makes it suitable for workloads that require local data processing and AI acceleration.
For display and multimedia applications, the K3 Pico-ITX provides USB Type-C DisplayPort output up to 4K at 60Hz and a 40-pin eDP interface supporting up to 2.5K at 90Hz. It also includes onboard audio, multiple USB ports, and flexible expansion interfaces for integrating additional hardware and peripherals.
The board provides 1GbE Ethernet and a 10GbE SFP+ optical network interface for high-speed wired connectivity. Wi-Fi 6 and Bluetooth 5.2 are available through the onboard wireless design, while the M.2 B-Key interface supports additional expansion cards. Real-time expansion is available through an FPC connector supporting interfaces such as Ethernet, CAN-FD, SPI, I²C, and UART.
With its 100 × 86 mm Pico-ITX form factor, the Banana Pi K3 Pico-ITX is suitable for compact embedded systems, edge AI terminals, machine vision, robotics, industrial automation, AIoT gateways, SD-WAN edge devices, and RISC-V development. The board supports Bianbu 3.0 and Linux distributions including Ubuntu 26.04, OpenHarmony, OpenKylin, Deepin, and Fedora, providing a flexible software environment for development and deployment.
Key features
-
SpacemiT K3 processor with 2.4GHz RISC-V computing
-
Up to 60 TOPS AI performance for edge AI workloads
-
RVA23-compliant architecture with vector extension support
-
16GB/32GB LPDDR5 6400 MT/s memory options
-
UFS 2.2 storage with M.2 NVMe SSD expansion
-
10GbE SFP+ and Gigabit Ethernet networking
-
Wi-Fi 6 and Bluetooth 5.2 wireless connectivity
-
Compact 100 × 86 mm Pico-ITX single-board design
SPECIFICATION
| Processor |
|
| Processor |
SpacemiT K3, 8 cores @2.4 GHz, 60 TOPS AI performance, RVA23 compliant, supports
IME vector extensions and full virtualization
|
| Display |
|
| Display |
DP Type-C: up to 4K (3840×2160) @ 60 Hz |
| eDP |
40-pin eDP: up to 2.5K (2560×1600) @ 90 Hz |
| Memory |
|
| Memory |
8GB, Dual-channel 2×32bit LPDDR5 6400 MT/s, 16 GB / 32 GB options |
| Local Storage |
|
| Local Storage |
128GB, UFS 2.2, 256GB option |
| Storage Expansion |
|
| Storage Expansion |
M.2 M-Key (PCIe Gen3 ×4), supports 2280 NVMe SSD |
| HS Expansion |
M.2 B-Key (PCIe Gen3 ×2 + USB), supports 2242/3042 cards |
| Real-Time Expansion |
|
| Real-Time Expansion |
FPC connector for EtherCAT, 5× CAN-FD, SPI, I²C, UART, etc. |
| Wireless |
|
| Wireless |
Onboard Wi-Fi 6 + BT 5.2, dual-band, dual-antenna, 802.11 a/b/g/n/ac/ax compliant |
| Wired Network |
|
| Wired Network |
1× RJ45 Ethernet, 10/100/1000 Mbps adaptive |
| Optical Network |
|
| Optical Network |
10 GbE SFP+ port, supports 10G BASE-R / BASE-X, QinQ, MSI-X, WOL, and clustering |
| Audio |
Onboard Codec, internal audio input/output |
| USB |
2× USB 3.2 Gen1 Type-C (1 full-featured, one OTG); 4× USB 2.0 Type-A Host |
| Debug |
UART, JTAG, and 3 side buttons for power, reset, and firmware update |
| System Management |
Onboard EC controller for power, thermal, and system status; includes I²C/UART/GPIO expansion |
| Form Factor |
100 × 86 mm, Pico-ITX Plus single-board computer, approx. size of a 2.5" drive |
| OS |
Pre-installed Bianbu 3.0; supports Ubuntu 26.04, OpenHarmony 6.0, OpenKylin, Deepin, Fedora, etc. |
| Power Input |
Dual Type-C USB-PD (65 W) or ATX 2-pin @ 7 A |
| ESD Protection |
Board: ±4 kV (contact), ±8 kV (air); System: ±6 kV (contact), ±12 kV (air) |
| Reliability |
Compliant with CCC, CE, FCC; operating temp: -20°C ~ 70°C (consumer) / -40°C ~ 85°C (industrial) |
| Clock |
Onboard RTC with battery interface, supports G3 state |
| Structure |

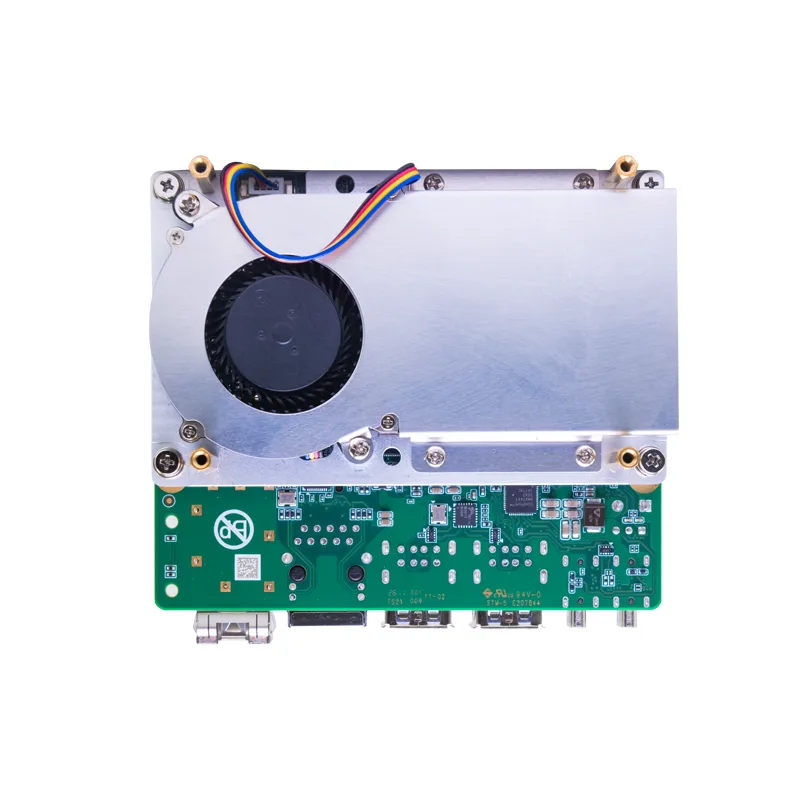

Optional single-board or fan-cooled heatsink assembly; optional full-metal industrial chassis |
| Structure Expansion |
Optional real-time board, touchscreen, terminal blocks |
