Imagine a busy factory line where a single hand slip can cause a costly shutdown. The Banner SLLCP23-1050-B16 Safety Light Curtain 1050mm Type 4 SIL3 IP67 is a reliable safety barrier that watches over your equipment. It detects any intrusion across a 1050 mm opening and stops the machine instantly. Without a fast, dependable sensor you risk injury, downtime, and expensive repairs.

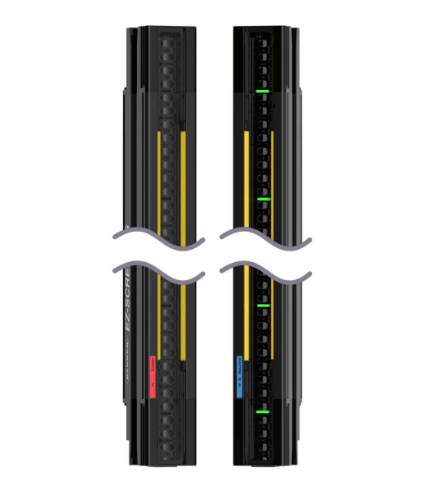

Banner SLLCP23-1050-B16 Safety Light Curtain 1050mm Type 4 SIL3 IP67
Many plants rely on old mechanical guards that are hard to adjust and often miss small objects. This creates a safety gap that can lead to injuries and non-compliance with safety standards. The Banner safety light curtain fills that gap with a non-contact, high-resolution beam that meets Type 4 SIL 3 requirements. Its 23 mm hand-detection resolution and 17.5 ms response time give you a clear, fast way to protect workers while keeping production moving.
Benefits
- Immediate machine stop when a hand breaks the beam, preventing injury.
- Meets strict SIL3 safety standards, helping you pass audits.
- Low profile design fits tight spaces without interfering with workflow.
- Easy wiring with removable disconnect connector saves installation time.
- Durable aluminum housing resists shock, vibration, and harsh weather.
Key Features
- 1050 mm defined area height for wide coverage.
- 23 mm resolution for reliable hand detection.
- 0.1 - 12 m operating distance for flexible mounting.
- 17.5 ms response time for fast reaction.
- 24 V DC supply, 147 mA typical current.
- IP67 rating protects against water and dust.
- Black anodized aluminum housing for corrosion resistance.
- Removable disconnect connector for simple maintenance.
- Supports cascade and end-to-end sensing for larger systems.
- Trip output provides clear stop signal to control system.
Specifications
| Part Number |
SLLCP23-1050-B16 |
| Item Status |
RELEASED |
| System Type |
Emitter/Receiver Pair |
| Defined Area Height |
1050 mm |
| Resolution |
23 mm (Hand Detection) |
| Operating Distance |
0.1 - 12 m |
| Max Operating Range |
>8 - <=20 m |
| Safety Level |
Type 4 |
| PL Rating |
Ple |
| SIL Rating |
SIL3; CL3 |
| Response Time |
17.5 ms |
| Recovery Time |
74 / 249 |
| Supply Voltage |
24 V dc |
| Supply Current |
147 mA Typical |
| OSSD Rating |
24 V dc at 0.5 A each |
| IP Rating |
IP65, IP67 |
| Operating Temperature |
-20 to +55 deg. C; RH 95% |
| Dimensions (WxD) |
36 x 45 mm |
| Overall Length |
1053 mm |
| Primary Housing Material |
Aluminum |
| Housing Finish |
Black Anodized |
| Connector Type |
Removable Disconnect |
| Low Profile |
Yes |
| Fixed Blanking |
Yes |
| Reduced Resolution |
No |
| Scan Code |
Selectable |
| Cascade |
Yes |
| End-to-End Sensing |
Yes |
| Trip/Latch Output |
Trip |
| Fault Output |
Yes |
| Auxiliary Output |
No |
| External Monitoring |
1 Channel |
| Shock/Vibration |
10g (6000 cycles) / 10-55 Hz |
