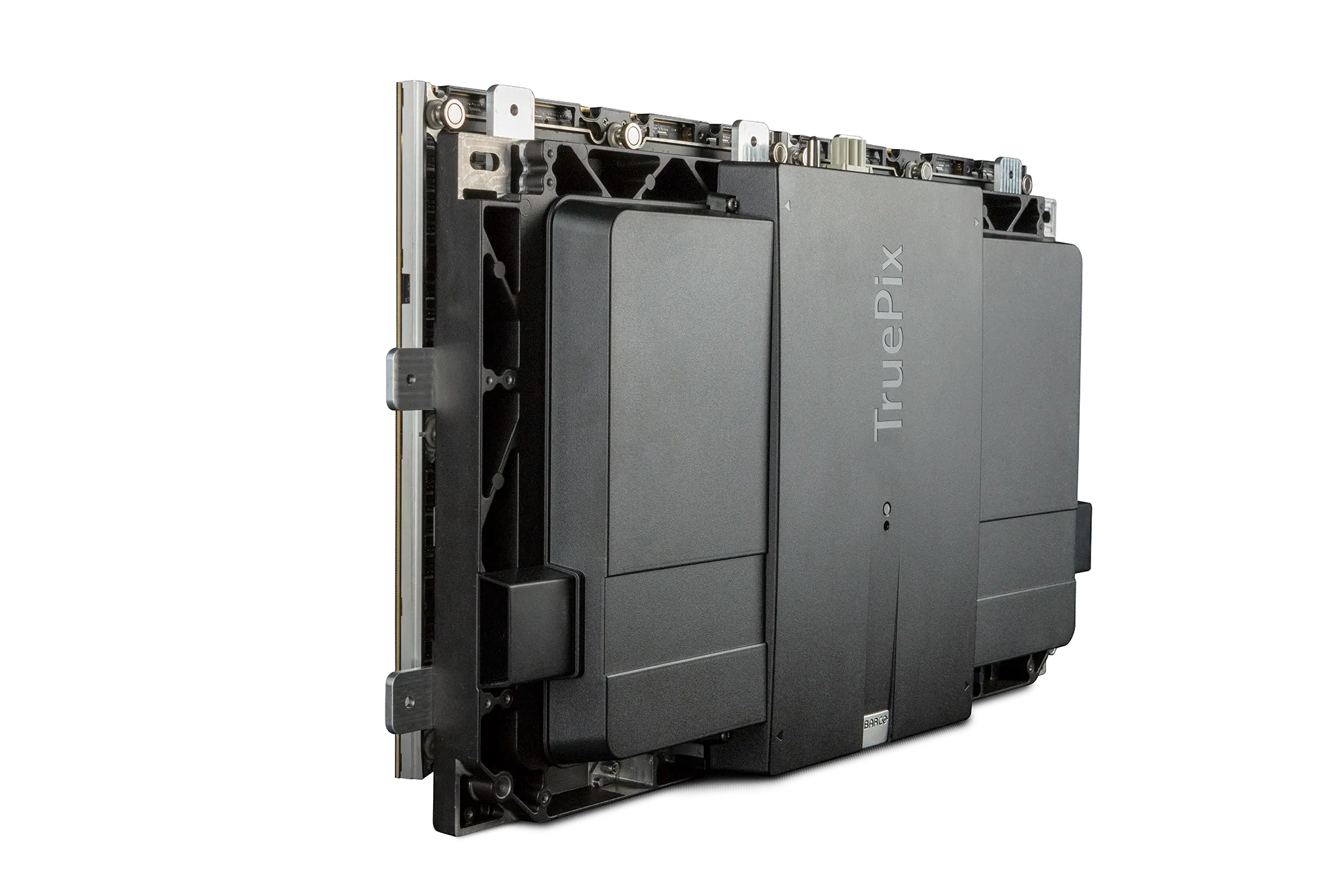

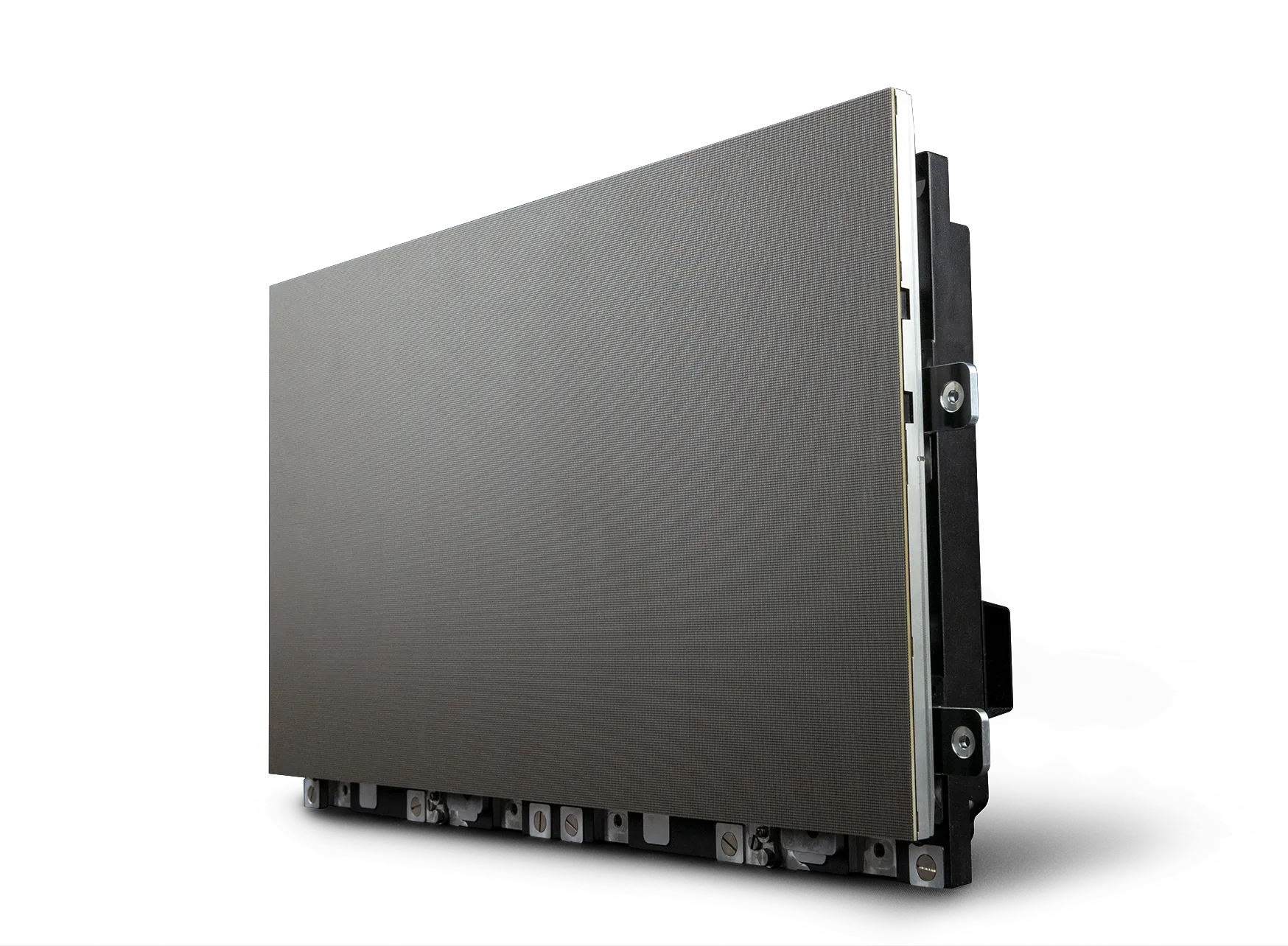

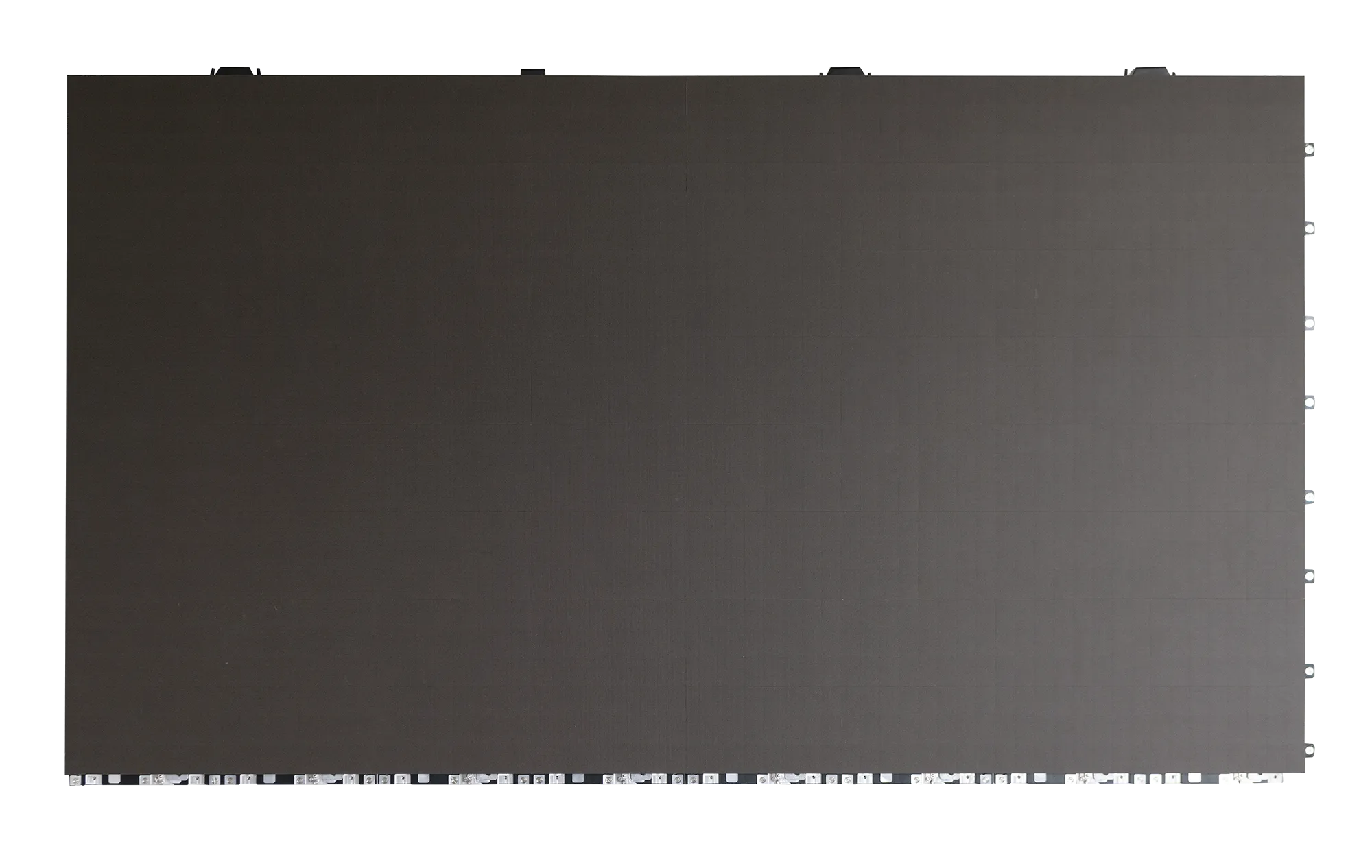

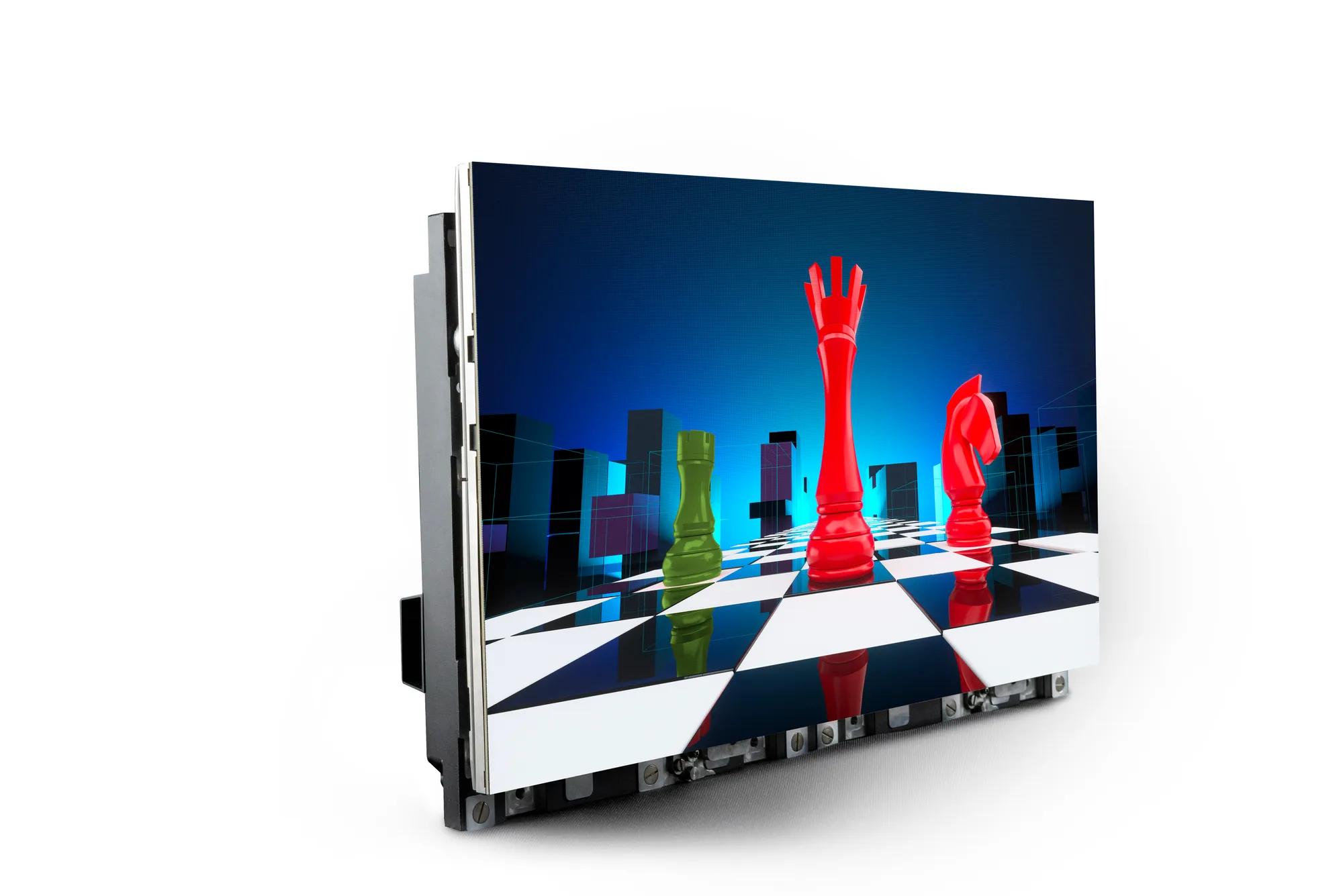

TruePix TP1.2-I is Barco’s new flagship indoor high-resolution LED platform. The 27.5” inch tiles, with a 16:9 aspect ratio, have a pixel pitch of only 1.2 mm. TruePix is designed for control room, corporate and broadcast visualization applications and supports both environments exposed to ambient light and controlled lighting environments.
High brightness, low power consumption
The TP-I range benefits from the flip chip technology, making the individual LEDs more efficient. The result is higher brightness (over 1000 nit) at a lower power consumption. This further reduces the TCO and the ecological footprint - which was already low for the complete TruePix range compared to the competition.
Truly seamless outcomes
TruePix brings content to life as intended and ensures predictable, truly seamless outcomes, by combining smart engineering and Infinipix™ Gen2, the next generation of Infinipix™. Smooth and efficient operations are guaranteed 24/7, next to full peace of mind.
Barco TruePix’ smart engineering introduces a unique mechanical concept for risk-free and precise installations, eliminating visual distortion. This unmatched seamlessness and flatness are achieved through guided module placement and self-leveling mounts. The next generation of Barco’s proprietary Infinipix™ Gen2 guarantees full image integrity at any brightness level, together with superb color accuracy. It flexibly and automatically supports any content need while reducing eye fatigue.
Peace of mind at any time
Smooth and efficient operations are guaranteed 24/7 through uninterrupted data flows. Users can reduce the carbon footprint by using the EcoPower standby mode. Up to 10 years of dedicated service and support (ensuring a uniform viewing experience) to allow for peace of mind during the entire product lifetime.
Specifications
| Pixel Pitch |
1.27 mm |
| Technology |
Flip chip |
| Pixel per Module |
480x270 (HxV) |
| Aspect Ratio |
16:9 |
| Dimensions (WxHxD) |
609.92x343.08x94mm / 24.01"x13.5"x3.70" |
| LED Lifetime |
100,000h (video - 50% brightness) |
| Brightness |
>1800 nit |
| Peak Brightness |
>2300 nit |
| Internal Processing |
24 bit |
| Color Depth |
16 bit (281 trillion colors) |
| Shaders |
No |
| Control |
Infinipix™ Gen2 |
| Refresh Rate @60Hz |
7680 Hz |
| 3D |
3D supported |
| Frame Rate |
24 - 240 Hz |
| Horizontal Viewing Angle |
160° +/- 5° |
| Vertical Viewing Angle |
160° +/- 5° |
| Brightness Uniformity |
>98% |
| Dimming |
0-100% |
| Power Consumption |
378 W/m² (max) 79 W/Tile - Standard mode
581 W/m² (max) 122 W/Tile - High mode
164 W/m² 34 W/Tile (typ); <10 W/m² (standby) |
| Heat Dissipation |
1289 BTU/h/m² (max) - Standard mode
1981 BTU/h/m² (max) - High mode
560 BTU/h/m² (typ) |
| Heat Dissipation Front/Back |
54% / 46% |
| Operation Power Voltage |
AC power: 100-240V 50/60Hz
DC power:
Input: 36-55Vdc 16A (max.)
Output: 36-55Vdc 10.72A/36V (max.) or 12.55A/55V (max.) |
| Operational Humidity |
10 - 80% |
| Operational Temperature |
-10°C to +40°C / 14°F to 104°F |
| Storage Temperature |
-20°C to +60℃ / -4°F to 140° F |
| Storage Humidity |
10 - 85% |
| Redundancy |
Power: Optional; Data: Standard Inter-tile redundancy, Embedded signal loop redundancy, Optional N + N redundancy |
| HDR |
HLG / HDR10 supported |
| Concave Curvature |
Up to 5° standard curved tile (7m radius); Up to 5° curved modular tile (3,5m radius) |
| Convex Curvature |
Up to 3° standard curved tile (12m radius) |
| Ceiling Configurations Supported |
Yes |
| Serviceability |
Full front & full back service; Modular curved tile - Full front & full back service (PSU only back access) |
| Cable Management |
No external cabling |
| Installation |
Self-leveling with surface tolerance compensation |
| Module Replacement |
Automated parallel motorized extraction |
| Module Placement |
Guided module placement |
| Ergonomics |
SteadyView™ driver algorithm to reduce eye fatigue |
| Certifications |
CE, UL, FCC class A, RoHS, WEEE, REACH, CCC, RCM, TÜV Rheinland certification for eye comfort |
